| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B6140 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Steel | Warranty: | 1 Year |
|---|---|---|---|
| Overall Weight: | 1.2 Kg | Other Names: | Air Isolator Shock |
| Pressure Ability: | 0.2-0.8 MPa | Box Dimensions: | 16*16*8cm |
| Brand: | Neutral | Firestone: | W01-M58-6140 |
| Firestone Style: | 16 | ||
| High Light: | W01-M58-6140 Firestone Air Spring,Airmount Isolator Firestone Air Spring,G1/4 Air Inlet Firestone Air Spring |
||

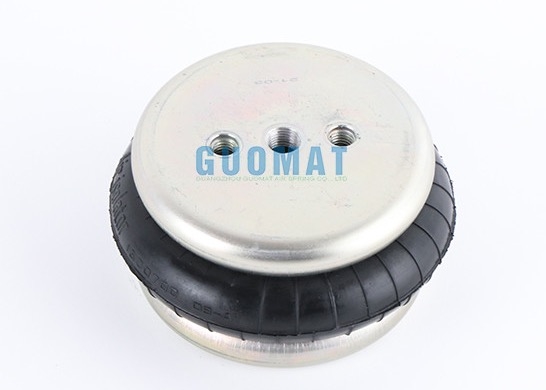

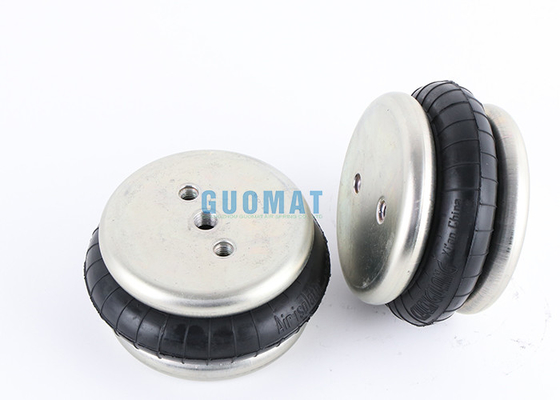

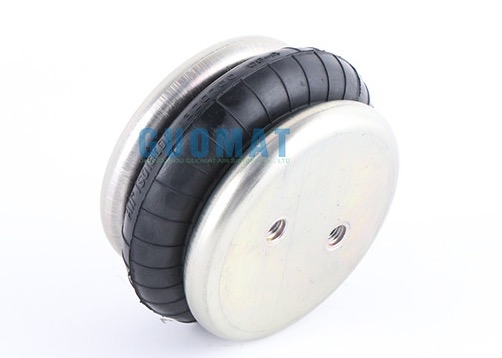

W01-M58-6140 Firestone Air Spring Airmount Isolator Style 16 With G1/4 Air Inlet
OEM Original Equipment Manufacturer:
| GUOMAT Part Number:1B6140 | Contitech Part Number: FS50-5 | Firestone Part Number: W01-M58-6140 |
| Firestone Style 16 | Contitech Part Number: FS 50-5 | Firestone Part Number: W01 M58 6140 |
| Firestone Part Number: WO1-M58-6140 | Contitech Part Number: FS50 5 | Firestone Part Number: W01M586140 |
| Firestone Part Number: WO1 M58 6140 | Continental Part Number: FS50-5 | Firestone Part Number: W01-M58-6996 |
| Firestone Part Number: WO1M586140 | Continental Part Number: FS 50-5 | Firestone Part Number: W01 M586996 |
| Firestone Part Number: WO1-M58-6996 | Continental Part Number: FS50 5 | Firestone Part Number: W01M586996 |
| Firestone Part Number: WO1 M586996 | Contitech Part Number: FS50-5 G1/4 M10 | Firestone Part Number: W01-M58-0010 |
| Firestone Part Number: WO1M586996 | Contitech Part Number: FS 50-5 G1/4 M10 | Firestone Part Number: W01 M58 0010 |
| Firestone Part Number: WO1-M58-0010 | Contitech Part Number: FS50 5 G1/4 M10 | Firestone Part Number: W01M580010 |
| Firestone Part Number: WO1 M58 0010 | Continental Part Number: FS50-5 G1/4 M10 | Continental Part Number: FS50 5 G1/4 M10 |
| Firestone Part Number: WO1M580010 | Continental Part Number: FS 50-5 G1/4 M10 |
|
| 1B6140 Technical Parameters | |
| Top Cover Plate Diameter | 114 mm |
| Bottom Cover Plate Diameter | 114 mm |
| Screw Center Distance | 44.5 mm |
| Distance Gas Hole Between Nut | 22.25 |
| Gas Hole | G1/4 |
| Screw (Nut) Tooth | 2pcsXM10X1.5 |
| Rubber Bellows MAX Diameter | 145mm |
| The Stroke | 50-88 mm |
Maximum Diameter @ 100 PSIG (inches)
6
Maximum Height (inches)
3.3
Maximum travel (inches)
1.4
Minimum Usable Height (Inches)
1.9
Force @ 80PSI at 1 inch (lb) stroke
930
Force @ 80PSI (lbs) at max stroke
580
Material
2-layer standard wire
| 1B6140 Air Spring Technical data | |
| Min. pressure | 0 bar |
| Return force to min. height | ≤ 250 N |
| Overall weight with clamped plates | 1.2 kg |
| 1B6140 Air Spring Vibration isolation - dynamic characteristic values | |||||||
| Design height H: recommended 90mm, minimum 70mm | |||||||
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force (Load) [KN] | 1.7 | 2.3 | 2.8 | 3.4 | 3.8 | 4.4 | 0.5 |
| Spring rate [N/cm] | 760 | 990 | 1220 | 1480 | 1610 | 1820 | |
| Natural frequency [Hz] | 3.5 | 3.3 | 3.3 | 3.3 | 3.2 | 3.2 | |
| Pneumatic application - static characteristic values | |||||||
| Force F [kN] | |||||||
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Height H [mm] 60 | 2.6 | 3.5 | 4.3 | 5.2 | 6.1 | 6.9 | 0.3 |
| 70 | 2.3 | 3.2 | 3.9 | 4.7 | 5.4 | 6.2 | 0.4 |
| 80 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.3 | 0.5 |
| 90 | 1.7 | 2.2 | 2.8 | 3.4 | 3.9 | 4.4 | 0.5 |
| 100 | 1.2 | 1.6 | 2 | 2.5 | 3 | 3.4 | 0.6 |
This 1B6140 Industrial Air Spring can be used for:
Such as:
Blower and Motor,
Control Panel,
Conveyor End Stop,
Mountain/Trail Bike,
Delicate Electronic Equipment
and Vibrating Screen.
