Place of Origin: | GuangDong, China |
Certification: | ISO/TS16949:2009 |
Model Number: | 1B 120-9 |
Minimum Order Quantity: | 6PCS |
---|---|
Price: | $49.9-59.9/pc |
Packaging Details: | Strong Carton Box Or As Customers Need |
Delivery Time: | 2-8 work days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1000pcs/week |
Brand Name: | GUOMAT | Product Name: | Suspension Air Spring |
---|---|---|---|
Material: | Natural Rubber/ Metal | Warranty: | 1 Year |
MOQ: | 1 Pieces | Color: | Black |
Type: | Industrial Air Spring | ||
High Light: | W01-M58-6165 Single Convoluted Air Spring,Industrial Single Convoluted Air Spring |

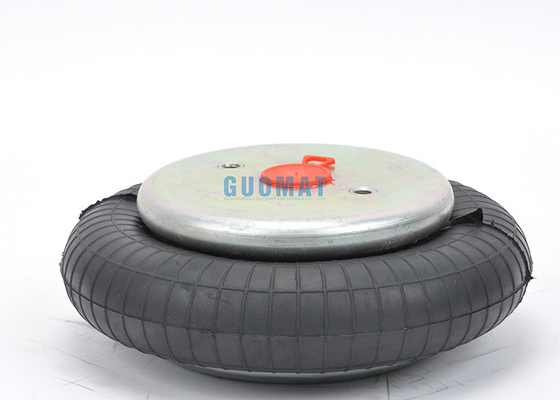

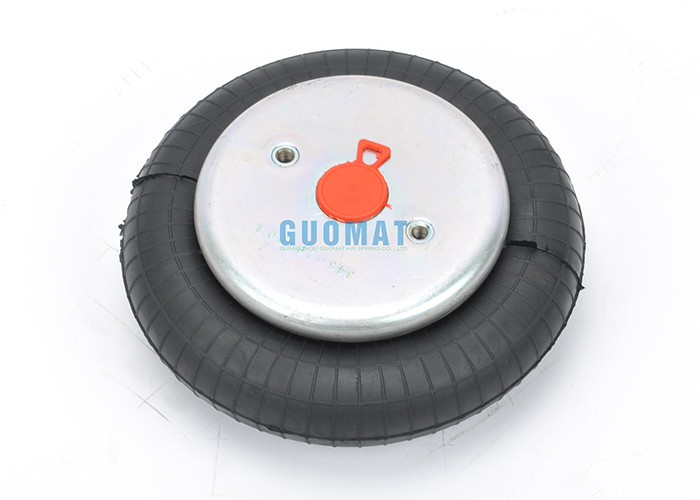

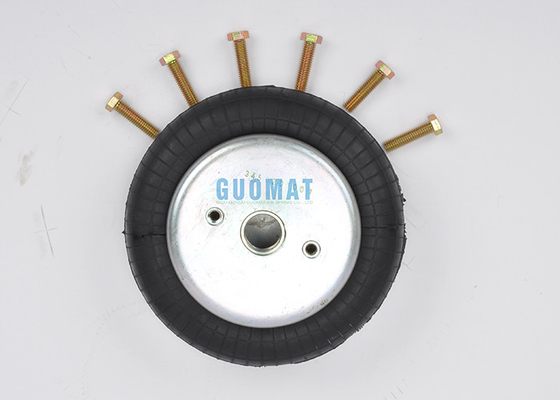

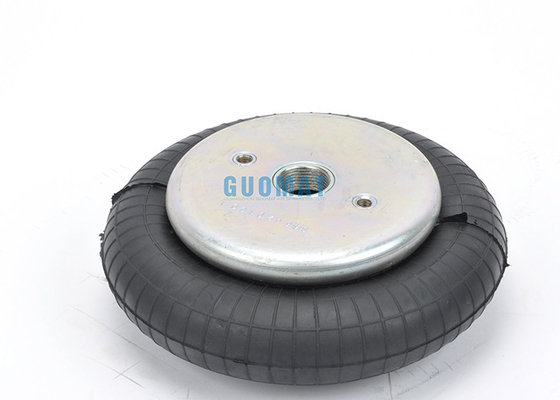

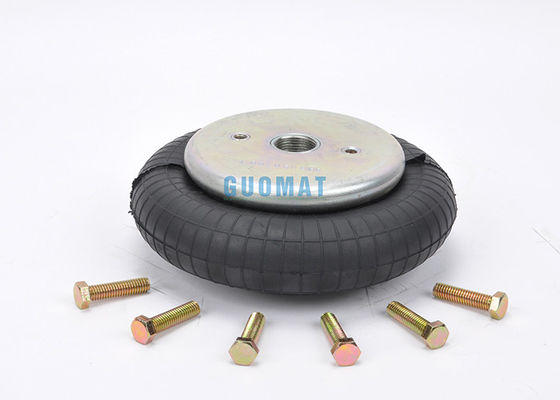

Single Convoluted Air Spring W01-M58-6165 Firestone Industrial Bellows
Product Description
Material | Rubber + Steel | Place of Origin | Guangdong, China |
Brand Name | GUOMAT | MQQ | 1 Pcs |
Model Number | 1B 120-9 | Warranty | 1 year |
Plate Dia | 135mm | Max Dia. | 215mm |
Firestone | W01-M58-6165 | Contitech | FS 120-9 |
Dunlop(FR) | 8”x1 S08101 | Bosch | 822419003 |
Festo | EB-215-80 | Norgren | PM/31081(8x1) |
Weforma | WBE 300-E1 | Airtech | 140293 |
Airtech | 111003 | Airtech | 1B-190FB |
Megatech | 1S120-9 3/4 M8 |

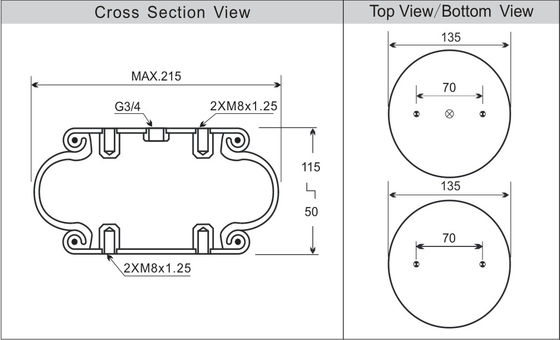

Product data view
Functions
Air Spring
An air spring is a rubber and fabric bladder that holds air pressure to support a load and isolate passengers and cargo from the shock of motion caused by road irregularities. As the air pressure increases, the air spring can support more load while the spring rate increases. The larger the air spring, the greater the maximum load it can support.
Air Suspension
Air Suspension is a type of automotive suspension that uses air springs instead of conventional steelsprings. Computer operated vents on the air springs, suspension sensors, and an onboard air compressor allow the system to maintain ride height and vary the suspension's ride characteristics.
