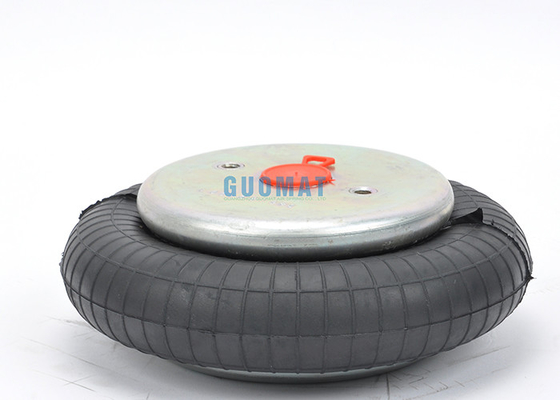

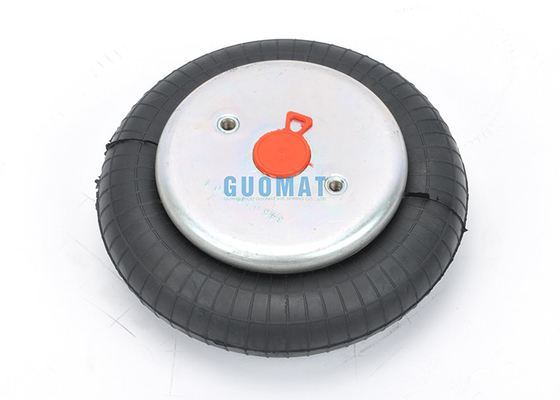

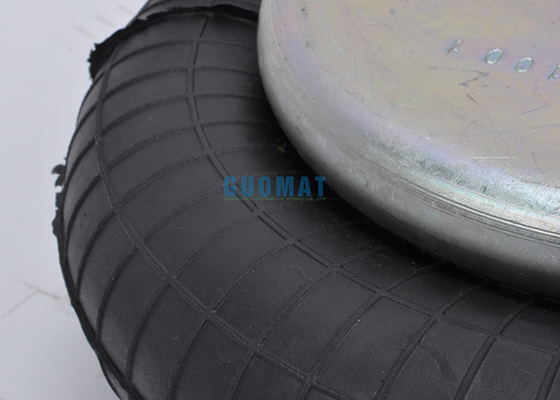

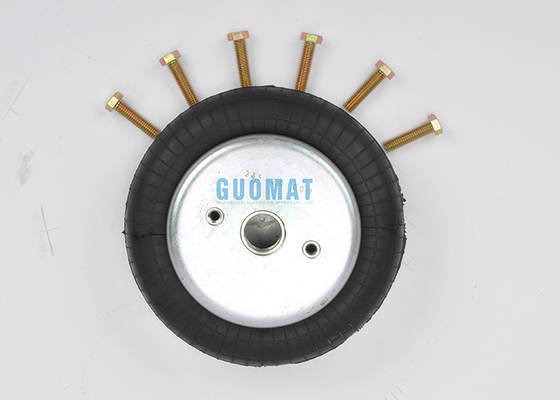

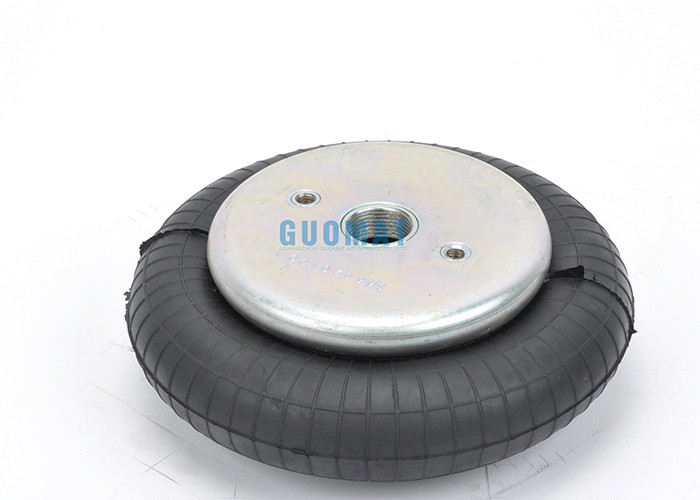

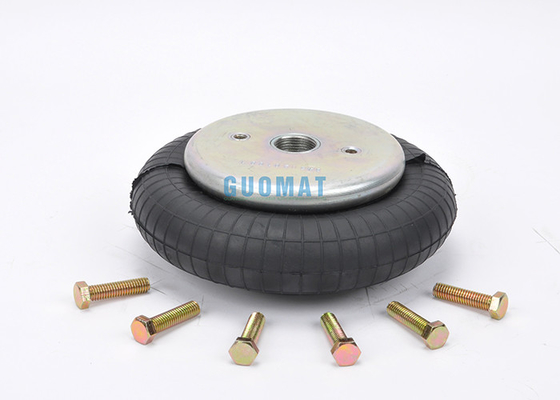

W01-M58-6166 Suspension Air Spring Single Convoluted Air Bags For 8"X1 S08100

Name: W01-M58-6166 Suspension Air Spring Single Convoluted Air Bags For 8"X1 S08100
Brand: GUOMAT
SKU: 1B 120-9
Price: 49.9 USD
Availability: InStock
Rating: 4.8 (123 reviews)

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B 120-9

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Air Spring, Air Bellow, Air Bags, Air Suspension	Material:	Natural Rubber/ Metal
Warranty:	12 Months	Operation:	Gas-filled
MOQ:	1 Pieces	Color:	Black
Style:	Single Convoluted Air Spring	Quality:	100% Tested
High Light:	W01-M58-6166 Suspension Air Spring , Single Convoluted Suspension Air Spring

Firestone Suspension Air Spring W01-M58-6166/Single Convoluted Air Bags For 8"x1 S08100

Product Description

Material	Rubber + Steel	Place of Origin	Guangdong, China
Brand Name	GUOMAT	MQQ	1 Pcs
Model Number	1B 120-9	Warranty	1 year
Plate Dia	135mm	Max Dia.	215mm

Product data view

W01-M58-6166 Suspension Air Spring Single Convoluted Air Bags For 8"X1 S08100 0

Air Inlet G1/4:

Firestone	W01-M58-6166
Contitech	FS 120-9
Dunlop(FR)	8’’x1 S08100
Bosch	822419008
Weforma	WBE 300-E2

Air Inlet G3/4:

Firestone	W01-M58-6165
Contitech	FS 120-9
Dunlop(FR)	8’’x1 S08101
Bosch	822419003
Festo	EB-215-80
Norgren	PM/31081(8x1)
Weforma	WBE 300-E1
Airtech	140293/111003/1B-190FB
Megatech	1S120-9 3/4 M8

The air spring is an auto parts component that uses the reaction force of the compressed air inside the rubber airbag as the elastic restoring force.

Air springs can be divided into single, double and multi-curve air springs according to the number of rubber airbags.

Air springs have the following characteristics

The air spring has nonlinear characteristics, and its characteristic curve can be designed into an ideal shape.
The air spring is light in weight, small in internal friction, and has a good shock absorption and noise reduction effect for high frequency vibration.
The stiffness and load-bearing capacity of the air spring can be adjusted by adjusting the internal pressure of the air bag.
Air Spring can be easily installed and used.
Since the medium used in the air spring is mainly air, it is easy to implement active control.
Increasing the total volume of the air spring can reduce the natural frequency of the vibration isolation system, which is the unique advantage of the air spring

W01-M58-6166 Suspension Air Spring Single Convoluted Air Bags For 8"X1 S08100 1
