| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B 120-9 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber | Rubber Type: | Natural Rubber |
|---|---|---|---|
| Warranty: | 1 Year | Operation: | Gas-filled |
| MOQ: | 1 Pieces | Style: | Single Convoluted Air Spring |
| Quality: | 100% Tested | Phoenix: | SP 1 B 07 |
| High Light: | Natural Rubber Industrial Air Spring,Phoenix SP 1B07 Industrial Air Spring |
||

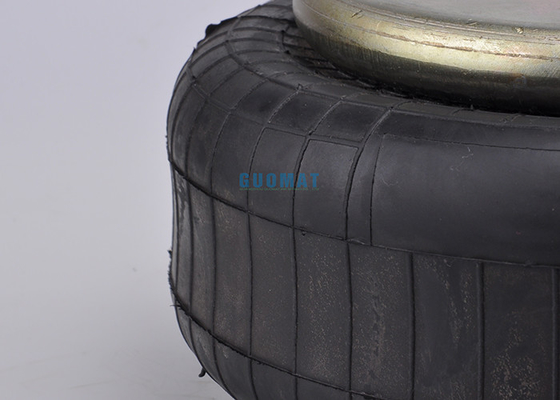

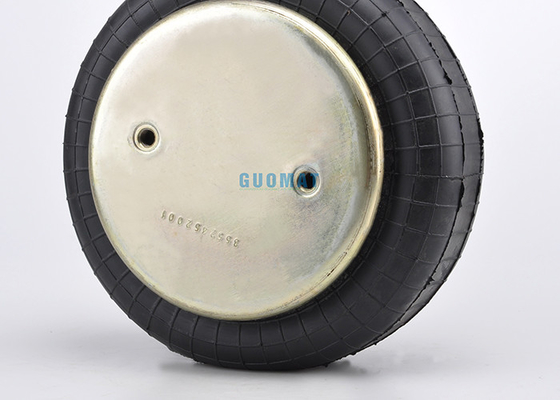

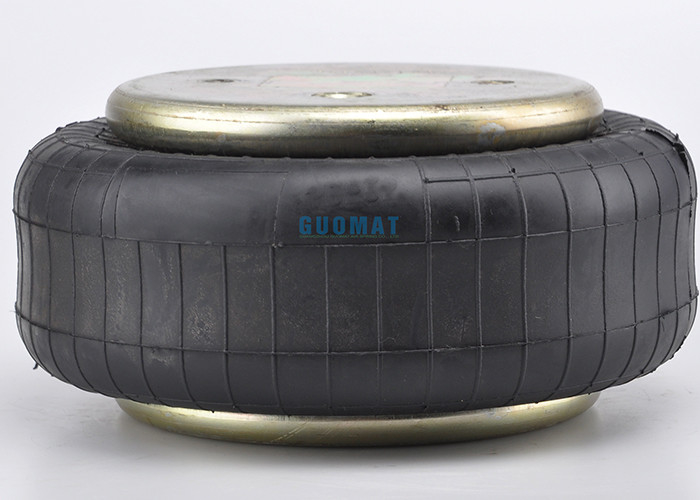

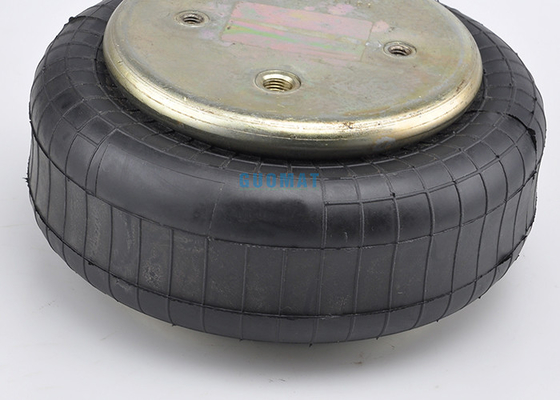

Industrial Bellows Air Spring Phoenix SP 1B07 Air Bag Boot Industrial Air Suspension
OEM No.
Phoenix :SP 1B07
1B 120-9
Product Parameters
Top Cover Plate Dia.:135mm
Bottom Cover Plate Dia:135mm
Screw Center Distance:53mm
Distance Gas Hole Between Nuts:26mm
Gas Hole Type:G1/4
Screw(Nut)Tooth:2 X M8X1.25
Rubber Bellows Max Dia.:MAX.215
The Stroke:50~115mm
The Development Of Air Spring And Its Application In Industrial Equipment
Air springs were born in the middle of the 19th century and were early used for shock absorption of mechanical equipment. But because of its many advantages, it has been more widely used in the fields of modern road and rail transportation vehicles and industrial machinery.
Air springs are widely used in industrial machinery for vibration isolation of equipment, such as presses, air compressors, centrifuges, vibration conveyors, control hammers, foundry machinery and textile machinery, optical and laser instruments, integrated circuits, ultra-precision machine tools, etc. on mechanical equipment and precision testing equipment. Air springs can be used in a variety of mechanical devices to cushion and dampen, control movement and boost pressure. Compared with the cylinder or other elastic parts with the same function, the air spring has a simple structure, a large shock absorption effect, does not require complex parameter calculation and structural design, and does not have the problem of seal leakage. Easy to use and maintain, and long service life.
We Proudly Offer the Highest Quality Replacement Air Springs that Exceed OEM Requirements.
| Part NO. | Contitech | Firestone | Phoenix | Goodyear | Air Inlet |
| 6165 | FS 120-9 | W01-M58-6165 | G3/4 | ||
| 6166 | FS 120-9 | W01-M58-6166 | G1/4 | ||
| 7731 | W01-358-771 | 1/4 NPTF | |||
| 6374 | FS 200-10 | W01-M58-6374 | SP1B12 | G3/4 | |
| FS 70-7 | FS 70-7 | SP1B05 | G1/4 | ||
| 1B9-202 |
1B9-202 578913201 |
1/4-18NPTF | |||
| 7008 | FS330-11 474 | W01-358-7008 | 1B12-300/313 | 1/4NPTF | |
| 7009 | FS 330-11 468 | W01-358-7009 |
1B12-301 578913301 |
1/4NPTF | |
| 9009 | 1-800-27-9009 |
579-913-532 1B 8-1 |
1/4NPT | ||
| 7451 | W01-358-7451 | 1/4NPTF | |||
| 6926 |
FD 200-19 504 161299 |
W01-358-6926 | 1/4NPTF | ||
| FD 200-19 |
FD 200-19 2682 045000 |
G3/4 | |||
| 6884 | FD 200-19 724 | W01-358-6884 | |||
| 6890 | FD200-19539 | W01-358-6890/20 |
2B9-606 578923211 |
||
| 6897 |
FD200-19 505 161300 |
W01-358-6897 |
2B9-229/228 578923202 556238325 |
1/4 NPT 3/4-16UNF |
|
| 6902 | FD200-19 310 | W01-358-6902 | 2B9-201 | 1/4 NPTF | |
| 6905 | FD 200-19 315 | W01-358-6905 | 2B9-206 | 1/4 NPTF | |
| 6910 | FD 200-19 320 | W01-358-6910 |
2B9-200 2B9-202 2B9-216 578423202 |
1/4 NPTF | |
| 6935 | FD200-19 499 |
W01-358-6935 W01-358-6856 |
2B9-201 | 1/4-18NPTF | |
| 6940 |
FD 200-19 450 161296 |
W01-358-6940 |
2B9-230 578923202 |
||
| 6941 |
FD 200-19 448 161295 |
W01-358-6941 |
2B9-265 2B9-280 578923202 578923206 |
||
| 7788 | FD 200-19 510 | W01-358-7788 |
2B9-245 578923202 |
||
| 7795 | FD 200-22 542 | W01-358-7795 |
2B10-226 578923250 |
||
| 7894 | FD 200-19 P04 1/4 M10 | W01-M58-7894 | 2B9-287 | G1/4 | |
| 6905 | FD 200-19 315 | W01-358-6905 |
2B9-206 2B9-209 578923200 578923202 |
Specification
Long lasting service on almost all tryck and trailer air suspension.
Absorb road shock to help tractors and rigs last longer.
Cut down on vibration and driver fatigue.
Long trouble free service,constant leve; hauling,quite cushioned ride.
Our advantages
1.A wide range of products
2.Accept OEM order
3.Affordable, safe and efficient logistics services
4.Flexible payment
5.Guaranteed warranty
