Suspension Air Springs ManufacturerW01-M58-6374 For Air Vibration Industrial

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B 200-10

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Spring Material:	Rubber Steel	Brand:	GUOMAT Or Neutral
Warranty:	12 Months	Shock Absorber Type:	Gas-filled
Spring Type:	Air Spring Suspension	Packing:	Neutral Packing
Quality:	100% Tested	Sample:	Available
Highlight:	Industrial Air Springs , W01-M58-6374 Air Springs , Vibration Industrial Air Springs

Suspension Air Springs ManufacturerW01-M58-6374 For Air Vibration Industrial

Product Information

Part number	1B 200-10
Working temperature	-40°C bis +70°C
Failure testing	≥3 millions
OEM Original Equipment Manufacturer
Firestone	W01-M58-6374
Contitech	FS 200-10
Phoenix	SP 1B 12
Dunlop(FR)	9”1/4x1 S09101
Bosch	822419004
Festo	EB-250-85
Norgren	PM/31091(81/4x1)

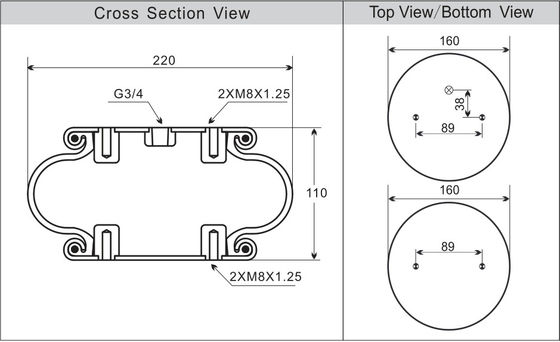

Product Parameters

Top Cover Plate Dia	160mm
Bottom Cover Plate Dia	160mm
Screw Center Distance	89mm
Distance Gas Hole Between Nuts	38mm
Gas Hole Type	G3/4
Screw(Nut)Tooth	2xM8x1.25
Rubber Bellows Max Dia	220mm
The Stroke	110mm

Better Plate

Thicker Bead,Better Durability And Strength Cr3+ White Zinc Electroplating Coating,Long Lasting Corrosion Resistance(240h)

Higher Safety Bellow

Specially Formulated NR Rubber Compound For Enhanced Ozone And Temperature Resistance,Burst Pressure 300+Psi,Fatigue 3

Million+Times.

Security

It Is Fully Tested To Ensure A Proper Fit And Performance

Payment&Shipping

PAYMENT:

T/T,Western Union,L/C,Paypal

SHIPPING:

Transportation by DHL,UPS,EMS,Fedex,Air freight,Sea freight.

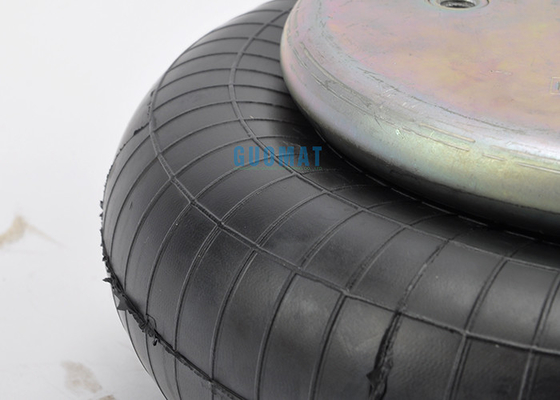

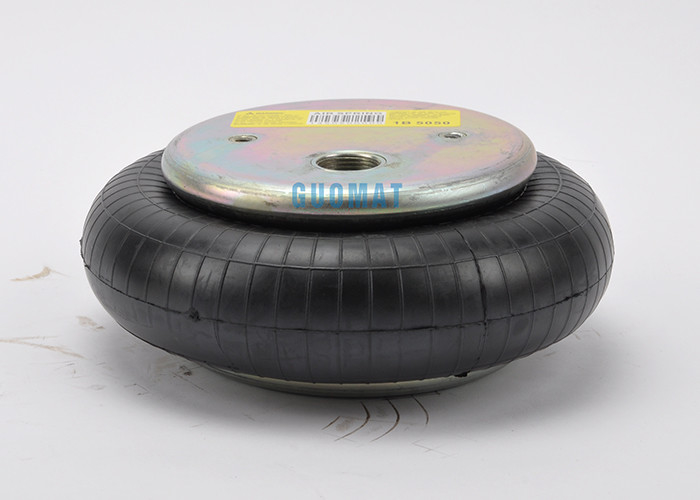

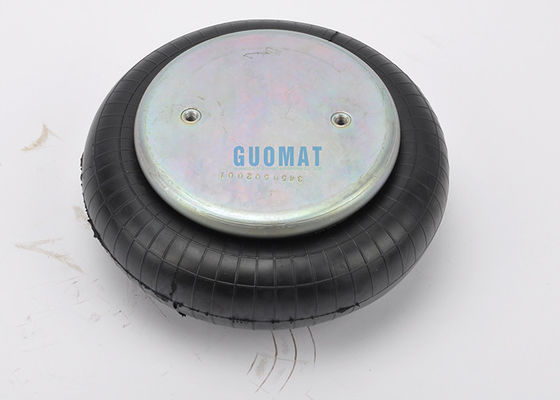

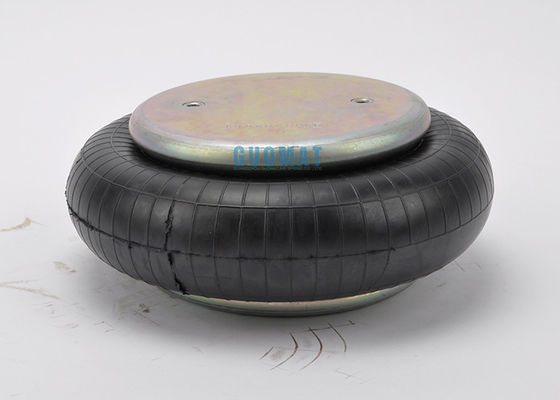

Picture For 1B200-10
