W01-358-6926 Suspension Air Springs Rubber Bellow Number 2B 200 For Firestone

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B 200

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Continental Air Spring	Material:	Rubber And Metal
Warranty:	1 Year	Shock Absorber Type:	Gas-filled
Max Dia.:	251mm	Plate Dia.:	160mm
Air Inlet:	1/4NPTF	Service:	OEM
Highlight:	W01-358-6926 Suspension Air Springs , Firestone Suspension Air Springs

Top-selling Firestone Air Bellow W01-358-6926 Suspension Air Springs 2B 200

AIR SPRING

OEM Supplying Experience
Fast And Steady Products Delivery
All Range Of Vehicles Model Covered
Constant And Stable Quality Endurance

Product Parameters

Type	Convoluted Air Spring
Item NO.	2B 200
Rubber Type	Natural Rubber
Material	Rubber And Metal
Plate Dia.	160mm
Max Dia.	251mm
Firestone	W01-358-6926
Contitech	FD 200-19 504 161299
Triangle	6325/4504
Load share
RR Load	Ls20
MOQ	1 PCS
Warranty	12 Months
Package	Carton
Payment	L/C T/T Western Union
Port of shipment	Huangpu,Guangzhou
Shipment	By Sea,By Air,By Express

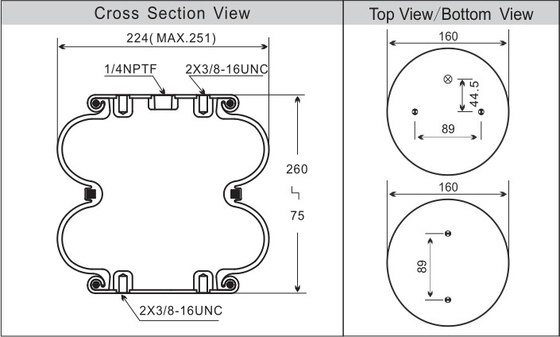

To be sure you choose the correct replacement air bag,We provide the following product data.

Top Cover Plate Dia.:160mm

Bottom Cover Plate Dia:160mm

Screw Center Distance:89mm

Distance Gas Hole Between Nuts:44.5mm

Gas Hole Type:1/4NPTF

Screw(Nut)Tooth:2 X 3/8-16UNC

Rubber Bellows Dia.:224mm(MAX.215mm)

The Stroke:75~260mm

It is use in a wide variety of actuation and vibration isolation.

With time-tested designs incorporating fabric-reinforced or natural rubber flex-member construction and corrosion-protected and retainers, Air Springs provide superior quality and performance.

As an actuator, Air Springs can provide either linear or angular motion.

These air springs offer a favorable stroke-to-compressed-height ratio when compared to air cylinders,and can accept a wide variety of actuation media such as air,water,nitrogen or anti-freeze.

Guomat Other Related Convoluted Air Spring

Guomat Number	Bellow Number	Firestone Number	Contitech Number	Working Stroke
7897	2B 9X2	W01-358-7897		79mm~274mm
6886	2B 9X2	W01-358-6886	FD 200-22 706	79mm~274mm
6883	2B 9X2	W01-358-6883	FD 200-22 510	95mm~274mm
FD 120-17	2B 5020		FD 120-17	75mm~230mm
6353	2B 5020	W01-M58-6353	FD 120-17	75mm~230mm
FD 70-13	2B 5013		FD 70-13	162mm
FD 40-10	2B 40-10		FD 40-10	145mm
7325	2B 8X2	W01-358-7325	FD 120-17 509	177mm
7781	2B 383	W01-358-7781	FD 530-35 545	104mm~391mm
7557	2B 383	W01-358-7557	FD 530-35 530	104mm~391mm
7781	2B 360	W01-358-7781	FD 530-35 545	90mm~300mm
7555	2B 331	W01-358-7555	FD 331-26 480	104mm~363mm
7550	2B 331	W01-358-7550	FD 331-26-541	104mm~363mm
7472	2B 331	w01-358-7472	FD 330-30-371	79mm~363mm
7136	2B 350	W01-358-7136	FD 530-22 321	220mm
7180	2B 330	W01-358-7180	FD 330-22 363	75mm~290mm
7437	2B 330	W01-358-7437	FD330-22 334	104mm~305mm
7429	2B 330	W01-358-7429	FD 330-22 343	81mm~305mm
7406	2B 330	W01-358-7406	FD 330-22 365	104mm~305mm
