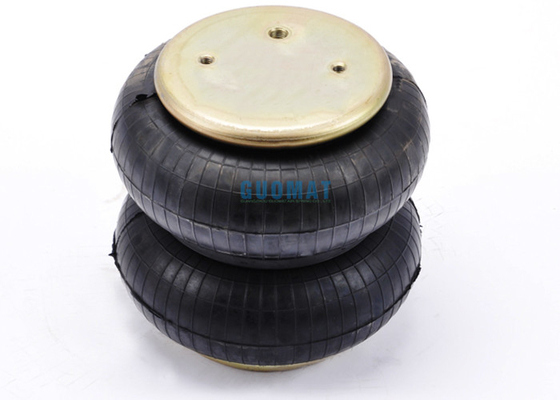

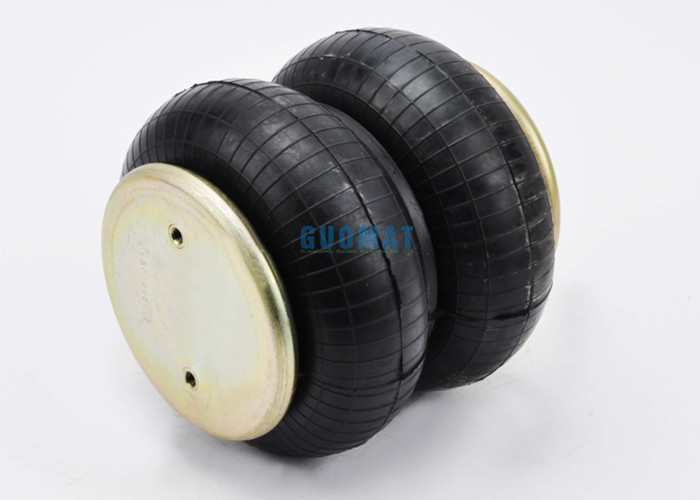

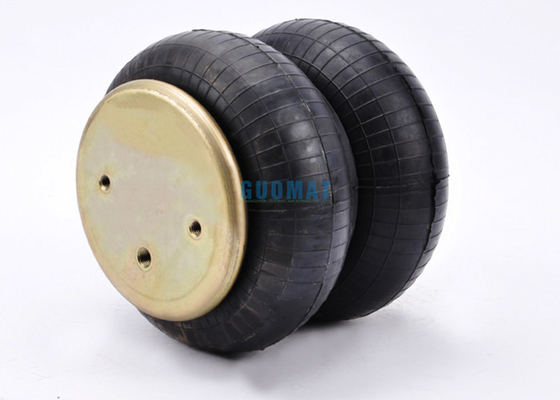

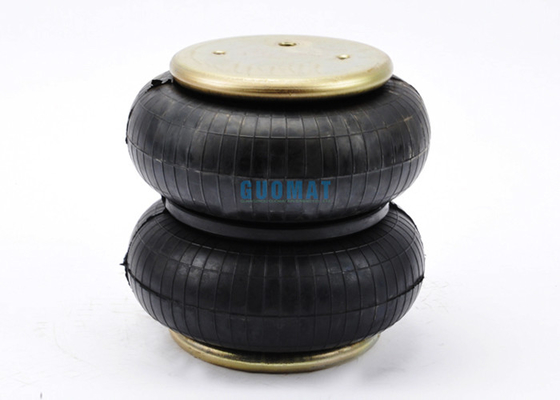

Contitech FD 200-19 Rubber Double Convoluted Air Spring Air Suspension Bellows

Contitech FD 200-19 Rubber Double Convoluted Air Spring Air Suspension Bellows

  • Contitech FD 200-19 Rubber Double Convoluted Air Spring Air Suspension Bellows
  • Contitech FD 200-19 Rubber Double Convoluted Air Spring Air Suspension Bellows
  • Contitech FD 200-19 Rubber Double Convoluted Air Spring Air Suspension Bellows
  • Contitech FD 200-19 Rubber Double Convoluted Air Spring Air Suspension Bellows
  • Contitech FD 200-19 Rubber Double Convoluted Air Spring Air Suspension Bellows
Contitech FD 200-19 Rubber Double Convoluted Air Spring Air Suspension Bellows
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: FD 200-19
Payment & Shipping Terms:
Minimum Order Quantity: 6PCS
Price: $59.9-69.9/pc
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 2-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Product Name: Double Convoluted Air Spring Spring Material: Rubber
Warranty: 1 Year Type: Gas-filled
Max Dia.: 251mm Plate Dia.: 160mm
Packing: Neutral Packing Service: OEM
Highlight:

Rubber Double Convoluted Air Spring

,

Contitech Double Convoluted Air Spring

Contitech FD 200-19 Air Suspension Bellows Rubber Double Convoluted Air Spring



Related OE Numbers

Contitech                      FD 200-19                    Contitech                      2682 045000
Bosch 822419043 Festo EB-250-185
Norgren                        PM/31092                     Weforma                      WBE 400- E1



FD 200-19,2682045000,822419043,EB-250-185,FD-200-19,EB250185,PM31092,PM-31092

PM/31092,WBE 400-E1,WBE-400-E1,WEB400E1

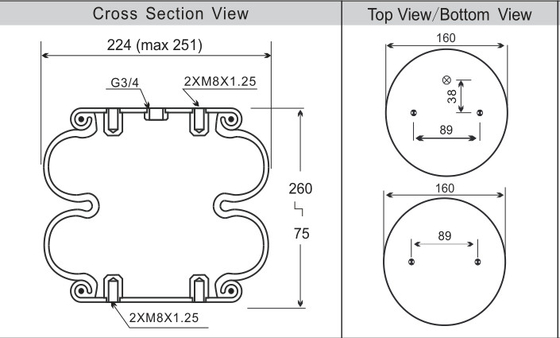

Product Technical parameters



Top Cover Plate Dia.:160mm

Bottom Cover Plate Dia:160mm

Screw Center Distance:89mm

Distance Gas Hole Between Nuts:38mm

Gas Hole Type:G3/4

Screw(Nut)Tooth:2 X M8X1.25

Rubber Bellows Dia.:224mm(MAX.215)

The Stroke:75~260mm



We Proudly Offer the Highest Quality Replacement Air Springs that Exceed OEM Requirements.



Specification:

Long lasting service on almost all tryck and trailer air suspension.
Absorb road shock to help tractors and rigs last longer.
Cut down on vibration and driver fatigue.
Long trouble free service,constant leve; hauling,quite cushioned ride.



Our advantages:

  1. A wide range of products
  2. Accept OEM order
  3. Affordable, safe and efficient logistics services
  4. Flexible payment
  5. Guaranteed warranty

​Our services:

1.Reply your inquiry in 24 working hours
2.OEM,buyer desigh,buyer label services provided
3.Exclusive and unique solution can be provide to our customer by our well-trained and professional engineers and staffs
4.Timely delivery
5.Good after-sale service
6.Factory price



Contitech FD 200-19 Rubber Double Convoluted Air Spring Air Suspension Bellows 0Contitech FD 200-19 Rubber Double Convoluted Air Spring Air Suspension Bellows 1Contitech FD 200-19 Rubber Double Convoluted Air Spring Air Suspension Bellows 2Contitech FD 200-19 Rubber Double Convoluted Air Spring Air Suspension Bellows 3
