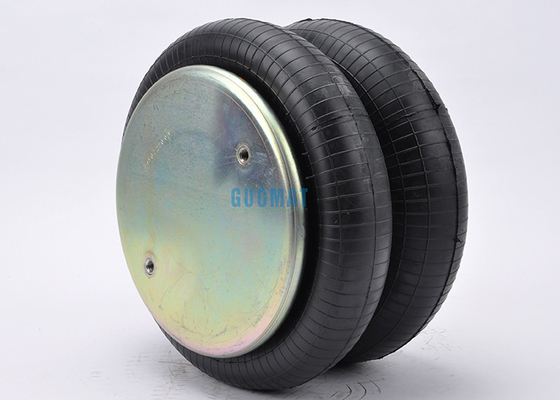

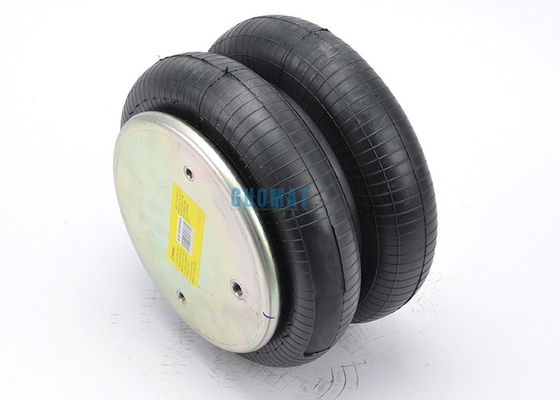

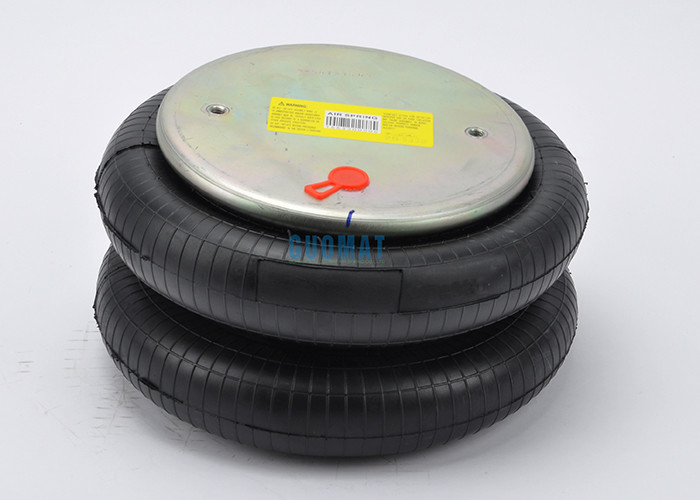

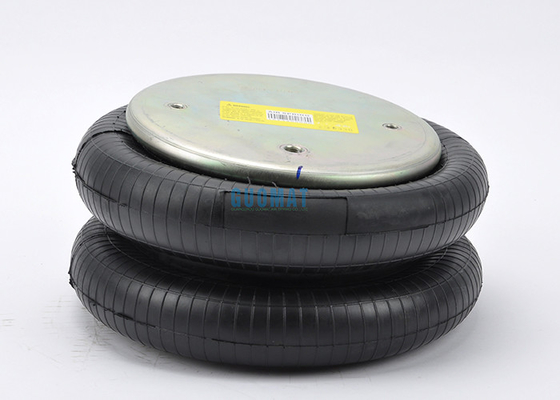

Manufacture Air Suspension Convoluted Type Firestone Industrial Double Air Spring W01-358-6900
Product Information
| Type |
Double Convoluted Airbag |
| Color |
Black |
| Application |
Pick Up |
| Warranty |
12 Months |
| Payment |
T/T L/C Western Union |
| Packing |
Carton Box |
| Delivery date |
2-8 working days |
| MOQ |
1 Piece |
| Firestone |
W01-358-6900 |
| Contitech |
FD 200-19 319/161017 |
|
Goodyear
|
2B9-216/204/207
2B8-157
578923202
|
| Dina |
A1812719 |
| MASA |
227138412 |
| Ridewell |
1003586900C |
| Suspensions |
630173 |
| Watson&Chalin |
AS-0156G |

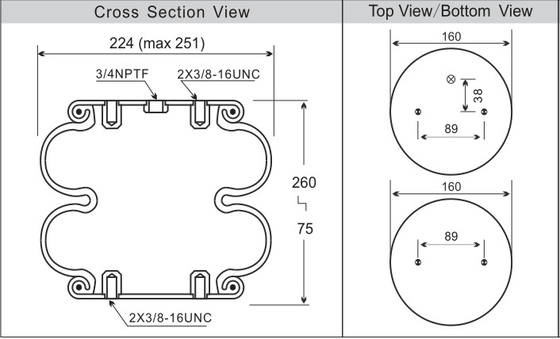

Product data
Compressed height: 3.12
Number of roofs: 3079
Top cover diameter: 6.31 inches / 160 mm
Number of bottom pistons: 3090
Bottom cover diameter: 6.31 inches / 160 mm
Screw center distance: 89 mm
The distance between the nuts is 44.5 mm
Top cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
Bottom cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
Rubber bellows MAX diameter: 251 mm
Rubber bellows natural diameter 224 mm
Working stroke: up to 260 mm to MIN 75 mm
Vent/air inlet: 3/4 NPTF
Number of Corspass bellows: 20
Structural Characteristics Of Air Spring
Air spring is a kind of rubber body formed by inner and outer rubber layers or steel rings and ply throuth calendering,tube sticking,molding,reverse wrapping,vulcanization and assembly.Fill the air spring with 0.6~0.7Mpa compressed air to form a compressed air column.Within the effective stroke of the air spring,the height,inner cavity volume and bearing capacity will have smooth and flexible transmission with the increase or decrease of the vibration load. The air spring can adjust the stiffness and bearing capacity of the spring by increasing or decreasing the air volume, and can also attach an air storage tank to realize self-control adjustment, which has the characteristics of variable stiffness. The vehicle suspension system has better vibration damping performance, thereby improving the vehicle dynamic performance.
The air spring has the characteristics of light weight, strong steering stability, wear-free pneumatic damping, stable working height, perfect lifting function, long service life, good vibration isolation, sound insulation, small installation space and convenient replacement. However, the air spring also has the disadvantage that it can only bear vertical loads, and a guiding mechanism is required to transmit longitudinal force, lateral force and its moment, resulting in a relatively complicated suspension structure.
According to the sealing type, air springs are divided into four types: steel ring crimping type, one end crimping type, both ends crimping type and self-sealing type. The air spring is mainly loaded by the middle 2 layers of cords. In special cases, single-layer cords can also be used. The inner layer of rubber mainly plays the role of sealing, and the outer layer of rubber plays the role of sealing and surface protection.
