| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | W01-358-7994 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Product Name: | Triple Convoluted Air Spring | Material: | Rubber + Steel |
|---|---|---|---|
| Warranty: | 12 Months | Operation: | Gas-filled |
| Max Dia.: | 330mm | Plate Dia.: | 231mm |
| Packing Size: | 24*24*24cm | Gas Hole Type: | 1/4NPTF |
| High Light: | W013587994 Convoluted Air Spring,Firestone Convoluted Air Spring |
||
Air Lift Bellows Convoluted Air Spring Contitech FT330-29 546/Firestone W013587994
Quack Detail
| Item | Air Spring | Model | W01-358-7994 |
| Condition | Brand new | Warranty | 1 Year |
| Trade Term | FOB,CNF,EXW | Packing | Carton |
| Delivery | 2-8working days | Material | Rubber+Steel |
| Payment | TT,LC,Western Union | MOQ | 1 PC |
Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1pcsX3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 140 mm
Screw Center Distance of Bottom Cover Plate : 157.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF
❸ Cover Plate
Top Cover Plate Diameter: 231 mm
Bottom Cover Plate Diameter: 231 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter :300 mm
The Working Stroke : MAX 460 mm to MIN 130 mm
Maximum Height : 460 mm
Minimum Height :130 mmx
Compression Height : 330 mm
❺ Bumper block / Buffer block
With Bumper Block Or Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Two Pieces of Girdle Hoop
Cross Information
Firestone W01-358-7994
Contitech FT 330-29 546 / 64572
Goodyear 3B12-328
Triangle 4546/6364
Watson&chalin AS-0019-F
Euolid/meritor After market E-FS7994

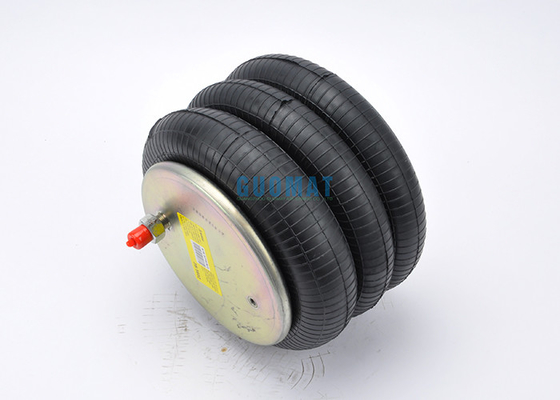

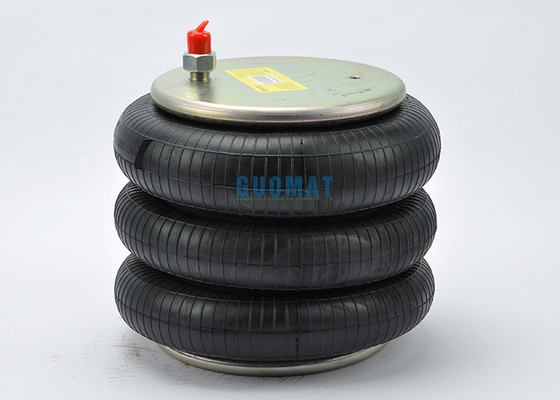

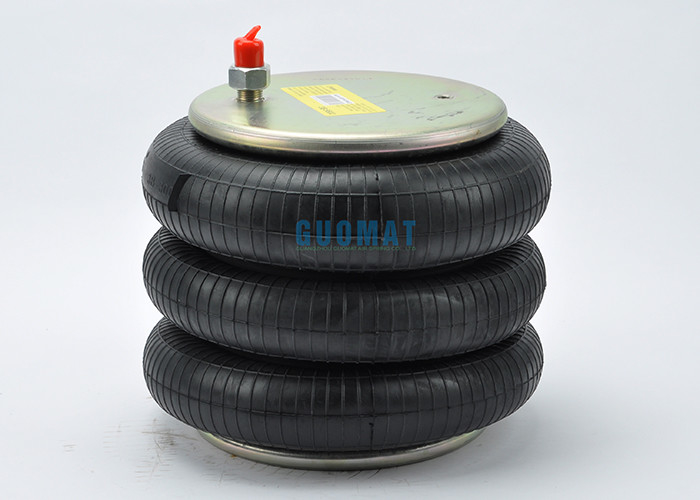

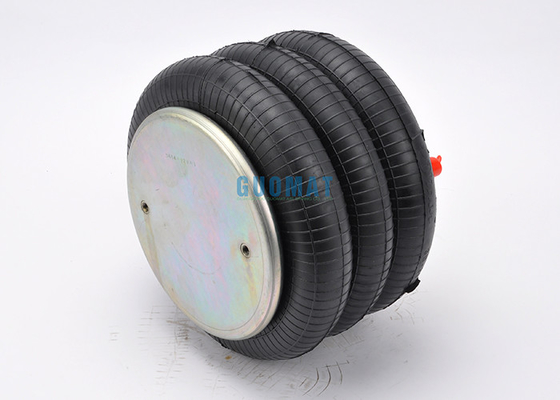

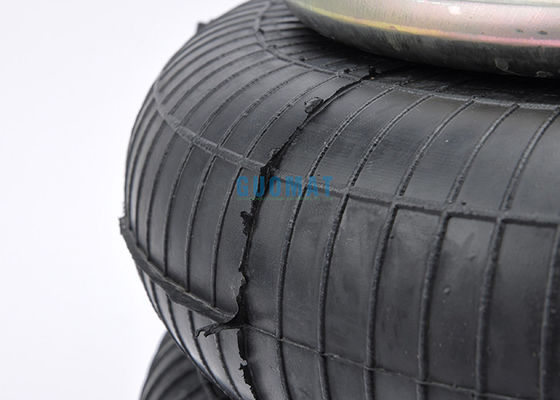

GUOMAT Product Picture
