| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B12-301 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Product Name: | Single Convoluted Air Bellow | Style: | Single Convoluted Style |
|---|---|---|---|
| Material: | Rubber | Warranty: | 12 Months |
| Size: | OEM Standard | Shock Absorber Type:: | Gas-Filled |
| Quality: | 100% Tested | Sample: | Accept |
| High Light: | W01-358-7009 Convoluted Air Spring,1B12-301 Convoluted Air Spring |
||
Convoluted Air Spring / Air Bellow Suspension W01-358-7009 1B12-301 SAF Holland

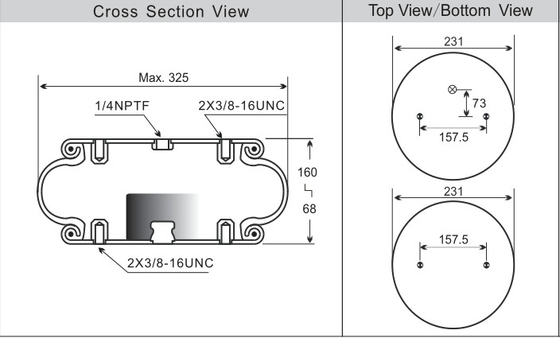

Specifications and Technical Data
Top cover plate diameter:231mm
Bottom cover diameter:231mm
Screw center distance of top cover plate:157.5mm
Screw and Air hole distance of top cover plate:73mm
Air hole:1/4NPTF
Top cover plate screw(nut)tooth:2x3/8-16UNC
Screw center distance of bottom cover plate:157.5mm
Bottom cover plate screw(nut)tooth:2x3/8-16UNC
Rubber bellows MAX diameter:325mm
The working stroke:MAX 160mm to MIN 68mm
Maximum height:160mm
Minimum height:68mm
OEM Original Equipment Manufacturer
| Firestone W01-358-7009,W013587009,7009 |
| Contitech FS 330-11 468 |
| Goodyear 1B12-301/578913301 |
| Triangle 6374/4468 |
SAF Holland 90557002/AR741
Ridewell 1003587009C
Firestone Bellows Number:19
Goodyear part Number:1B12-301/1B12-313
Goodyear Bellows Number:578-91-3-301/578 91 901/57891301
Firestone W013587009 Details
Air Springs Can Reduce Your Costs And Increase Your Profits.
| NO. | |
| 1 | Last at least twice, and as much as four times longer than steel springs |
| 2 | Require little or no maintenance |
| 3 | Increase life of tires and brake linings |
| 4 | Substantially reduce breakage and maintenance of other vehicle components, including electrical, air conditioning, cab mounts, exhaust, chassis, seals, wiring and drive train. |
| 5 | Let you haul anything; eliminate expensive deadheading runs |
| 6 | Reduce driver discomfort and dangerous fatigue; improve driver safety, productivity and loyalty |
| 7 | Allow perfect load equalization between axles; let you run at the maximum legal limit |
| 8 | Provide smoother ride for payload, reducing costly insurance claims and the expense of overpackaging |
| 9 | 100% of all air spring assemblies are pressure tested before they leave factory. |
| 10 | 1 year warranty. |
| 11 | Firestone rubber compounds have superior 'flex' range through temperatures of -65 F to 135 F. |
How To Properly Install An Air Spring?
| NO. | |
| 1 | The piston rod of the rubber airbag must be installed in the downward position, which can reduce friction and ensure high cushioning performance. |
| 2 | The rubber airbag should not be subjected to tilting force and lateral force during work, and should not be used as a handrail. |
| 3 | Do not damage the surface of the piston rod to ensure tightness |
| 4 | Do not bake the rubber air spring, the collision is strong Ambient temperature: -35℃±70℃ |
| 5 | Reasonable selection of Shicun, the size of the force should be suitable |

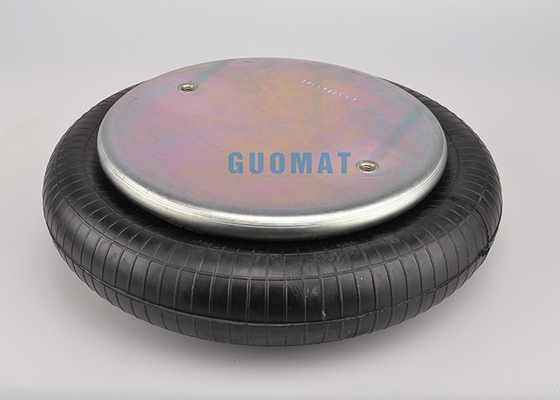

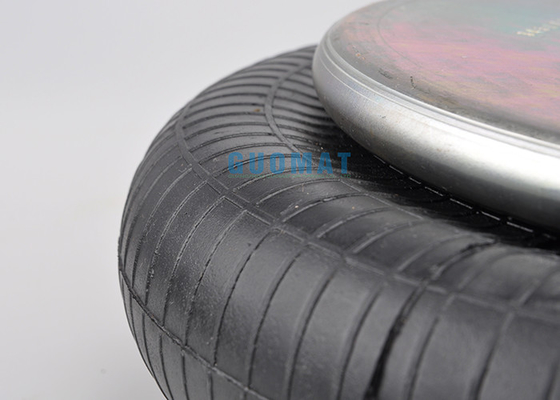

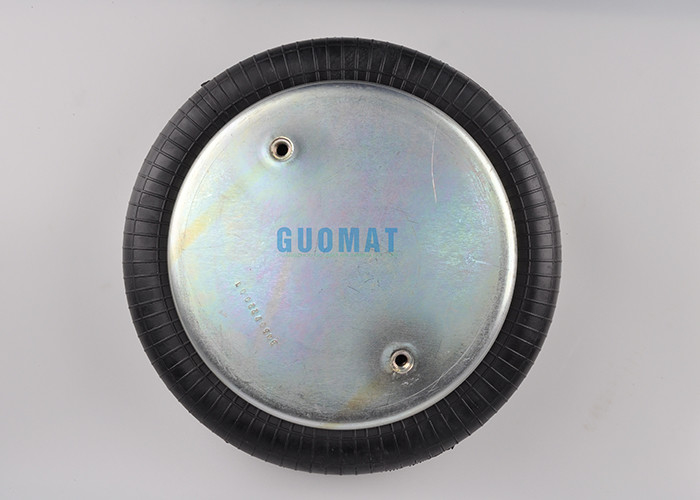

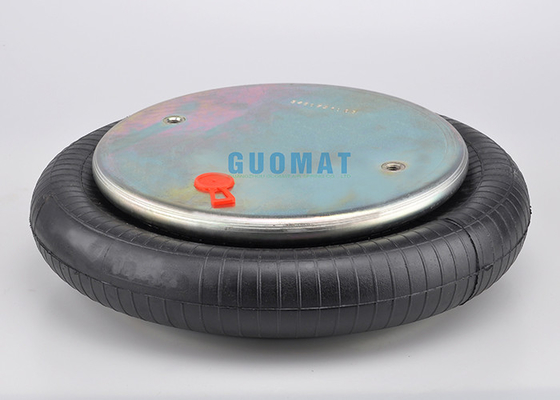

Firestone W013587009 Pictures
FAQ
1. Q: How to order ?
A: Step 1, please tell us what model and quantity you need;
Step 2,then we will make a PI for you to confirm the order details;
Step 3,when we confirmed everything ,you can arrange the payment;
Step 4,finally we deliver the goods within the stipulated time.
2. Q: When will make delivery ?
A: Delivery time is 2-8woring days.
3. After-sales service
A:1 year warranty for all kinds of products;
If you have any questions after receiving the goods,please feel free to contact me,as an experienced manufacturer ,you can rest assured of the quality and after-sales service.
4. Payment
A:T/T,Western Union,L/C
5. Transportation
A:Transportation by DHL,UPS,EMS,Fedex,Air freight,Sea freight.
