| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | W01-358-8010 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Type Of Goods: | Air Spring/Air Bags/Air Ballons | Spring Material: | Rubber + Steel |
|---|---|---|---|
| Product Warranty: | 12 Months | Sample: | Available |
| Air Inlet: | 1/4NPTF | Plate Dia.: | 231mm |
| Service Offered: | OEM | Hight Light: | Firestone Industrial Triple Convoluted Air Spring |
| High Light: | W01-358-8010 Suspension Air Spring,Industrial Suspension Air Spring |
||
W01-358-8010 Firestone Industrial Bellows Actuator 1/4NPT Air Suspension Spring
Product Description
| Part Number | 3B8010 |
|
Refer Number |
Firestone W01-358-8010 |
| Contitech FT 330-29 432 | |
| Goodyear 3B12-301 / 578933100 | |
| Triangle 6334/4432 | |
| Ridewell 1003588010C | |
| Leland Sc2119 | |
| Oshkosh 8013 | |
| Tafco | |
| Working temperature | -40°C bis +70°C |
| Failure testing | ≥3 millions |

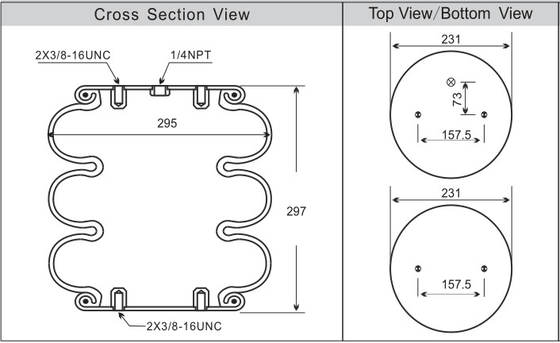

| Top Cover Plate Diameter | 231mm |
| Bottom Cover Plate Diameter | 231mm |
| Gas Hole / Air inlet | 1/4NPT |
| Rubber Bellows MAX Diameter | 295mm |
| The Working Stroke | 297mm |
Airmount / Airstroke Actuator W01-358-8010, W013588010,B/N,1/4NPT(OFFSET),R.B.&SUPPORT PADS,38D Style Air Spring ,Type 3 Bead Plate,(2) 3/8 -16 Blind Nuts On 157.5mm,Rubber Bumper.
Manufacturer:Firestone Industrial Products
Manufacturer:W01-358-8010,W013588010,8010
Crossovers
Triangle Spring:4432
Triangle Spring:4498
Firestone:8010
Contitech:34563
Ridewell:1003588010C
UCF/Impex:AB-3B12-301
T.W.Distribution:AB8010
Dallas Spring:AS8010
Midland/Haldex:CS312301
Euclid/Meritor Aftermarket:E-FS8010
Euclid/Meritor Aftermarket:FS8010
Contitech:FT330-29432
Ridewell:S5844C
Leland:SC2119
Bellows stype Air Spring
The bellows air springs have one, two, or three convolutions in the flexible member. This triple convoluted air bag is typically found on lift springs or axles for trucks and trailers, as an air ride spring, and also as an actuator or insulator on industrial and commercial applications. The specifications will vary on your 3B12-301, but triple convoluted Goodyear bags are found in crimped design as well as sleeve type bellows. They will offer similar characteristics and functionality but the sleeve type has the end retainers permanently attached by pinching the flexmember between the end retainers and external crimp rings.
What about our package & shipping terms?
Package : Strong carton box or according to customer requirement.
Shipping Port : Huangpu Guangzhou China
Payment Term : L/C,T/T,Westren Union,Paypal
Delivery Term : 1.2-8 working days after receive payment.
2.Shipping by air,by sea,by express(DHL/FEDEX/UPS...)

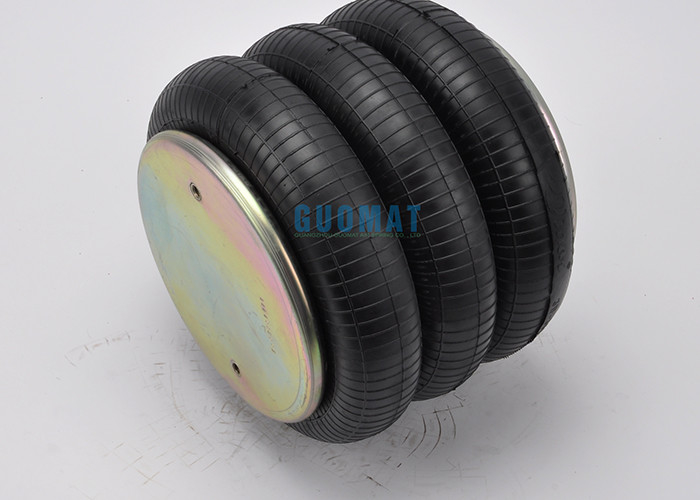

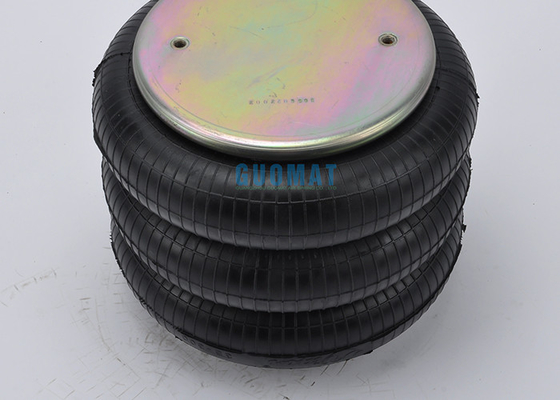

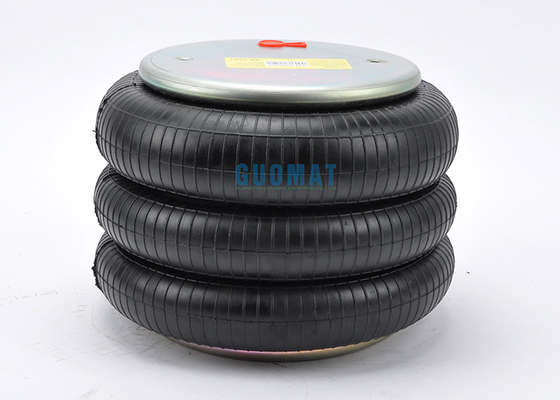

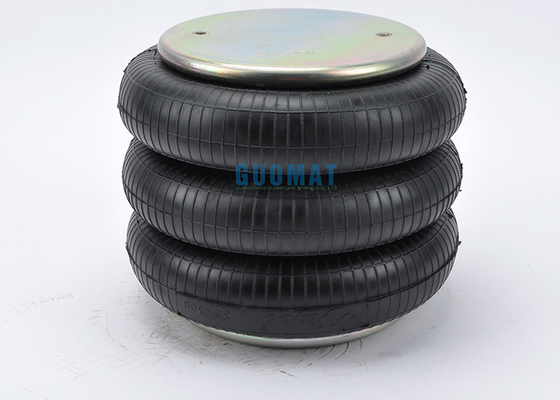

Product Image
FAQ
|
1. Q: How to order ? A: Step 1, please tell us what model and quantity you need; Step 2,then we will make a PI for you to confirm the order details; Step 3,when we confirmed everything ,you can arrange the payment; Step 4,finally we deliver the goods within the stipulated time.
|
|
2. Q: When will make delivery ? A: Delivery time is 2-8woring days.
|
|
3. After-sales service 1 year warranty for all kinds of products; If you have any questions after receiving the goods,please feel free to contact me,as an experienced manufacturer ,you can rest assured of the quality and after-sales service.
|
|
4. Payment T/T,Western Union,L/C
|
|
5. Transportation Transportation by DHL,UPS,EMS,Fedex,Air freight,Sea freight.
|
Contact Person: Sunny
Tel: 18928788039
