| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | W01-358-8030/38 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Product Name: | Air Spring, Airbags, Air Suspension Spring | Style: | Three Convoluted Air Spring |
|---|---|---|---|
| Warranty: | 12 Months | Operation: | Gas-filled |
| Quality: | 100% Tested | Plate Dia.: | 231mm |
| Package: | Brown Cartons | Dimension: | OEM/standard Size |
| High Light: | W01-358-8030/38 Industrial Air Bag,3B12-304 Industrial Air Bag,Goodyear Air Bellow 3B12-304 |
||
Universal Industrial Airbag Firestone W01-358-8030/38,Goodyear Air Bellow 3B12-304
Product Information
| Product Name | Air Suspension Parts |
| Working Temperature | -40℃ bis +70℃ |
|
Refer Numbers |
Firestone:W01-358-8030/38 |
| Contitech: FT 330-29 498 | |
| Goodyear:3B12-304 | |
| Triangle : 6334/4432 | |
| Ridewell:1003588030C | |
| Failure Testing | ≥3 millions |
|
Technical data |
Top Cover Plate Diameter:231mm |
| Bottom Cover Plate Diameter:231mm | |
| Rubber Bellows MAX Diameter:330mm | |
| The Working Stroke:MAX 460 mm to MIN 130 mm | |
| Screw Center Distance of Top Cover Plate:157mm | |
| Screw Center Distance of Bottom Cover Plate:157mm | |
| Screw And Gas Hole Distance of Top Cover Plate:73mm | |
|
Notice |
These air suspension bags are aftermarket ones.They will replace the original air spring bags. -Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts. -Instruction isn’t included.Professional installation is recommended. -Contact us please for whatever we can help |

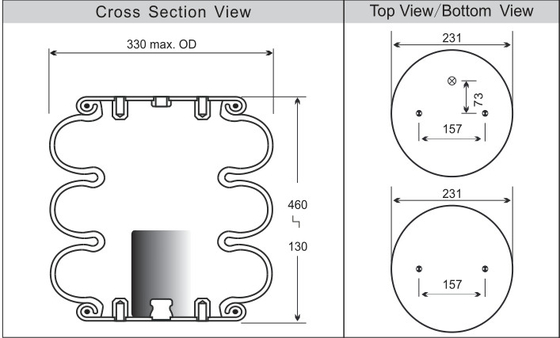

Product Real Technical Data Picture
3B12-304 Goodyear Air Spring
Super-Cushion ® Air Springs give your trucks, trailers and buses a new high in productivity and long life. The Bellow Air Springs provide constant-level hauling, and deliver trouble-free service.
Goodyear air bags protect cargo, and provide level hauling and long term service. The bellow air springs offer a quiet , cushioned ride, and they last longer than steel springs because there is less vibration. The driver rides in greater comfort, becomes less fatigued and stays more alert.. Plus cargo has better protection from shock and vibration.
GUOMAT Other Related Product
| Contitech | Goodyear | Firestone | Phoenix |
| 928N | 8042 | W01-095-0228 | 2E23A |
| 943N | 9001 | W01-095-0189 | |
| 973N | 8012 | W01-095-0198 | 1F21A |
| 945N | 9014 | W01-095-0063 | 1E21C |
| 975N | W01-095-0437 | 1E10 | |
| W01-095-0294 | |||
| W01-358-9391 | |||
| 4913NP02 | 1R14-753 | W01-095-0500 | 1D28H-16 |
| 1R14-869 | |||
| 4159NP06 | W01-M58-0736 | ||
| 810NTB | 1R14-713 | W01-M58-0749 | 1DK28A4 |
| 4022NP02 | 1R11-709 | W01-M58-0756 | |
| 4022NP02 | 1R11-709 | W01-M58-0756 | |
| 836MB | W01-M58-0775 | 1DF25-4 | |
| 836MB | 1R12-700 | W01-M58-0776 | 1DF25-1 |
| 836M2K1 | 1R12-711 | W01-M58-8721 | 1DF25-13 |
| 887M | 1R11-796 | W01-M58-0780 | |
| 889MK2 | W01-M58-0781 | ||
| W01-M58-0918 | |||
| 4004NP02 | W01-M58-0919 | ||
| 4004NP02 | W01-M58-0919 | ||
| 6603NP02 | |||
| 4183NP23 | |||
| 4883N1P07 | |||
| 6609NP01 |

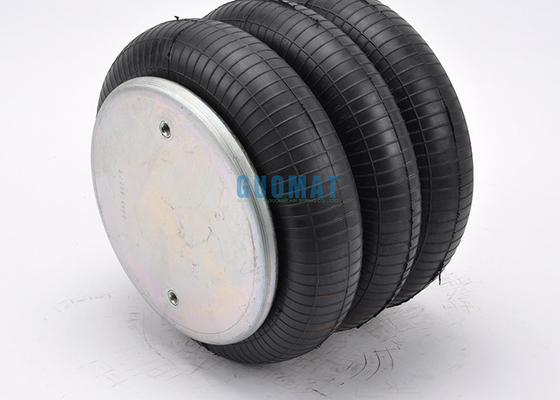

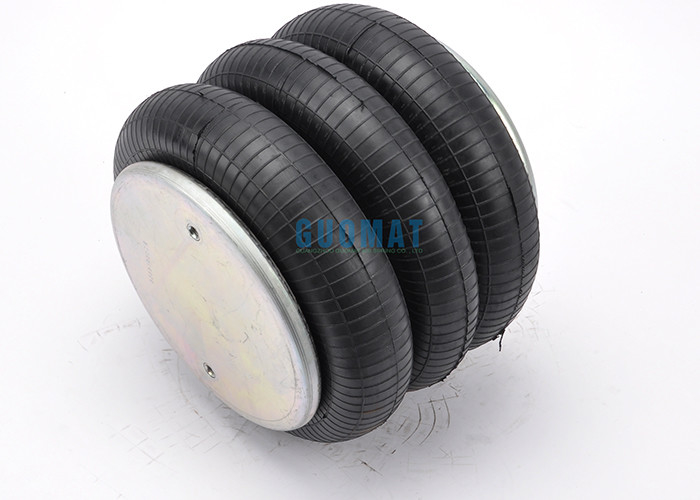

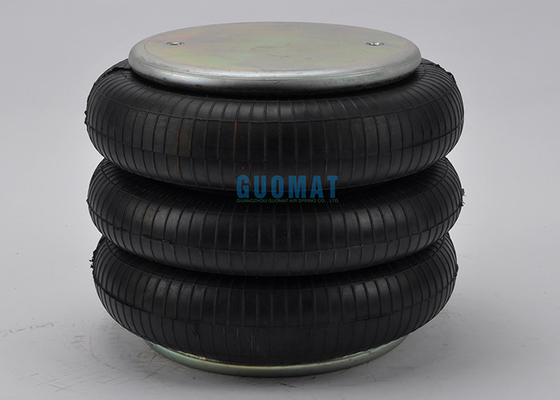

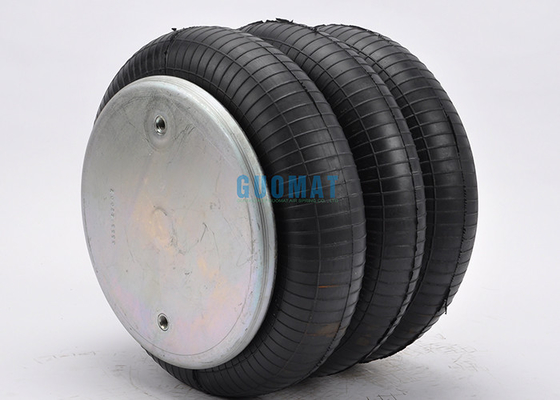

Product Picture
