| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B70-7 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Spring Material: | Rubber+Steel | Name: | Single Convoluted Air Spring |
|---|---|---|---|
| Style: | Single Convoluted Style | Warranty: | 12 Months |
| Application: | Auto Suspension System | Operation: | Gas-Filled |
| MAX Diameter: | 165mm | Air Inlet: | G1/4 |
| High Light: | Gas Filled Industrial Air Spring,Contitech Industrial Air Spring |
||
Contitech Single Convolution Air Actuator FS 70-7 G1/4 Bellows Style Air Spring
Product Details
Product Name:Air Spring
Item Number:1B70-7
Warranty: 12 Months
Color:Black
Place of Origin:Guangzhou,China
Bellow Type:Single Convoluted
Certification:ISO/TS16949:2009
Material:Rubber+Steel
MOQ:1 PCS
Packing:Neutral Packing
Quality:Hight-Quality
Contitech:FS70-7
Phoenix:SP 1B 05
Bosch:822419002
Festo:EB-165-65
Weforma:WBE200-E1
1B 70-7 Single Convoluted Air Spring Technical Data
Top Cover Plate Diameter:105mm
Bottom Cover Diameter:105mm
Air Hole/Gas Hole:G1/4
Top Cover Plate Screw (Nut) Tooth:2XM8X1.25
Bottom Cover Plate Screw(Nut) Tooth:2XM8X1.25
Rubber Bellows MAX Diameter:165mm
Screw Center Distance of Top Cover Plate :44.5mm
Screw Center Distance of Bottom Cover Plate:44.5mm
The working Stroke:MAX 115 mm to MIN 50 mm
Maximum Height : 115 mm
Minimum Height :50 mmx
Compression Height : 65 mm

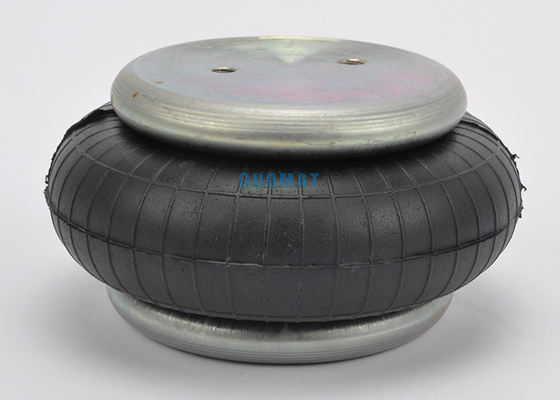

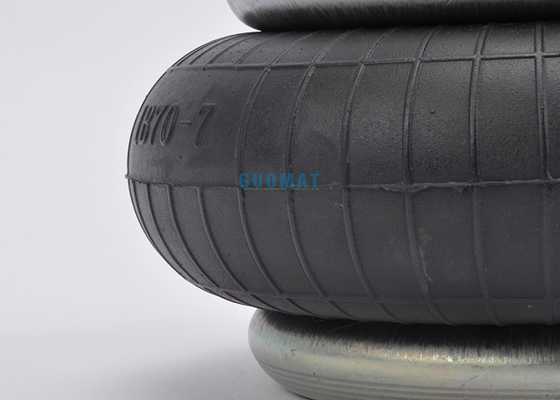

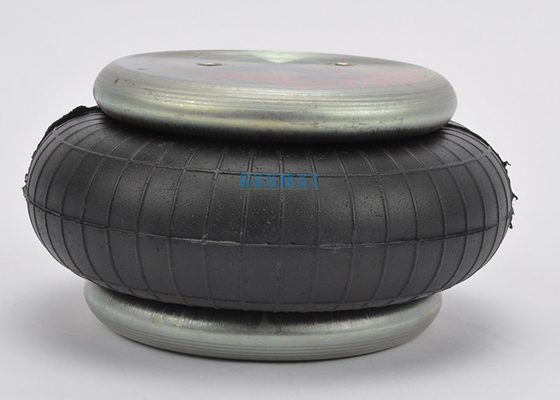

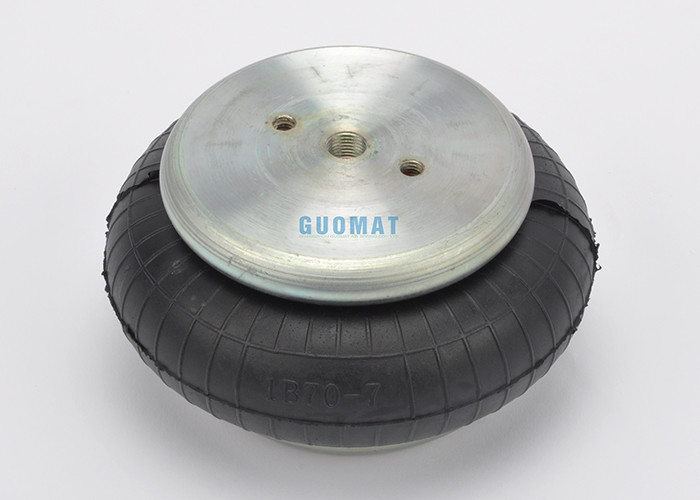

Product Real Picture
Company Profile
About Us
Guangzhou Guomat Air Spring Co.,Ltd
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min’s drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Packing & Shipping
1.Packed in seaworthy carton for export.
2.Suitable for long distance ocean transportation.
1.Transportation by sea,by air,by express(DHL,FEDEX,UPS..)
2.Delivery time:2-8 working days received the payment.
FAQ
|
1. Q: How to order ? A: Step 1, please tell us what model and quantity you need; Step 2,then we will make a PI for you to confirm the order details; Step 3,when we confirmed everything ,you can arrange the payment; Step 4,finally we deliver the goods within the stipulated time.
|
|
2. Q: When will make delivery ? A: Delivery time is 2-8woring days.
|
|
3. After-sales service 1 year warranty for all kinds of products; If you have any questions after receiving the goods,please feel free to contact me,as an experienced manufacturer ,you can rest assured of the quality and after-sales service. |
|
4. Payment T/T,Western Union,L/C
|
|
5. Transportation Transportation by DHL,UPS,EMS,Fedex,Air freight,Sea freight.
|
