| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B 550 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Product Name: | Convoluted Style Airbag | Spring Material: | Steel+Rubber |
|---|---|---|---|
| Warranty: | 12 Months | Product Feature: | In-situ Installation |
| Shock Absorber Type:: | Gas-Filled | Packing: | Neutral Packing |
| Quality: | 100% Tested | Sample: | Accept |
| High Light: | W01-358-7564 Industrial Air Spring,Rubber Convoluted Industrial Air Spring |
||
Air Industrial Spring Firestone W01-358-7564 Rubber Convoluted Type For Lifting
PRODUCT INFORMATION
CROSS REFERENCE
| Firestone W01-358-7564 |
| Goodyear 1B8-550 |
| Contitech FS120-10 |
SPECIFICATION
| Part Number | 1B 550 |
| Working Temperature |
-40°C bis +70°C |
| OEM NO. | W01-358-7564/1B8-550/FS120-10 |
|
Failure testing |
≥3 millions |
| Main product we sell | Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump |
1B8-550 INDUSTRIAL AIR REPLACEMENT PARTS TECHNICAL DATA
Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Bottom Cover Plate Screw(Nut) Tooth:2X3/8-16UNC
Rubber Bellows MAX.Diameter:MAX.230
The Working Stroke:50mm~140mm
Air bag is a rubber and fabric bladder that holds air pressure to support a loat and isolate passengers and cargo from the shock of motion caused by road irregularities.
As the air pressure increases,the air spring can support more loat while the spring rate increases.The larger the air spring,the greater the maximum load it can support.
APPLICATIONS
FEATURES

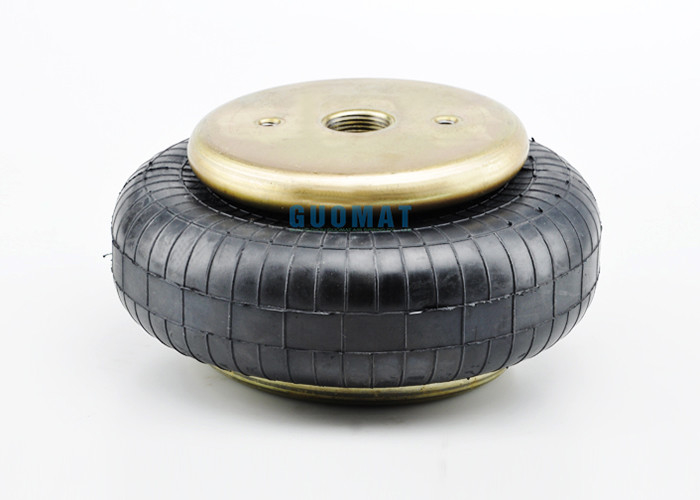

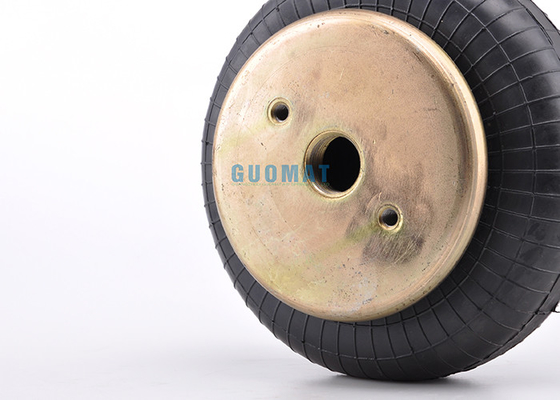

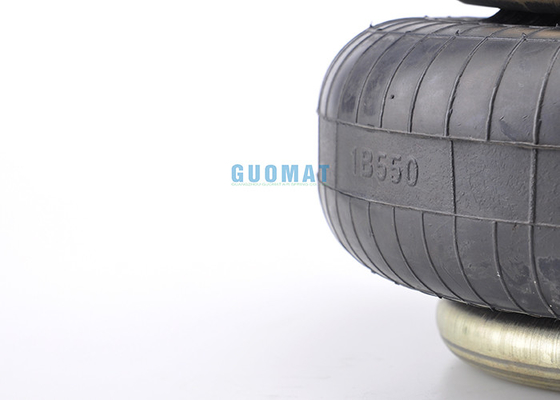

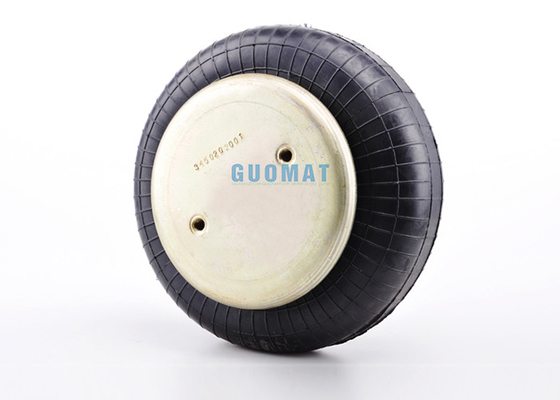

PRODUCT IMAGE
FAQ
|
1. Q: How to order ? A: Step 1, please tell us what model and quantity you need; Step 2,then we will make a PI for you to confirm the order details; Step 3,when we confirmed everything ,you can arrange the payment; Step 4,finally we deliver the goods within the stipulated time.
|
|
2. Q: When will make delivery ? A: Delivery time is 2-8woring days.
|
|
3. After-sales service 1 year warranty for all kinds of products; If you have any questions after receiving the goods,please feel free to contact me,as an experienced manufacturer ,you can rest assured of the quality and after-sales service. |
|
4. Payment T/T,Western Union,L/C
|
|
5. Transportation Transportation by DHL,UPS,EMS,Fedex,Air freight,Sea freight.
|
