| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | SP1B04 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Type Of Goods: | Air Spring/Air Bags/Air Ballons | Spring Material: | Steel+Rubber |
|---|---|---|---|
| Warranty: | 12 Months,1 Year | Suspension System: | Air Suspension Spring |
| Shock Absorber Type:: | Gas-Filled | Packing: | Neutral Packing Or Customized |
| Quality: | 100% Tested | Sample: | Accept |
| High Light: | Single Convoluted Truck Air Spring,SP1B04 Truck Air Spring,FS40-6 1/8 M8 Truck Air Spring |
||

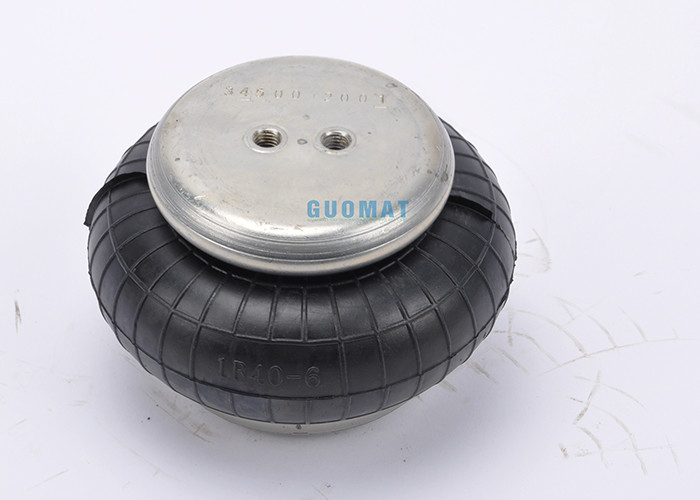

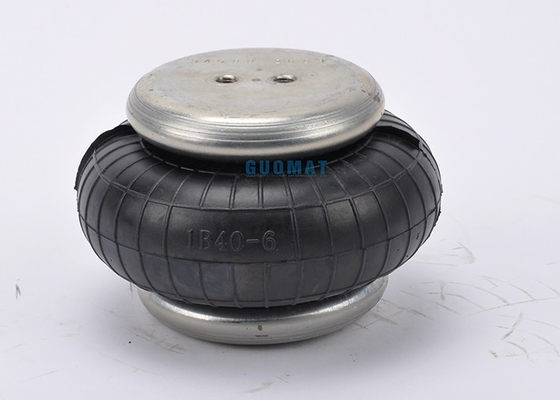

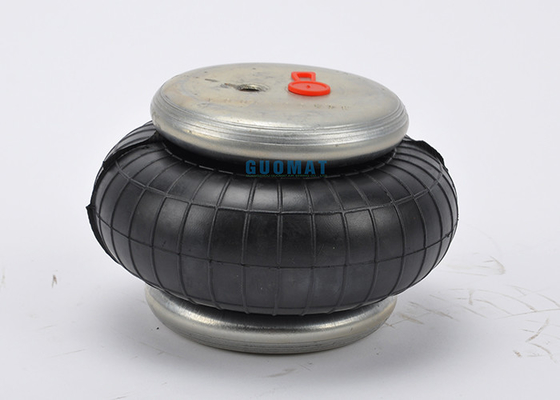

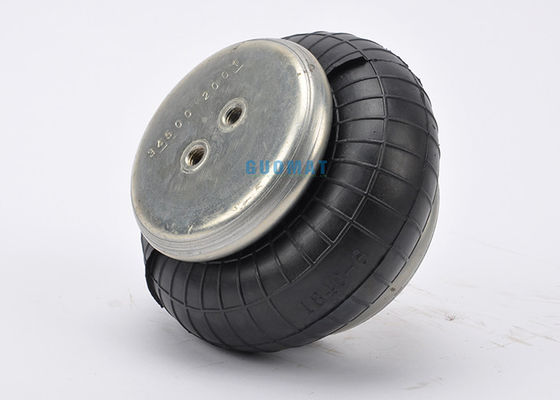

Phoenix SP1B04 Contitech Single Convoluted Truck Air Spring FS40-6 1/8 M8

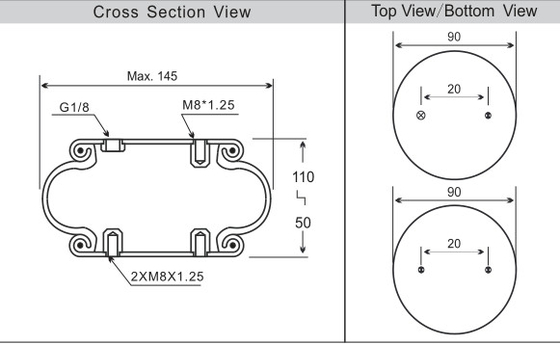

Product Data Drawing
Cover Plate
Top Cover Plate Diameter: 90 mm
Bottom Cover Plate Diameter: 90 mm
Air Inlet/Gas Hole
Air Inlet:G1/8
Blind Nut
Top Cover Plate Screw(Nut)Tooth:1XM8X1.25
Bottom Cover Plate Screw(Nut)Tooth:2XM8X1.25
Distance Between Air Hole And Screw of Top Cover Plate:20mm
Screw Center Distance of Bottom Cover Plate:20mm
Rubber Bellow
Rubber Bellow MAX Diameter:145mm
The Woring Stroke :MAX 110 mm to MIN 50mm
Maximum Height:110mm
Minimum Height:50mm
OEM Number
Contitech:FS 40-6 1/8 M8
Phoenix:SP1B04
Weforma:WBE100-E1
Company Introduction
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min’s drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Packing & Shipping
1. For small orders those in stock, we usually deliver in 2-8 working days after your payment.
2. While for those out of stock,it depends,we will inform you by email once you inquire.
3. Our payment terms : L/C , T/T, Western Union,Paypal
4. Freight may vary depending on specific weight, volume, and address, please check with us for the exact freight.
