| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B9-202 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber & Steel | Size: | OEM Standard |
|---|---|---|---|
| Warranty: | 12 Months | Shock Absorber Type: | Gas-Filled |
| Car Make: | Goodyear | Packing: | Neutral Packing |
| Quality: | 100% Tested | ||
| High Light: | Nature Rubber Suspension Air Spring,1B9-202 Goodyear Suspension Air Spring,Truck Air Ride Spring |
||
1B9-202 Goodyear Nature Rubber Suspension Air Spring G3/4 For Truck AirRide Spring
PRODUCT DESCRIPTION
| Type | Single Convoluted Goodyear Spring |
| Fit For | Goodyear |
| OEM Number | 1B9-202 |
| Condition | Brand New |
| Material | Rubber+Steel |
| Warranty | 1 Year |
| Payment | L/C T/T Western Union |
| Delivery | 3-7 days after receiving payment |
OEM REFERENCE
Goodyear:1B9-202
:578 91 3 201
GOODYEAR 1B9-202 TECHNICAL DATA
Cover Plate
Top Cover Plate Diameter:160(mm)
Bottom Cover Plate Diameter:160(mm)
Gas Hole/Air Inlet
Gas Hole/Air Inlet:G3/4
Blind Nut
Top Cover Plate Screw(Nut)Tooth:2XM8X1.25
Bottom Cover Plate Screw(Nut)Tooth:2XM8X1.25
Screw Center Distance Of Top Cover Plate:70(mm)
Screw Center Distance Of Bottom Cover Plate:70(mm)
Rubber Bellow
Rubber Bellows MAX Diameter: 222 (mm)
The Working Stroke:128(mm)
Air Spring
Air spring come in various shapes and sizes including bellows,rolling lobe,and sleeve.Super-Cushion bellows and sleeve springs have strict design specifications and parameters during manufacturing ensuring a perfect fit for your truck or industrial air spring application.
Air springs for your truck or trailer will offer a quiet, more cushioned ride resulting in greater comfort, peace of mind, and safety. Due to less vibration, truck and trailer suspension components will last longer while providing durability and improved protection from shock and vibration for the vehicle, passenger, and cargo.
As many of you already know, when used with leveling sensors or valves, Air springs can maintain consistent ride height regardless of the load applied. This results in less adjustment during every day activities such as keeping level with loading docks. Installation is also very universal and adding a Super-Cushion air bag will fit right in whenever you wish to add an axle.
Benefits for the Truck and Trailer

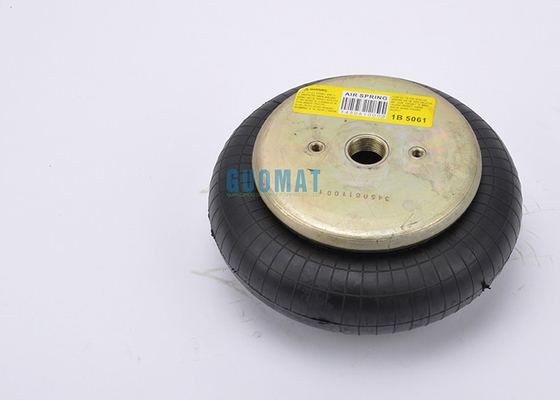

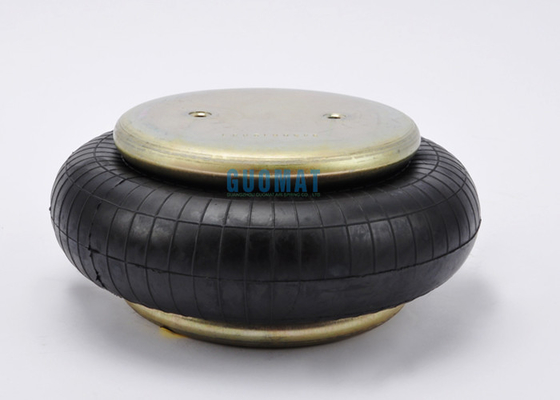

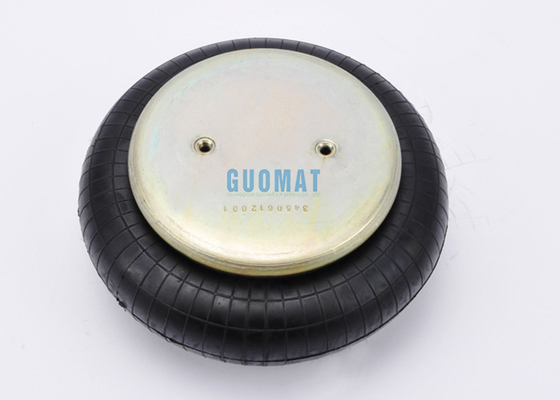

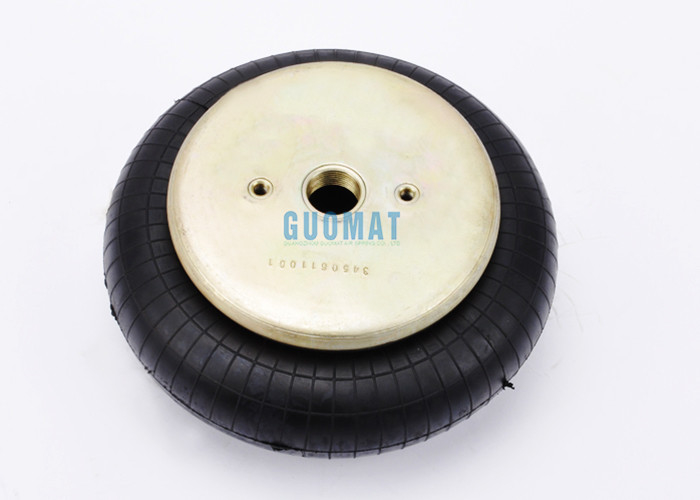

Product Picture
