| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B7451 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Item: | Suspension Spring, Single Convoluted Airbags | Warranty: | 1 Year |
|---|---|---|---|
| Material: | Rubber + Steel | Rubber Bellow: | MAX.205mm |
| Plate Diameter: | 115mm | Packing: | Brown Carton |
| Condition: | 100% Brand-new | Size: | 16*16*16 CM |
| High Light: | Firestone Single Convoluted Air Bag,W01-358-7451 Single Convoluted Air Bag |
||
W01-358-7451 Firestone Single Convoluted Air bag Bellow Type 1B7451 Air Spring
Product Information
Manufacturer:Firestone Industrial Products
Manufacturer Part Number:W01-358-7451,W013587451
Firestone W01-358-7451 Air Spring Technical Data
Temperature Range【MIN】: -37℃
Bellows O.D.【MAX】:205mm
Convoluted:Single
Air Inlet Type:NPTF
Air Inlet :1/4 N.P.T.F
Top Cover Plate Diameter:115mm
Bottom Cover Plate Diameter:115mm
Screw Center Distance of Top Cover Plate:44.5mm
Screw Center Distance of Bottom Cover Plate:44.5mm
Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Bottom Cover Plate Screw(Nut) Tooth:2X3/8-16UNC
The Working Stroke:50mm ~140mm
Description
Firestone air springs are time-proven industrial actuators and vibration isolators. As an actuator, air springs offer a unique ability to provide linear or angular motion in a very low profile when compared to air cylinders. Their unique, flexible properties lend well to numerous duties on machines that press, tension, roll, convey, lift and package. As an isolator, air springs are effective in reducing the harmful effects of vibration.
Applications
Industrial actuator
Vibration isolator
Press machines
Conveyors
Lifts
Packaging machines
Features
Two-ply, fabric-reinforced rubber
Flexible media
Provides linear and angular motion
Reduces harmful effects of vibration

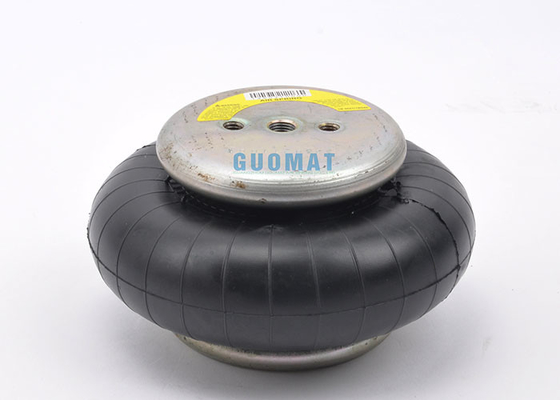

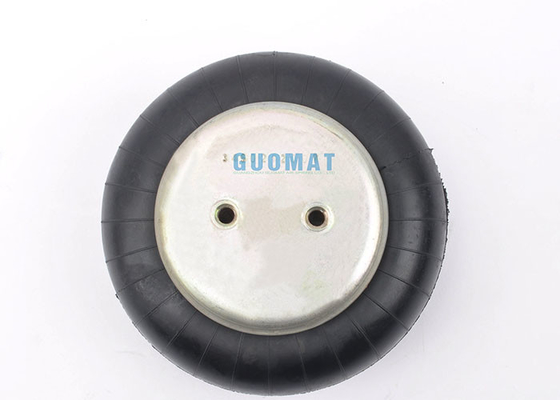

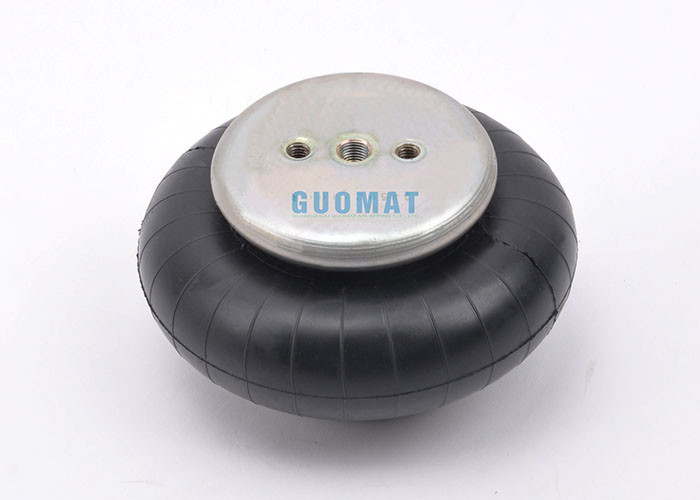

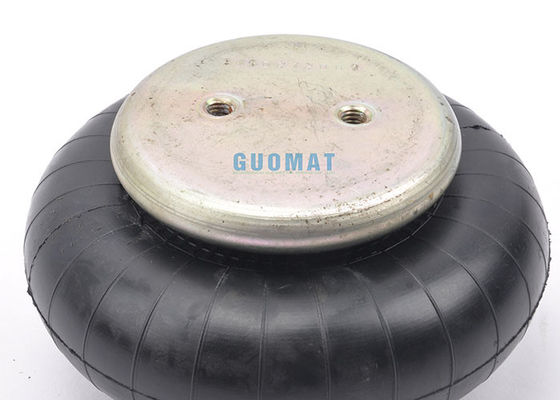

Product Image
Packing Picture
Packing & Shipping
Package: According to customer requirement or neutral packing
Shipping: Guangzhou Port
Payment Term: L/C,T/T ,Western Union,Paypal
Delivery Time: About 2~8 working days after receive your payment
FAQ
|
1. Are you a Manufacture factory? Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 12years experience from 2008 years. |
|
2. What is your main products? Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. |
|
3. Is the sample available? Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS, it will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order. |
|
4. What is your warranty term? Our company offer 1% free spare parts to FCL order.There is a 12months warranty for our export products has run out from the date of the shipment.If warranty ,our customer should pay for the replacement parts. |
|
5. Can i use my own logo and design on products? YES,OEM is welcomed. |
|
6. I can not find out the items what i want from your website, can you offer the products i need? YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item. |
