| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B5020 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Type: | Double Convoluted Air Spring | Warranty: | 1 Year |
|---|---|---|---|
| Function: | Reduce Shock | Shock Absorber Type: | Gas-Filled |
| Quality: | 100% Tested | Color: | Black |
| Plate Dia.: | 231mm | Packing: | Neutral Packing Or Customized |
| High Light: | Contitech FD120-17 Industrial Air Spring,Double Convoluted Bellows Industrial Air Spring |
||
Contitech FD120-17 G3/4 Convoluted Bellows Style,Double Convoluted Air Spring
Products Description
| Item | Air Spring/Shock Absorber Spring/Air Bellows |
| Brand | Guomat/Neutral |
| Model Number | 2B 5020 |
| Material | Rubber And Steel |
| Warranty | 1 Year |
| MOQ | 1 PCS If We Have Stock |
| Package |
(1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package |
| Delivery Time | 2-8 Working Days |
| Payment | T/T, L/C, PayPal, Western Union |
| After Service | (1) Examination Before Shipment (2) Follow Up The Customers' Feedback |
OEM Number
Contitech: FD120-17
Airkraft:113053
:2B-181
Products Technical Data
|
Technical data |
Top Cover Plate Diameter:135mm |
| Bottom Cover Plate Diameter:135mm | |
| Gas Hole / Air inlet:G3/4 | |
| Rubber Bellows MAX Diameter:215mm | |
| Design Height:230 mm ~ 75 mm | |
| Rubber Bellows Natural Height:167mm | |
| Top Cover Plate Screw (Nut) Tooth:2XM8X1.25 | |
| Bottom Cover Plate Screw (Nut) Tooth:2XM8X1.25 | |
| Screw Center Distance of Top Cover Plate:70mm | |
| Screw Center Distance of Bottom Cover Plate:70mm |

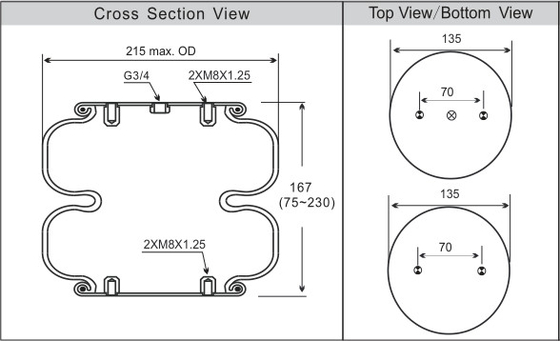

Detail Technical Data At The Below Photo
