Firestone W01-358-6926 Industrial Air Spring Contitech FD200-19504 Industrial Convoluted Air Bag

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B5249

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Firestone Suspension Spring Air Bag	Material:	Made Of High Quality Rubber
Warranty:	1 Year	Size:	OEM Standard
Condition:	Brand New	Package:	Strong Carton
Air Inlet:	1/4NPTF	Plate Diameter:	160mm
Highlight:	W01-358-6926 Industrial Air Spring , FD200-19504 Industrial Air Spring , Contitech Industrial Air Spring

Firestone W01-358-6926 Air Spring /Contitech FD200-19504 Industrial Convoluted Air Bag

Product Information

Type:Air Spring

Part Number: 2B5249

Warranty:12 Months

Color:Black

Place of Origin:Guangzhou,China

Certification:ISO/TS16949:2009

Material:Rubber+Steel

MOQ:1 Pcs

Working temperature:-40°C bis +70°C

Failure testing:≥3 millions

Quality:High-Quality

Packing:Neutral Packing

Cross Reference

Firestone:W01-358-6926,W013586926

Contitech:FD 200-19 504,161299

Triangle : 6325/4504

Original Parts

RR Load : LS20

Firestone W01-358-6926 Air Spring Technical Data

Cover Plate	Top Cover Plate Diameter:160mm
Cover Plate	Bottom Cover Plate Diameter:160mm
Air Inlet	1/4 NPTF
Blind Nut	Screw Center Distance Of Top Cover Plate:89mm
	Screw Center Distance Of Bottom Cover Plate:89mm
	Screw And Gas Hole Diameter Of Top Cover Plate:38mm
	Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
	Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Rubber Bellow	Rubber Bellow Natural Diameter:224mm
	Rubber Bellow MAX Diameter:251mm
	The Working Stroke:MAX 274mm to MIN 95mm
	Maximum Height:274mm
	Minimum Height:95mm
	Compression Height:179mm

We Proudly Offer the Highest Quality Replacement Air Springs that Exceed OEM Requirements.

Specification

Long lasting service on almost all tryck and trailer air suspension.

Absorb road shock to help tractors and rigs last longer.

Cut down on vibration and driver fatigue.

Long trouble free service,constant leve; hauling,quite cushioned ride.

Our advantages

1.A wide range of products

2.Accept OEM order

3.Affordable, safe and efficient logistics services

4.Flexible payment

5.Guaranteed warranty

Our services

1.Reply your inquiry in 24 working hours

2.OEM

3.Exclusive and unique solution can be provide to our customer by our well-trained and professional engineers and staffs

4.Timely delivery

5.Good after-sale service

6.Factory price

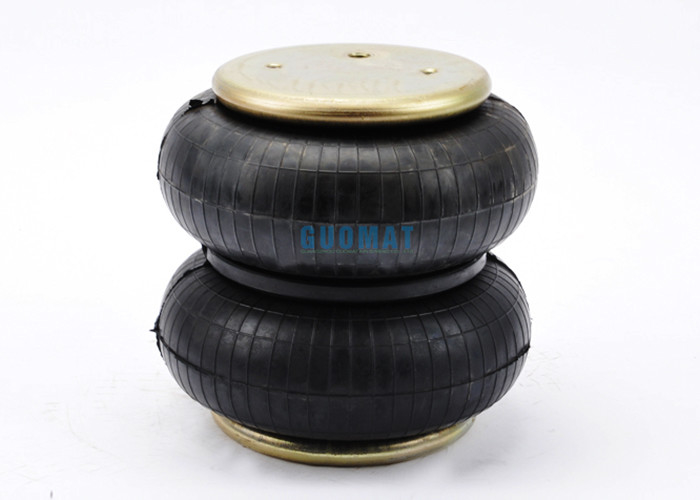

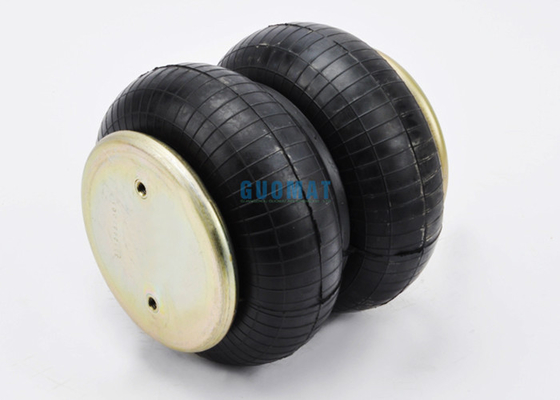

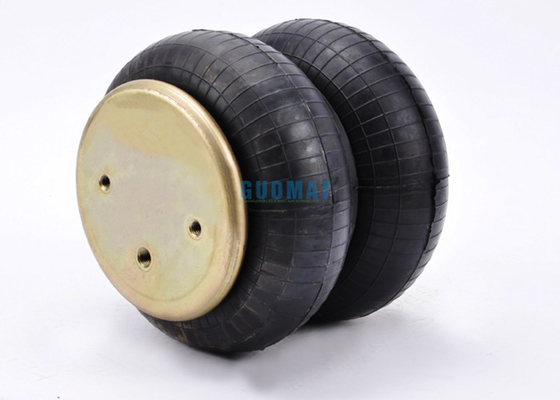

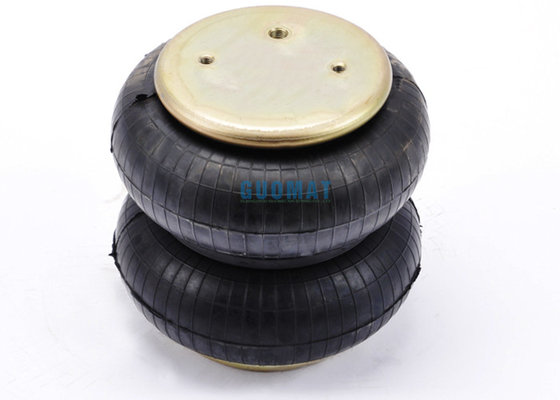

Product Image
