| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FD 40-10 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Spring Material: | Rubber+Steel | Warranty: | 12 Months |
|---|---|---|---|
| Quality: | 100% Tested | Contitech: | FD 40-10 |
| Air Inlet: | G1/8 | Plate Diameter: | 90mm |
| Screw Tooth: | M8X1.25 | ||
| High Light: | Contitech FD 40-10 Industrial Air Spring,Industrial Air Spring Double Convoluted |
||
Contitech FD 40-10 Flexible Air Bellow G1/8 Air Spring Double Convoluted Air Suspension
Product Information
| Part Name | Contitech FD 40-10 Flexible Air Bellow G1/8 Air Spring Double Convoluted Air Suspension |
| OEM NO. | FD 40-10 |
| Brand | GUOMAT/Neutral |
| Material | Rubber+Steel |
| Warranty | 12 Months |
| Certificate | ISO/TS16949:2009 |
| MOQ | 1 PCS |
| Delivery | 2-8 working days after payment |
| Payment Terms | L/C T/T Westrem Union |
| Package | Standard packaging and accept customer's special packaging demand. |
| Our advantages |
Factory directly sale,high quality and competitive price.Professional in the manufacture of air suspension |
| Type |
Air Suspension Bellow , Air Spring , Air Shock Absorber , Air Suspension , Suspension Pneumatique , Air Suspension Repair Kits ,Auto Parts |
Contitech FD 40-10 Double Convoluted Air Suspension Technical Data
| Min.pressure 0 bar |
| Return force to min.height ≤200N |
| Overall weight with clarmped plates 1.1kg |
Vibration isolation-dynamic characteristic values
Design height H:recommended 160mm,minimum 150mm
| Pressure P ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | VoI.［I］ |
| Force ［Load］ ［KN］ | 1.1 | 1.5 | 2.0 | 2.4 | 2.8 | 3.2 | 1.2 |
| Spring Rate ［N/CM］ | 340 | 450 | 580 | 700 | 825 | 950 | |
| Natural Frequency ［HZ］ | 2.8 | 2.8 | 2.7 | 2.7 | 2.7 | 2.7 |
| Pressure P | ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | VoI.［I］ |
| Height H(mm) | 160 | 1.1 | 1.6 | 2.0 | 2.4 | 2.8 | 3.2 | 1.2 |
| 140 | 1.6 | 2.2 | 2.8 | 3.3 | 3.9 | 4.5 | 1.1 | |
| 120 | 2.0 | 2.7 | 3.4 | 4.1 | 4.8 | 5.5 | 0.9 | |
| 100 | 2.3 | 3.1 | 4.0 | 4.8 | 5.6 | 6.4 | 0.7 | |
| 80 | 2.6 | 3.5 | 4.5 | 5.4 | 6.3 | 7.1 | 0.6 |
Advantages:
> Long service life
> Maintenance-free
> Highly operational safety
> Frictionless
> Lateral misalignment possible
> Chemical resistance
Low installation height
In comparison to conventional pneumatic cylinders, ContiTech air actuators contain no piston rod, making it possible to reduce
the design height considerably.This allows compact constructions to be made.
Angular movement
Depending on the type, ContiTech air actuators can be used for tilt angles up to 30°. This enables the designer to simplify the articulated construction.
Low purchase price
The purchasing costs are considerably less than for conventional pneumatic cylinders.And thanks to the long service life and freedom from maintenance,running costs are reduced as well.

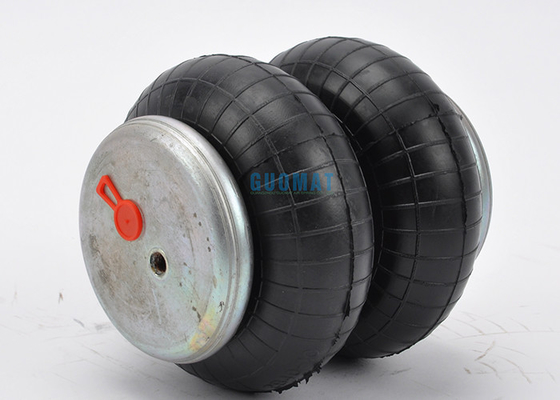

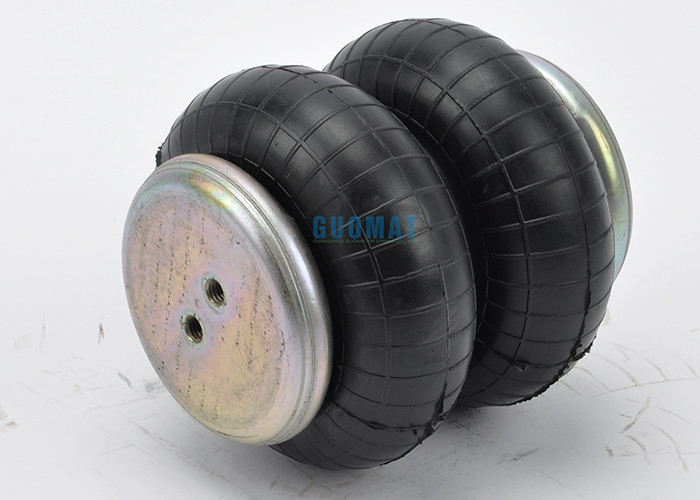

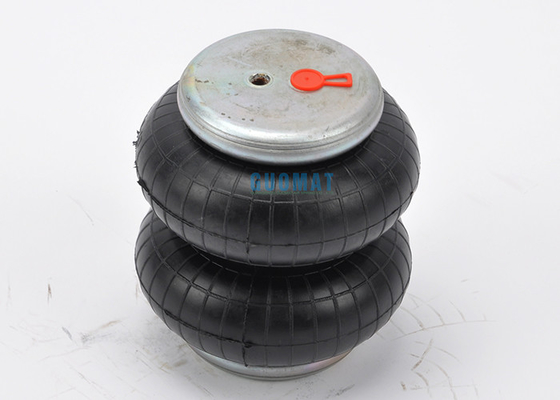

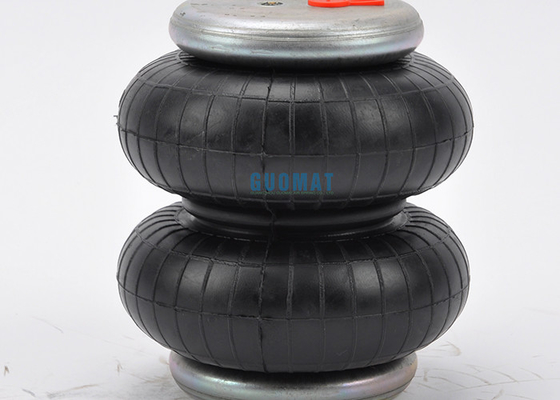

Product Image
FAQ
1. Are you a Manufacture factory?
Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 12years experience from 2008 years.
2. What is your main products?
Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system.
3. Is the sample available?
Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS, it will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
4. What is your warranty term?
Our company offer 1% free spare parts to FCL order.There is a 12months warranty for our export products has run out from the date of the shipment.If warranty ,our customer should pay for the replacement parts.
5. Can i use my own logo and design on products?
YES,OEM is welcomed.
6. I can not find out the items what i want from your website, can you offer the products i need?
YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.
