| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | W01-358-7180/22 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Spring Material: | Natural Rubber And Steel | Other Name: | Air Suspension Shock Absorber |
|---|---|---|---|
| Warranty: | 12 Months | Packing: | Neutral Packing |
| Quality: | 100% Tested | Air Inlet: | 1/4NPTF |
| The Working Stroke: | 81mm~305mm | Plate Diameter: | 231mm |
| High Light: | Contitech Double Convoluted Air Spring,578923309 Double Convoluted Air Spring,FD330-22363 Double Convoluted Air Spring |
||
Newest Contitech Double Convoluted Air Spring Suspension FD330-22363 / 578923309
Product Information
| Cover Plate | Top Cover Plate Diameter:231mm |
| Bottom Cover Plate Diameter:231mm | |
| Air Inlet | 1/4 NPTF |
| Blind Nut | Screw Center Distance Of Top Cover Plate:157mm |
| Screw Center Distance Of Bottom Cover Plate:157mm | |
| Screw And Gas Hole Diameter Of Top Cover Plate:73mm | |
| Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC | |
| Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC | |
| Rubber Bellow | Rubber Bellow MAX Diameter:325mm |
| The Working Stroke:MAX 305mm to MIN 81mm | |
| Maximum Height:305mm | |
| Minimum Height:81mm | |
| Compression Height:224mm |
Cross Reference
Firestone
W01-358-7180/22
Contitech
FD 330-22 363
Goodyear
2B12-425/311
Goodyear
578923309
Triangle
6316
4363
Airkraft
115061
3B-356
Vibracoustic
VSP2B22R7180
EI Ride
8030190
Kwiklok/Todco(Jifflox)
Leland
Sc 2075
Navistar
1685179C1
Hendrickson
1VA1816
Ridewell
1003587180C
SAF Holland
57007180
Watson&Chalinl
AS01541G
01881F
Peerless
0550 00001
Industrial Air Spring
The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.
Who Are Us
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min’s drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
How We Do
1. OEM Manufacturing welcome: Product
2. Sample order is available.
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

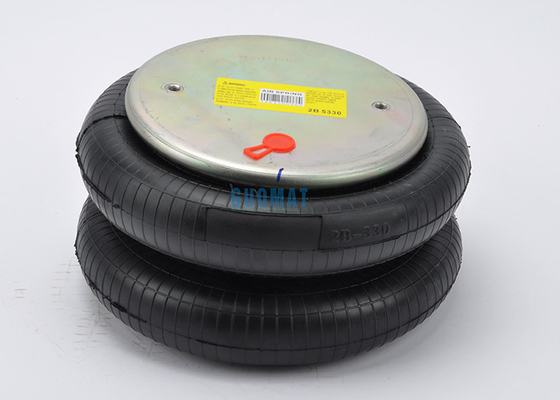

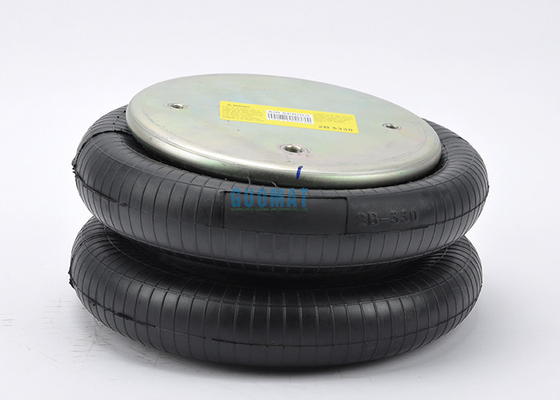

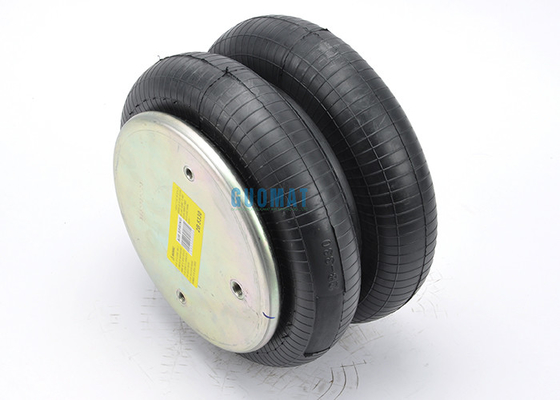

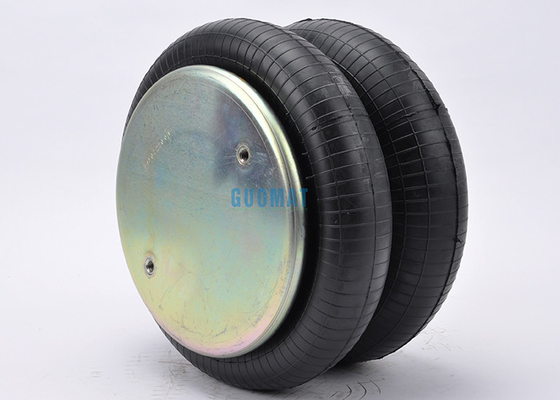

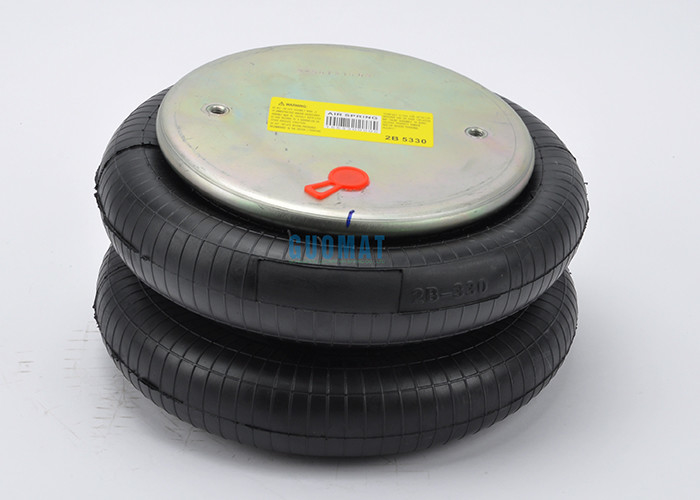

Product Picture
