W01-358-7405 Industrial Air Spring Double Convolute Bellow Type Firestone

W01-358-7405 Industrial Air Spring Double Convolute Bellow Type Firestone

  • W01-358-7405 Industrial Air Spring Double Convolute Bellow Type Firestone
  • W01-358-7405 Industrial Air Spring Double Convolute Bellow Type Firestone
  • W01-358-7405 Industrial Air Spring Double Convolute Bellow Type Firestone
  • W01-358-7405 Industrial Air Spring Double Convolute Bellow Type Firestone
W01-358-7405 Industrial Air Spring Double Convolute Bellow Type Firestone
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: W01-358-7405
Payment & Shipping Terms:
Minimum Order Quantity: 6PCS
Price: $59.9-69.9/pc
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 2-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Type Name: Double Convoluted Air Help Suspension Spring Warranty: 1 Year
Feature: Double Air Spring Contitech: FD 330-22 364
Air Inlet: 1/4-18NPTF Plate Diameter: 231mm
Screw Tooth: 1/2-13UNC
High Light:

W01-358-7405 Industrial Air Spring

,

Firestone Industrial Air Spring

,

Double Convolute Industrial Air Spring

Firestone Airide Replacement Airbag W01-358-7405 Double Convolute Bellow Type Air Spring





Description
Item Air Spring/Shock Absorber Spring/Air Bellows
Brand Guomat/Neutral
Model Number W01-358-7405
Material Rubber And Steel
Warranty 1 Year
MOQ 1 PCS If We Have Stock
Package

(1) Bubble Bag And Brown Carton

(2) Customer Require Packaging

(3) Normal Exported Package

Delivery Time 2-8 Working Days
Payment T/T, L/C, PayPal, Western Union
After Service (1) Examination Before Shipment
(2) Follow Up The Customers' Feedback
Main products we sell Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump



Technical Data
Top Cover Plate Diameter:231mm
Bottom Cover Plate Diameter:231mm
Air Inlet/Gas Hole:1/4-18NPTF

Top Cover Plate Screw (Nut) Tooth With Air Inlet:3/4-16UNF

Top Cover Plate Screw(Nut) Tooth:1/2-13UNC
Bottom Cover Plate Screw(Nut) Tooth:2XM10X1.5

Screw And Gas Hole Diameter Of Top Cover Plate:140mm

Screw Center Distance Of Bottom Cover Plate:157mm

Rubber Bellow MAX Diameter:325mm max.OD

The Working Stroke:MAX 305mm to MIN 81mm

Maximum Height:305mm

Minimum Height:81mm

Compression Height:224mm


Cross Reference
Airspring Supplier:Contitech
Competitor/Supplier Number:FD33022364


Airspring Supplier:Goodyear

Reference:578923309
Competitor/Supplier Number:2B12313



Airspring Supplier:Goodyear
Competitor/Supplier Number:2B12459



Airspring Supplier:Triangle

Reference:6316
Competitor/Supplier Number:4364



Airspring Supplier:arvin Meritor
Competitor/Supplier Number:200981



Airspring Supplier:Dayton Parts
Competitor/Supplier Number:3547405



Airspring Supplier:Hutchens
Competitor/Supplier Number:H1038401



Airspring Supplier:Leland
Competitor/Supplier Number:SC2073



Airspring Supplier:Navistar
Competitor/Supplier Number:1685177C1



Airspring Supplier:SAF Holland
Competitor/Supplier Number:57007405



Suspension Supplier:Suspension Inc.



Firestone Trimmed:W01-358-7405



Advantages

> Long service life

> Maintenance-free

> Highly operational safety

> Frictionless

> Lateral misalignment possible

> Chemical resistance



Low installation height
In comparison to conventional pneumatic cylinders, ContiTech air actuators contain no piston rod, making it possible to reduce
the design height considerably.This allows compact constructions to be made.



Angular movement
Depending on the type, ContiTech air actuators can be used for tilt angles up to 30°. This enables the designer to simplify the articulated construction.



Low purchase price
The purchasing costs are considerably less than for conventional pneumatic cylinders.And thanks to the long service life and freedom from maintenance,running costs are reduced as well.

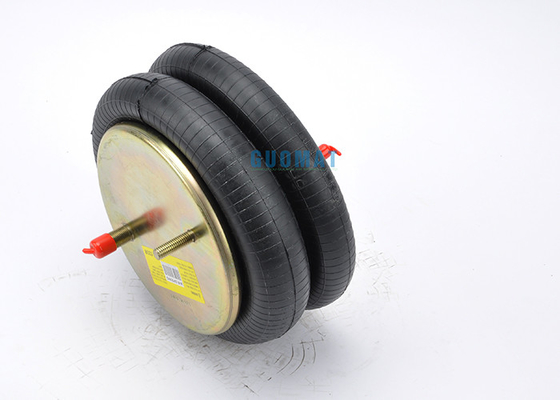

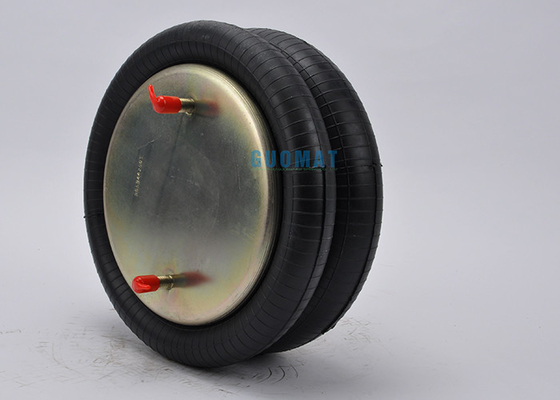

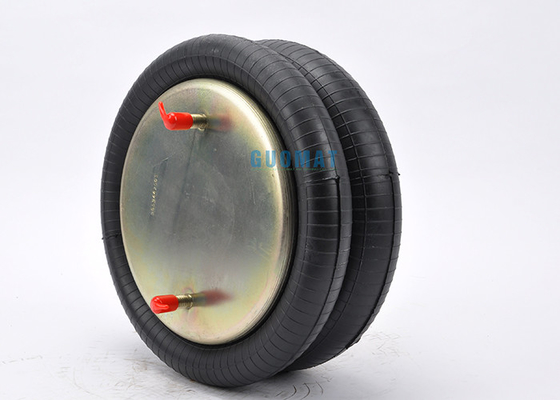

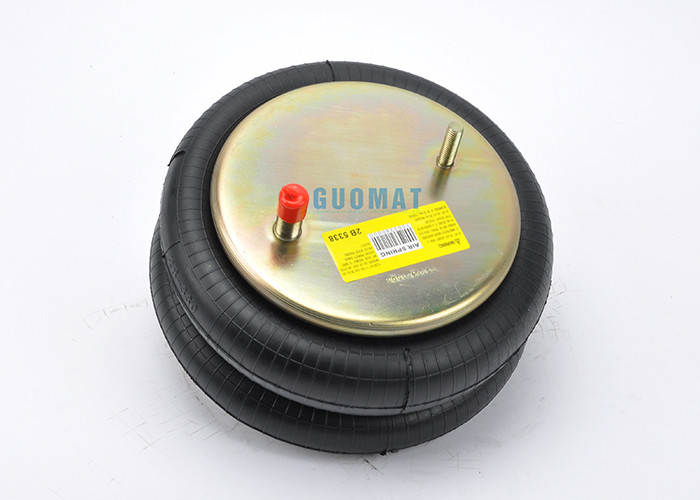

Product Image

W01-358-7405 Industrial Air Spring Double Convolute Bellow Type Firestone 0W01-358-7405 Industrial Air Spring Double Convolute Bellow Type Firestone 1W01-358-7405 Industrial Air Spring Double Convolute Bellow Type Firestone 2W01-358-7405 Industrial Air Spring Double Convolute Bellow Type Firestone 3



FAQ



1. Are you a Manufacture factory?
Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 12years experience from 2008 years.

2. What is your main products?
Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system.



3. Is the sample available?

Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS, it will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.



4. What is your warranty term?
Our company offer 1% free spare parts to FCL order.There is a 12months warranty for our export products has run out from the date of the shipment.If warranty ,our customer should pay for the replacement parts.



5. Can i use my own logo and design on products?
YES,OEM is welcomed.



6. I can not find out the items what i want from your website, can you offer the products i need?
YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.
