Place of Origin: | GuangDong, China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | W01-358-7557 |
Minimum Order Quantity: | 6PCS |
---|---|
Price: | $59.9-69.9/pc |
Packaging Details: | Strong Carton Box Or As Customers Need |
Delivery Time: | 2-8 work days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1000pcs/week |
Spring Material: | Rubber+Steel | Product Warranty: | 12 Months |
---|---|---|---|
Quality: | 100% Tested | Type: | Double Bellows Convoluted Air Spring |
Air Inlet: | 1/4NPT | Screw Tooth: | M12X1.75 |
The Working Stroke: | 104mm ~ 391mm | Plate Diameter: | 289mm |
High Light: | 1/4NPT Industrial Air Spring,Double Bellows Industrial Air Spring,Suspension Industrial Air Spring |
Air Bag System Double Bellows 1/4NPT Air Springs Convoluted Suspension For Industrial Equipment
Description
Air spring is a rubber and fabric bladder that holds air pressure to support a load and isolate passengers and cargo from the shock of motion caused by road irregularities.
As the air pressure increases, the air spring can support more load while the spring rate increases.The larger the air spring, the greater the maximum load it can support.
Warranty Infomattion
One Year-warranty
Cross Reference
Airspring Supplier:Firestone
Competitor/Supplier Number:W01-358-7557
Airspring Supplier:Contitech
Competitor/Supplier Number: FD 530-35 530
Airspring Supplier:Goodyear
Reference: 578923356
Competitor/Supplier Number: 2B14-383
Airspring Supplier:Triangle
Reference: 6412
Competitor/Supplier Number:4530
Airspring Supplier:Reyco
Competitor/Supplier Number:19983-1(21AR,74AR)
Airspring Supplier:Watson&Chalin
Competitor/Supplier Number:AS-0089
Airspring Supplier:Histeer
Competitor/Supplier Number:10316
Airspring Supplier:Twthill
Competitor/Supplier Number:1998301
Cross references are not a guarantee that a part will fit a specific application.
Please check all available information before relying on a cross reference to make a purchase.
Technical Data
Cover Plate | Top Cover Plate Diameter:289mm |
Bottom Cover Plate Diameter:289mm | |
Air Inlet | 1/4 NPT |
Blind Nut | Screw and Gas Hole Distance Of Top Cover Plate:158mm |
Screw Center Distance Of Bottom Cover Plate:158mm | |
Screw Center Distance Of Top Cover Plate:M18X1.5 | |
Top Cover Plate Screw (Nut) Tooth:M12X1.75 | |
Bottom Cover Plate Screw (Nut) Tooth:2XM12X1.75 | |
Rubber Bellow | Rubber Bellow MAX Diameter:353mm |
The Working Stroke:MAX 391mm to MIN 104mm | |
Maximum Height:391mm | |
Minimum Height:104mm | |
Compression Height:287mm |
Detailed product data drawings

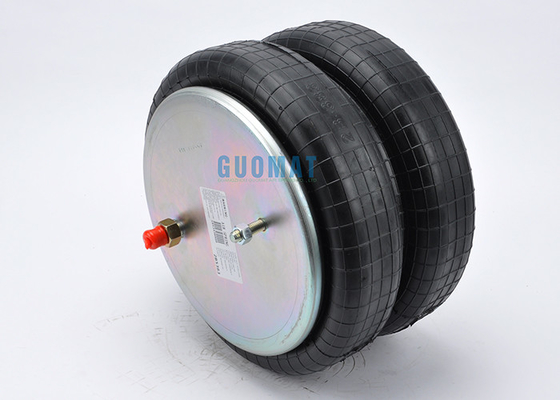

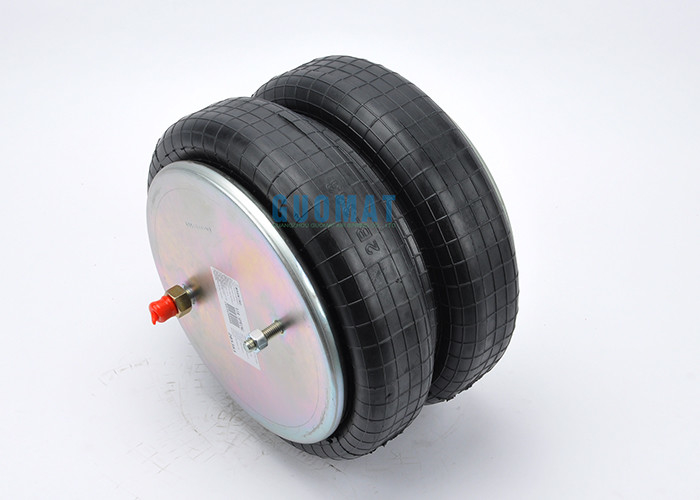

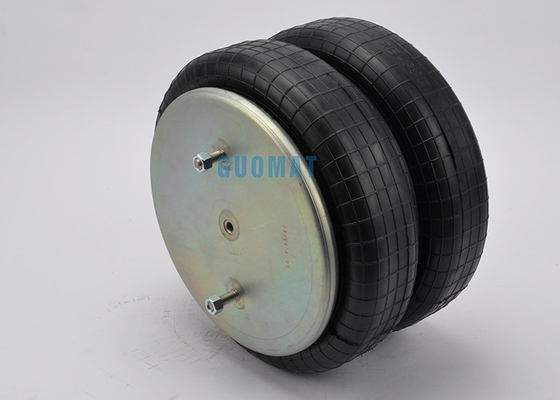

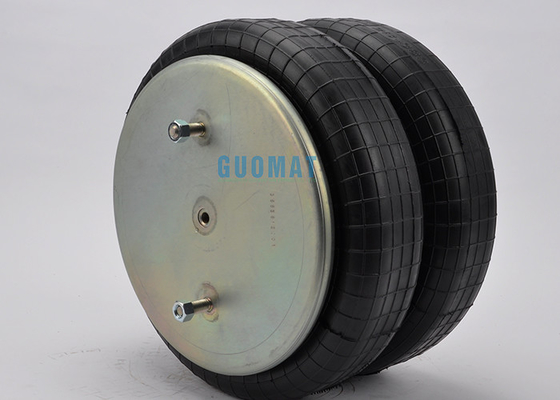

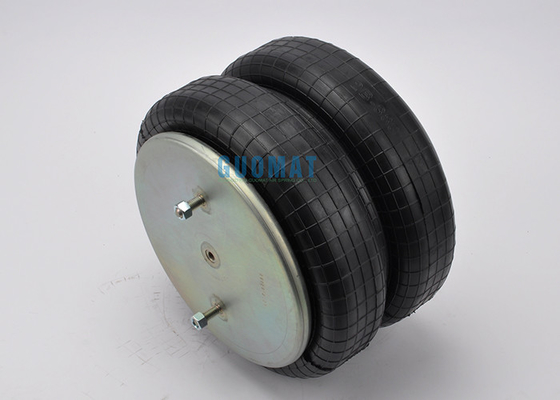

Product details picture
What about our package & shipping terms?
Package: According to customer requirement
Shipping: Guangzhou Port
Payment Term: L/C,T/T,Western Union
Delivery Time: Within 2~8 working days after receive payment
