FD530-35545 Contitech Air Bag Air Balloon W01-358-7781 Convoluted Type Air Spring Ridewell 1003587781C

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	W01-358-7781

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Convoluted Rubber Air Bag	Material:	Made Of High Quality Rubber
Warranty:	1 Year	Price Condition:	FOB China
Sample:	Available	Operation:	Gas-filled
Air Inlet:	1/4NPT	Plate Diameter:	160mm
Highlight:	FD530-35545 Contitech Air Bag , W01-358-7781 Contitech Air Bag , Convoluted Type Air Spring

Contitech Air Bag FD530-35545/Air Balloon W01-358-7781/Convoluted Type Air Spring Ridewell 1003587781C

Air Spring OEM Number

Firestone:W01-358-7781,W013587781,7781

Contitech:FD 530-35545,FD53035545,FD 530 355 45

Original Manufacturer

Ridewell:1003587781C

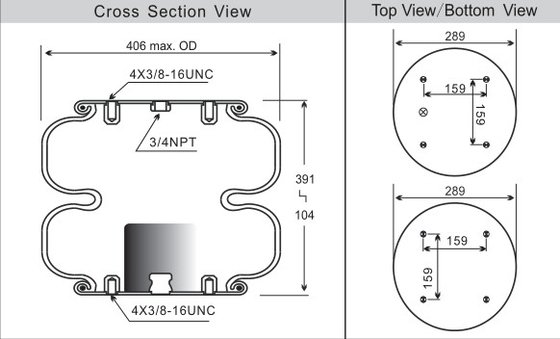

Air Spring Drawings And Parameter

FD530-35545 Contitech Air Bag Air Balloon W01-358-7781 Convoluted Type Air Spring Ridewell 1003587781C 0

Double Firestone Suspension Spring Technical Data
Nut/Blind Nut
Top Cover Plate Screw (Nut) Tooth	4X3/8 -13 UNC
Screw Distance of Top Cover Plate	157mm
Bottom Cover Plate Screw (Nut) Tooth	4X3/8-16UNC
Screw Center Distance of Bottom Cover Plate	159mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet	3/4NPT
Cover Plate
Top Cover Plate Diameter	289mm
Bottom Cover Plate Diameter	289mm
Rubber Bellow
Rubber Bellows MAX Diameter	406mm
The Working Stroke	MAX 391mm to MIN 104 mm
Maximum Height	391mm
Minimum Height	104mm
Compression Height	287mm

Our Advantage

The rubber is of high quality.
The plate is the steel,coated Zn,high capacity and anti-corrosion.
All air spring types can be used at a working temperature between -40°C and 70°
We also have our strict series quality control.
OEM Manufacturing welcome: Product
Sample order is available.
We will reply you for your inquiry in 24 hours.
After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

Common Applications for Air Spring

Various applications for the vehicle industry such as steering damping, engine vibration damping, belt tensioning damping for engines and on driver seats in commercial vehicles, etc.
On household products such as washing machines
Special shock absorbers for bicycles
On commercial lawn movers
In the medical equipment industry ie. on wheelchairs

Air Spring Delivery Time

Generally The Goods Will be send immediately by the Air/the Sea/the Express(DHL,UPS,FEDEX...)in 2-8 working days after receive your payment.And will keep you informed any news about your order process.

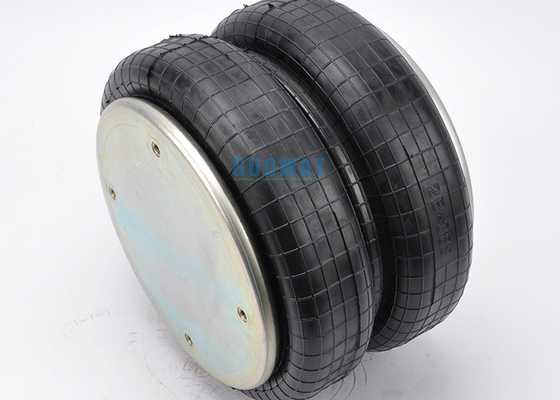

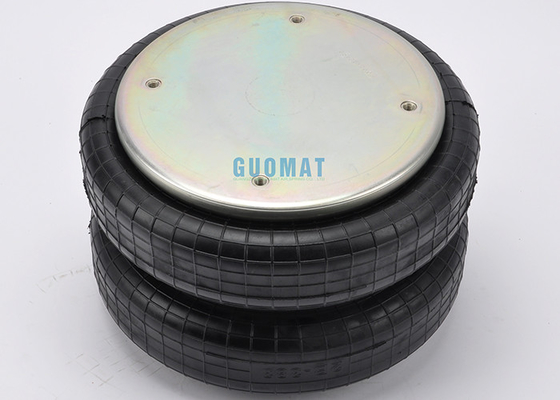

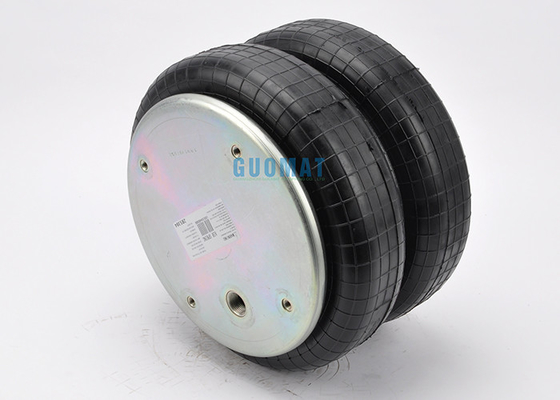

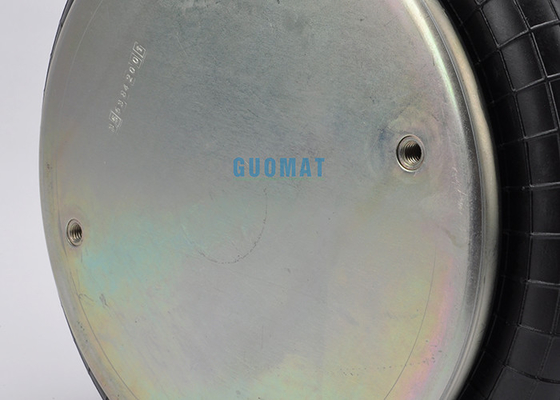

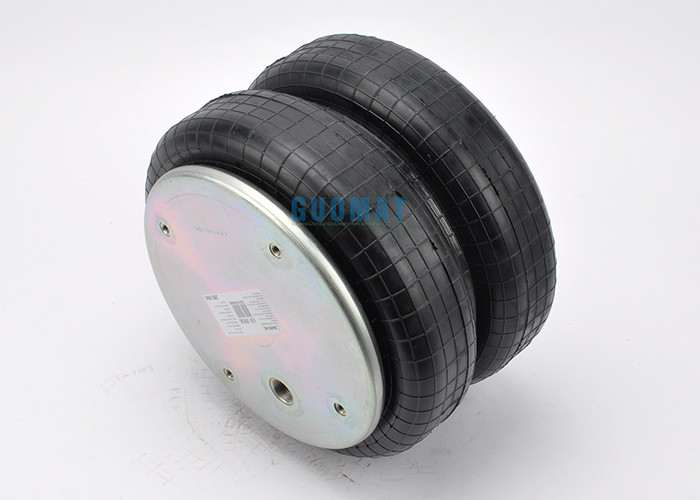

Air Spring Picture

FD530-35545 Contitech Air Bag Air Balloon W01-358-7781 Convoluted Type Air Spring Ridewell 1003587781C 1

FAQ

1. Q: How to order ?

A: Step 1, please tell us what model and quantity you need;

Step 2,then we will make a PI for you to confirm the order details;

Step 3,when we confirmed everything ,you can arrange the payment;

Step 4,finally we deliver the goods within the stipulated time.

2. Q: When will make delivery ?

A: Delivery time is 2-8woring days.

3. After-sales service

1 year warranty for all kinds of products;

If you have any questions after receiving the goods,please feel free to contact me,as an experienced manufacturer ,you can rest assured of the quality and after-sales service.

4. Payment

T/T,Western Union,L/C

5. Transportation

Transportation by DHL,UPS,EMS,Fedex,Air freight,Sea freight.
