| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FD70-13 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Product Material: | Made Of High Quality Rubber And Steel | Warranty: | 12 Months |
|---|---|---|---|
| Contitech: | FD70-13 | Sample: | Available |
| Operation: | Gas-filled | Air Inlet: | G1/4 |
| Plate Diameter: | 105mm | ||
| High Light: | FD70-13 Suspension Air Spring,Double Convoluted Suspension Air Spring |
||
FD70-13 Air Ride Suspension Air Spring Double Convoluted Rubber Airbag/Shock Absorber
Product Introduction
GUOMAT air spring are made of high-quality materials.The air spring bellows is vulcanized as a reliable permanent combination of elastomers,reinforcing plies and embedded metal parts.
Thanks to their special product characteristics in comparison to pneumatic or hydraulic cylinders,air actuators are ideal for a wide variety of applications.A broad product range and many special designs open the way to a diverse scope of application possibilities.
Type Name:Double Convoluted Bellows Air Spring
Warranty:12 Months
Airspring Supplier:Contitech
Competitor/Supplier Number:FD70-13
Brand:GUOMAT/Neutral
MOQ:1 PCS
Package:(1)Bubble bag and brown carton
(2)Customer require packaging
(3)Normal exported package
Delivery time:2-8 working days after receive your payment
After service:(1)Examination before shipment
(2)Follow up the customers'feedback
Technical Data For FD 70-13
|
Top Cover Plate Diameter:105mm/4.13 inches Bottom Cover Plate Diameter:105mm/4.13 inches Top Cover Plate Screw(Nut) Tooth:2XM8X1.25 Botom Cover Plate Screw(Nut)Tooth:2XM8X1.25 Screw Center Distance of top Cover Plate:44.5mm/1.75 inches Air Inlet Type:Metric Air Inlet:G1/4 Rubber Bellows Diameter:146mm/5.75 inches The Working Stroke:162mm/ 6.38 inches Min Temperature:-76℉ Max Temperature:158℉ Bellows Type:Double Convoluted |

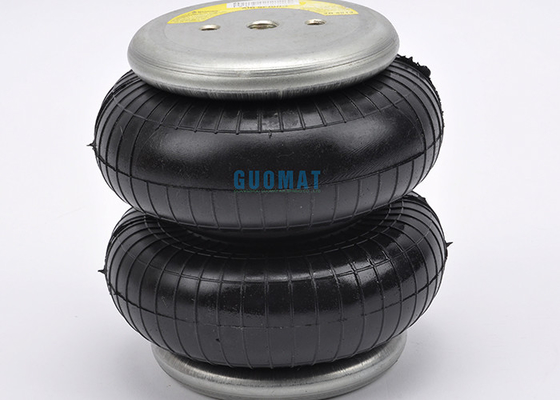

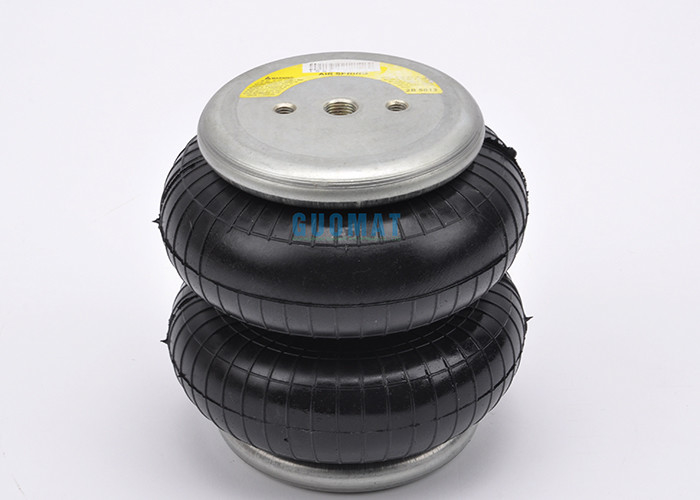

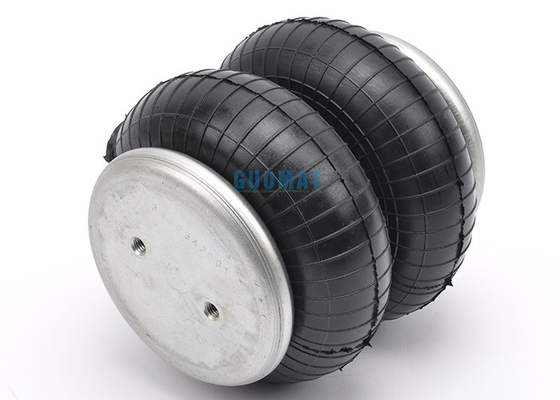

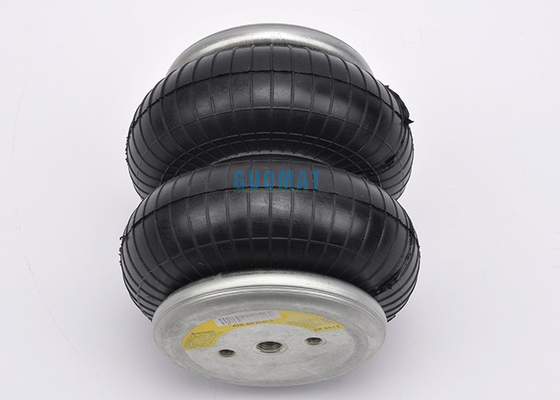

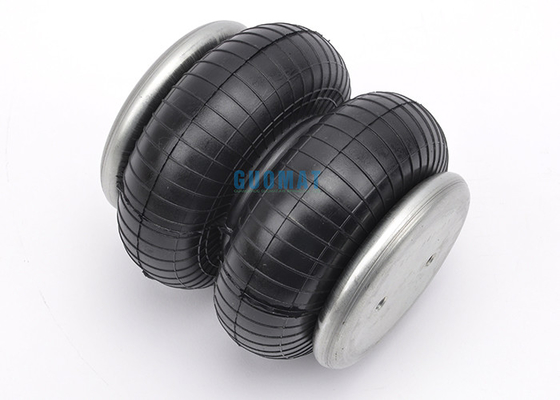

Product Picture
