| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B 300 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber + Steel | Warranty: | 12 Months |
|---|---|---|---|
| OEM: | Available | Sample: | Available |
| Operation: | Gas-filled | Air Inlet: | 1/4NPTF |
| Plate Diameter: | 231mm | ||
| High Light: | Firestone Industrial Air Spring,Triple Convoluted Industrial Air Spring,1/4NPTF Industrial Air Spring |
||
Firestone Industrial Air Spring Triple Convoluted Bellows Gas 1/4NPTF Air Suspension System
Product Information
Manufacturers:Firestone
Application:Triple convoluted air spring
Technical Data
| Cover Plate | Top Cover Plate Diameter:231mm |
| Bottom Cover Plate Diameter:231mm | |
| Air Inlet | 1/4 NPTF |
| Blind Nut | Screw Center Distance Of Bottom Cover Plate:157.5mm |
| Screw And Gas Hole Distance Of Top Cover Plate:157.5mm | |
| Top Cover Plate Screw (Nut) Tooth:M12X1.75 | |
| Bottom Cover Plate Screw (Nut) Tooth:2XM12X1.75 | |
| Rubber Bellow | Rubber Bellow MAX Diameter:330mm |
| The Working Stroke:MAX 460mm to MIN 117mm | |
| Maximum Height:460mm | |
| Minimum Height:117mm | |
| Compression Height:343mm |
Who We Are
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min’s drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
About us
We always focus on the development of automotive components, and provide you with quality products and competitive prices.
If you are interested in our products, we are pleased to offer you our best quotation. If you have any question, please do let me know
We are looking forward to establishing business with you.
Packing Details
1. One piece in a poly bag.1piece in a carton.
2. Mark the product numbers and the QTY outside the carton.
3. As your requirement.
Marking
1. Be possible to mark your logo as request.
2. No specified, will mark our Logo as standard.
3. OEM is accepted.

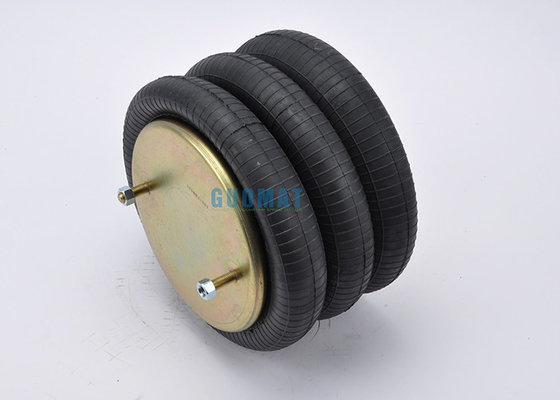

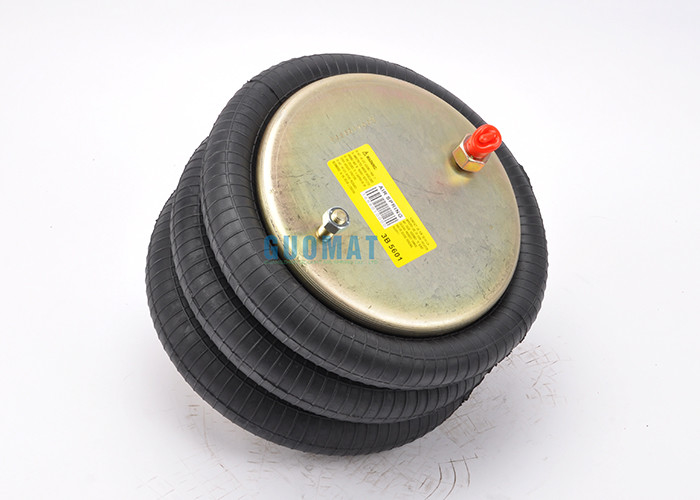

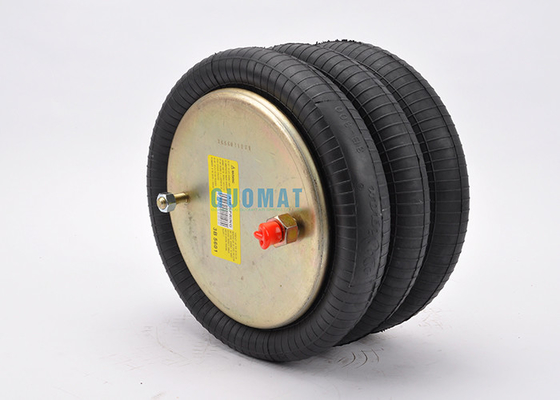

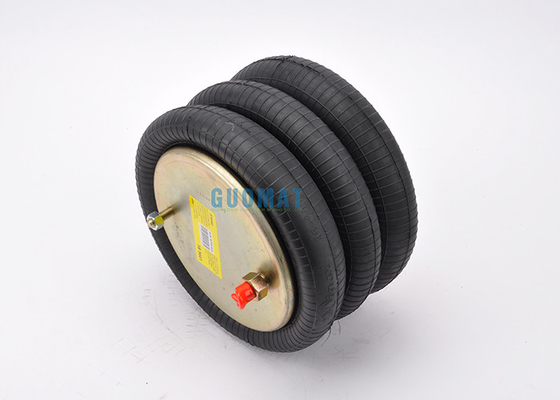

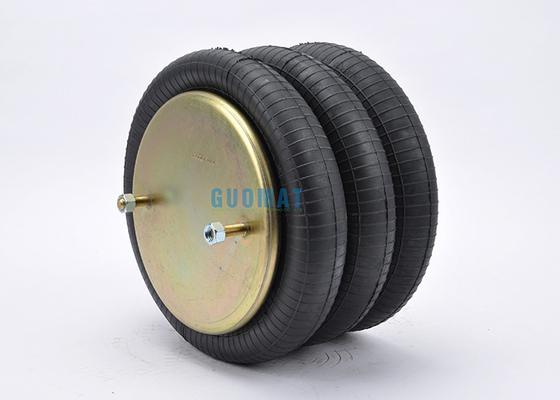

Product Image
