Gas Filled Triple Convoluted Suspension Air Spring For Truck

Gas Filled Triple Convoluted Suspension Air Spring For Truck

  • Gas Filled Triple Convoluted Suspension Air Spring For Truck
  • Gas Filled Triple Convoluted Suspension Air Spring For Truck
  • Gas Filled Triple Convoluted Suspension Air Spring For Truck
  • Gas Filled Triple Convoluted Suspension Air Spring For Truck
  • Gas Filled Triple Convoluted Suspension Air Spring For Truck
  • Gas Filled Triple Convoluted Suspension Air Spring For Truck
Gas Filled Triple Convoluted Suspension Air Spring For Truck
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 3B 6383
Payment & Shipping Terms:
Minimum Order Quantity: 6PCS
Price: $69.9-79.9/pc
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 2-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Spring Type: Air Spring, Airbags, Air Suspension Spring Bellows Style: Triple Convoluted Air Spring
Warranty: 12 Months Operation: Gas-Filled
Gas Inlet: 1/4NPT Plate Dia.: 289mm
Package: Brown Cartons Dimension: OEM/Standard Size
High Light:

Triple Convoluted Suspension Air Spring

,

Gas Filled Suspension Air Spring

,

Truck Suspension Air Spring

Hot Sale Triple Convoluted Air Spring Air Rubber Spring Suspension Spring Fit For Truck



Product Description

  • OEM Supplying Experience
  • Fast And Steady Product Delivery
  • All Range Of Vehicles Model Covered
  • Constant And Stable Quality Endurance

Thanks to the air suspension, passengers do not feel bumps on the road. In addition, the car does not bank when the driver is cornering, since the suspension constantly keeps the optimal position of the car body. This makes driving much easier.



Item Air Spring, Airbags, Air Suspension Spring
Bellows Type Triple Convoluted Air Spring
Working temperature -40°C bis +70°C
Failure testing ≥3 millions
Top Cover Plate Diameter 289mm
Bottom Cover Plate Diameter 289mm
Gas Hole / Air inlet 1/4NPT
Rubber Bellows MAX Diameter 353mm
The Working Stroke 381mm
Top Cover Plate Screw (Nut) Tooth M12X1.25/M18X1.25
Bottom Cover Plate Screw (Nut) Tooth 2XM12X1.25
Screw and Air Hole Distance of Top Cover Plate 158mm
Screw Center Distance of Bottom Cover Plate 158mm



Warning and Tips



Maintenance of the air springs, Vehicle Check-List

  • Check the air lines and devices of leakage and that they turns freely.
  • Check the bellows bearing for damage, correct fastening, deformation, sharp edges.
  • Check the shock absorbers for operation and impermeability as well as tightness and bearing.
  • Periodically, check nuts and bolts for proper torque. For specific recommendations see manufacturer's manual.
  • Check axle suspension, trailing arms and rods for wear.
  • Check height control valve to see that it is functioning properly. A properly maintained valve will save unneeded maintenance expense.
  • Routine inspection of all of the above according to manufacturer's instructions, will extend the life of your vehicle and reduce your overall maintenance expense.

Air Spring Installation



  • Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
  • Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
  • If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.

Important tips to remember when installing a new unit



  • Check levelling valve, linkage and transmission parts for wear and damage and if necessary replace the damaged parts.
  • Check that the shock absorber for leakages and take a shock absorber test. A defective shock absorber must be replaced.
  • Once the air lines are disconnected, check their entire length for cracks or other damage. Replace worn parts.
  • With the air spring removed, other parts of the air suspension become more accessible. Check for wear or damage of the frame hangers, trailing arm bushings, torque rods, the trailing arms and the air spring mounts. When it is necessary, also replace parts.
  • Check bearing for air spring bellow for external damage, deformation, sharp edges and correct fastening.
  • Before installing the new unit, clean the air spring mounting plates to ensure proper attachment to the suspension.
  • Always use new attaching bolts for the installation and observe the tightening torques. Never use old bolts, because these can fall out.
  • Check the linkage of the levelling valve to see that it is functioning properly. Under load, the linkage should move from the neutral position up to the intake position. This lets air into the springs, which brings the arm back to the neutral position. This lets air into the springs, which brings the arm back to the neutral position. That opens the exhaust valve, allowing air to escape until the arm returns to the neutral position. Then check the driving level.

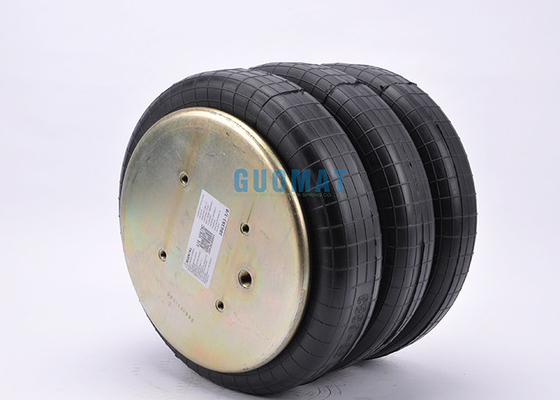

Product Picture

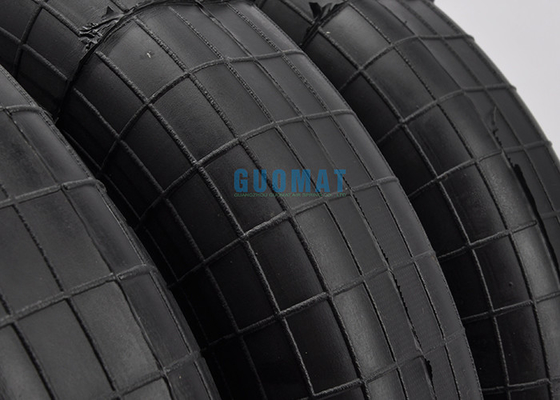

Gas Filled Triple Convoluted Suspension Air Spring For Truck 0

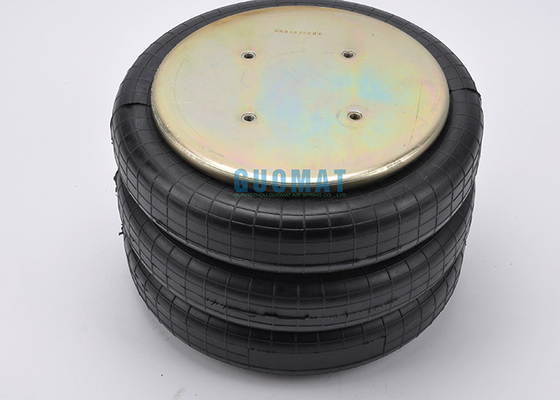

Gas Filled Triple Convoluted Suspension Air Spring For Truck 1

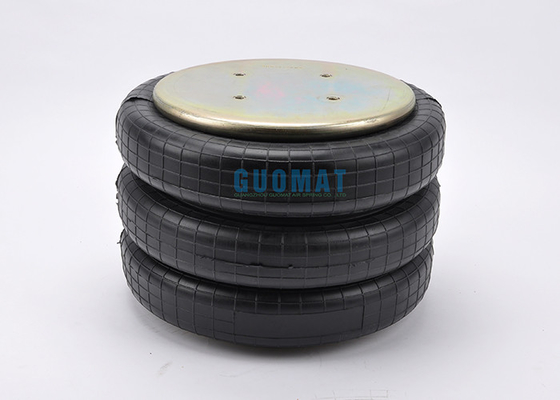

Gas Filled Triple Convoluted Suspension Air Spring For Truck 2

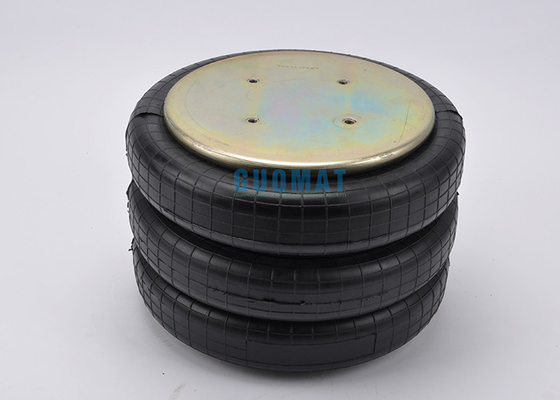

Gas Filled Triple Convoluted Suspension Air Spring For Truck 3

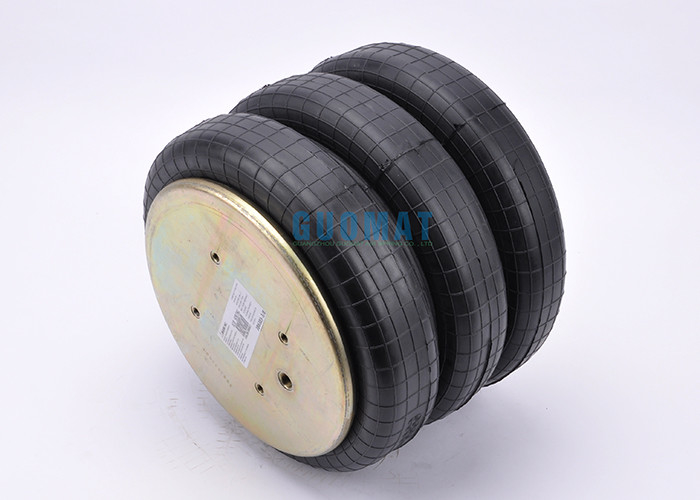

Gas Filled Triple Convoluted Suspension Air Spring For Truck 4
