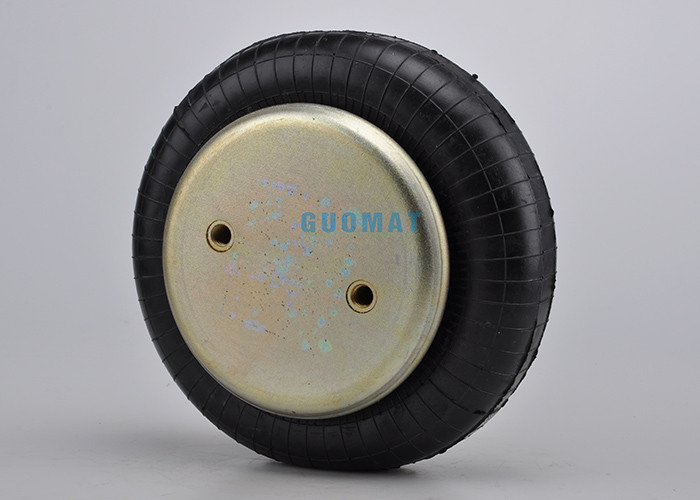

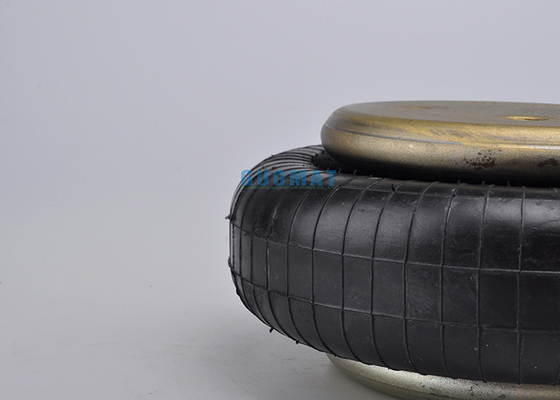

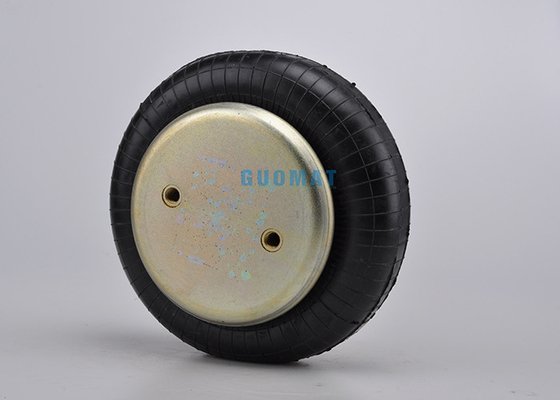

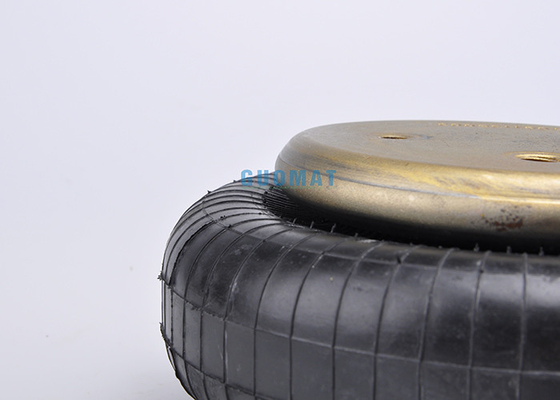

Single Convoluted Suspension Air Spring Goodyear 1B8-550 For Industrial Equipment

Single Convoluted Suspension Air Spring Goodyear 1B8-550 For Industrial Equipment

  • Single Convoluted Suspension Air Spring Goodyear 1B8-550 For Industrial Equipment
  • Single Convoluted Suspension Air Spring Goodyear 1B8-550 For Industrial Equipment
  • Single Convoluted Suspension Air Spring Goodyear 1B8-550 For Industrial Equipment
  • Single Convoluted Suspension Air Spring Goodyear 1B8-550 For Industrial Equipment
Single Convoluted Suspension Air Spring Goodyear 1B8-550 For Industrial Equipment
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1B8-550
Payment & Shipping Terms:
Minimum Order Quantity: 6PCS
Price: $49.9-59.9/pc
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 2-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Product Name: Air Spring/Airbag/Air Suspension Warranty: 1 Year
Material: Rubber + Steel Position: Rear/front
Plate Diameter: 135mm Packing: Brown Carton
Condition: 100% Brand-new Operation: Gas-filled
High Light:

Single Convoluted Suspension Air Spring

,

1B8-550 Suspension Air Spring

,

Goodyear Suspension Air Spring

Single Convoluted Suspension Air Spring Goodyear 1B8-550 For Industrial Equipment

Product Details
Type:Single Convoluted Air Suspension Airbag
Model Number:1B8X550
Cross Number:Goodyear 1B8X550
Condition:Brand New
Material:Rubber + Steel
Warranty:12 Months
Delivery Time : About 2 - 8 working days after receiving your payment


Goodyear 1B8X550 Airbag Parameter

Cover Plate Top Cover Plate Diameter:135mm
Bottom Cover Plate Diameter:135mm
Air Inlet 1/4-18NPT
Blind Nut Screw Center Distance Of Top Cover Plate:70mm
Screw Center Distance Of Bottom Cover Plate:70mm
Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Rubber Bellow Rubber Bellow MAX Diameter:220mm
The Working Stroke:109mm


Deflection(Height min):50mm
Deflection(Height max):140mm
Working stroke:90mm
Measurement d max:230mm

Applications

Various applications for the vehicle industry such as steering damping, engine vibration damping, belt tensioning damping for engines and on driver seats in commercial vehicles, etc.

  1. On household products such as washing machines
  2. Special shock absorbers for bicycles
  3. On commercial lawn movers
  4. In the medical equipment industry ie. on wheelchairs
