| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | F-200-2R |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Spring Name: | Double Bellows Convoluted Air Spring | Warranty: | 1 Year |
|---|---|---|---|
| Material: | Natural Rubber | Function: | Reduce Shock |
| Shock Absorber Type: | Gas-Filled | Quality: | 100% Tested |
| Color: | Black | Maximum Internal Pressure(Mpa): | 0.88Mpa |
| High Light: | Double Bellows Rubber Air Spring,Hydraulic Punch Press Rubber Air Spring,Double Bellows Convoluted Air Spring |
||
Rubber Air Spring S-200-2 Double Bellows Convoluted Airbag For Hydraulic Punch Press
Quick Details
Product Name:Double Convoluted Air Spring
Size:Standard
Part Number:F-200-2R
Warranty:12 Months
Color:Black
Net Weight:2.5KG
Gross Weight:3.0KG
Package Size:120mmX260mmX260mm
Compressed height:65mm
Maxumum Height:130mm
Full Stroke:65mm
Working Medium:Water,Air
Technical Data Purchase Order Data
| GUOMAT NO. | Reference NO. | Height H(mm) | Common Maximum Travel (mm) | Compression Max Outside Diameter (mm) | Effective Area (cm2) | Volume (L) | ||
| Design Height (mm) | Max Height (mm) | Min Height (mm) | ||||||
| F-200-4 | S-200-4 | 206 | 311 | 111 | ±70 | 260 | 315 | 7.2 |
| F-200-3 | S-200-3 | 152 | 232 | 82 | ±53 | 260 | 315 | 5.2 |
| F-200-2 | S-200-2 | 98 | 148 | 53 | ±35 | 260 | 315 | 3.2 |
| GUOMAT NO. | Reference NO. |
Load (KN) |
Dynamic Spring Constant (n/mm) |
Natural Vibration Frequency (Hz) |
Maximum Internal Pressure (MPa) |
Internal Pressure Failure(MPa) |
| F-200-4 | S-200-4 | 15.4 | 177 | 1.7 | 0.88 | 2.9-3.9 |
| F-200-3 | S-200-3 | 15.4 | 235 | 2.0 | 0.88 | 2.9-3.9 |
| F-200-2 | S-200-2 | 15.4 | 373 | 2.5 | 0.88 | 2.9-3.9 |
Who We Are
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min’s drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
What We Do
We always focus on the development of automotive components, and provide you with quality products and competitive prices.
If you are interested in our products, we are pleased to offer you our best quotation. If you have any question, please do let me know.
We are looking forward to establishing business with you.
Packing Detail
1. One piece in a poly bag.1piece in a carton.
2. Mark the product numbers and the QTY outside the carton.
3. As your requirement.
Marking
1. Be possible to mark your logo as request.
2. No specified, will mark our Logo as standard.
3. OEM is accepted.

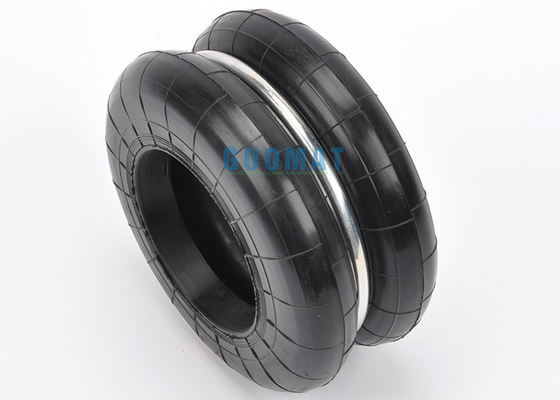

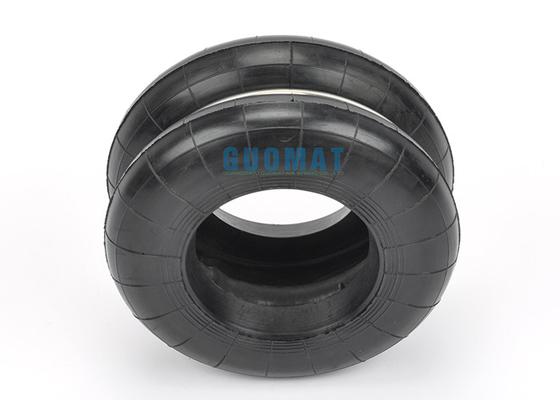

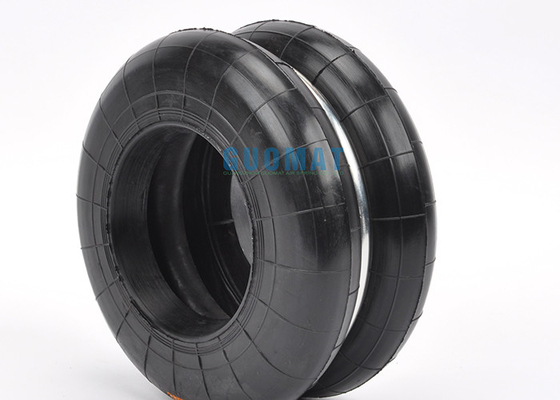

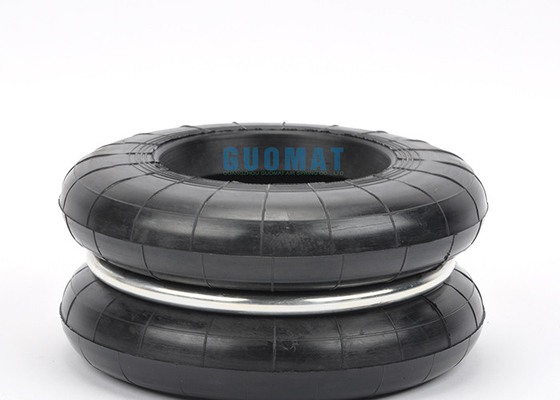

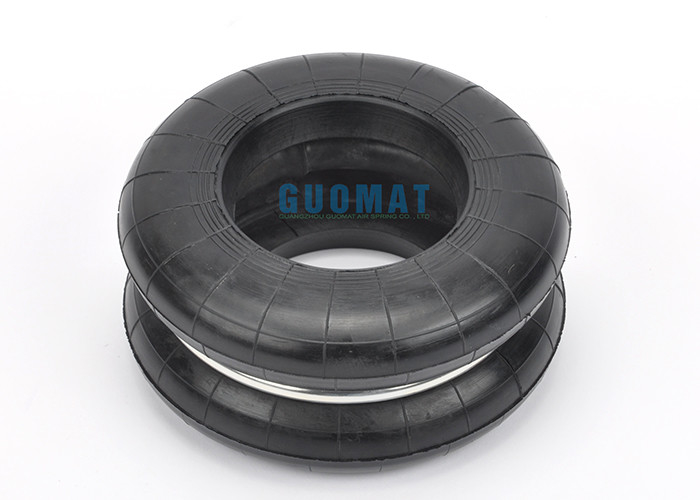

Product Images
FAQ
|
1. Are you a Manufacture factory? Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 12years experience from 2008 years. |
|
2. What is your main products? Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. |
|
3. Is the sample available? Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS, it will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order. |
|
4. What is your warranty term? Our company offer 1% free spare parts to FCL order.There is a 12months warranty for our export products has run out from the date of the shipment.If warranty ,our customer should pay for the replacement parts. |
|
5. Can i use my own logo and design on products? YES,OEM is welcomed. |
|
6. I can not find out the items what i want from your website, can you offer the products i need? YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item. |
