| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | F-450-3 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Name: | Convoluted Air Spring | Spring Material: | Rubber |
|---|---|---|---|
| Warranty: | 12 Months | Color: | Black |
| Design Height: | 160mm | Max Height: | 270mm |
| Min Height: | 90mm | Hight Light: | Triple Industrial Convoluted Air Spring/Airbag |
| High Light: | 90mm Height Air Help Suspension Airbag,Rubber Bellows Air Help Suspension Airbag,Triple Industrial Convoluted Air Spring |
||

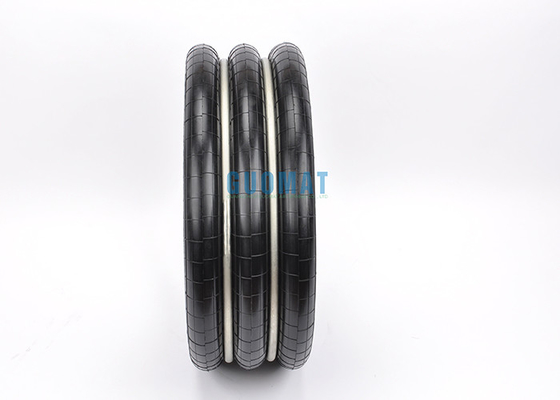

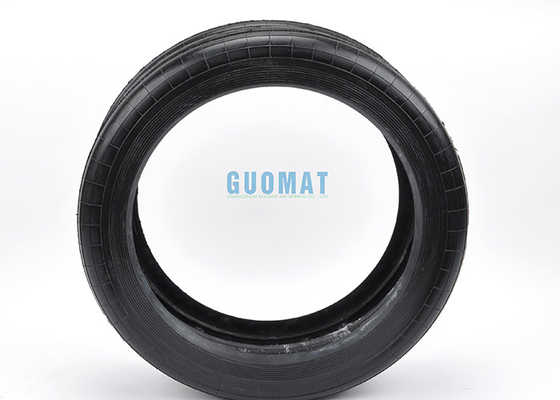

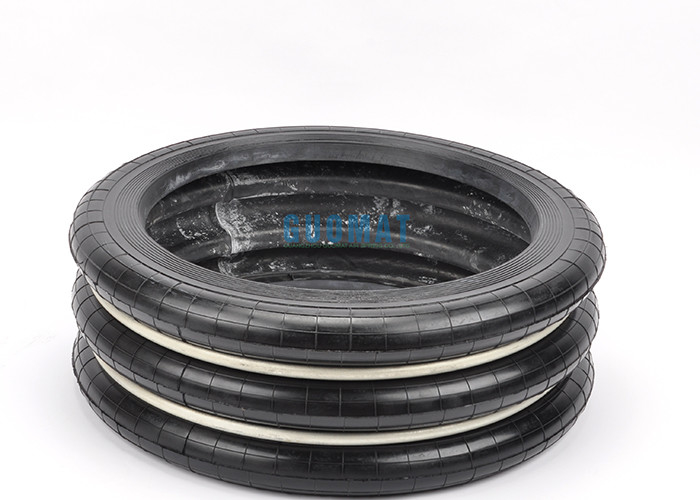

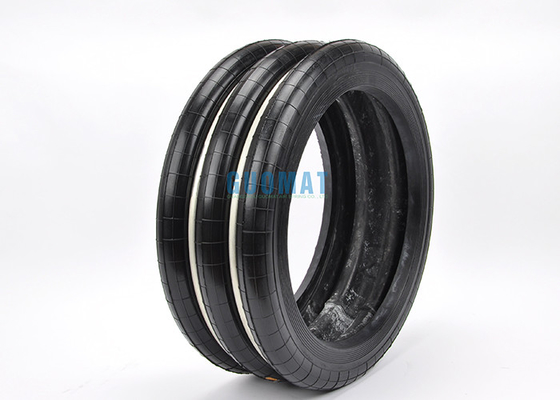

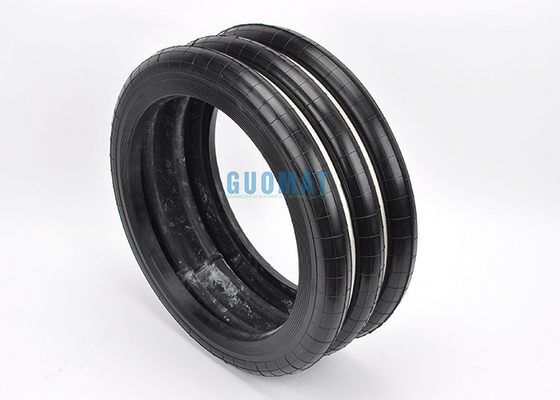

Rubber Bellows Style Air Cushion Reference S-450-3 Air Help Suspension Airbag
Product Information
GUOMAT Number:F-120-2,F-160-2,F-200-3,F-240-3,F-300-3,
F-350-3,F-400-3,F-400-4,F-450-3,F-500-4,
F-300-2,F-240-4,F-300-4,F-350-2,F-500-3,
F-500-5,F-600-2,F-600-3,F-600-4,F-600-5
Reference Number:S120-2,S160-2,S200-3,S240-3,S300-3
S350-3,S400-3,S400-4,S450-3,S500-4
S300-2,S240-4,S300-4,S350-2,S500-3
S500-5,S600-2,S600-3,S600-4,S600-5
F-450-3 Bellows type Air Suspension Spring Technical Data
| GUOMAT NO. | Reference NO. | Design Height (mm) | Max Height (mm) |
Min Height (mm) |
Common Maximum Travel (mm) | Compression Max Outside Diameter (mm) |
Effective Area (cm2) |
Volume(L) |
| F-450-5 | S450-5 | 276 | 456 | 156 | ±113 | 510 | 1590 | 43.6 |
| F-450-4 | S450-4 | 218 | 363 | 123 | ±90 | 510 | 1590 | 33.9 |
| F-450-3 | S450-3 | 160 | 270 | 90 | ±68 | 510 | 1590 | 24.3 |
| F-450-2 | S450-2 | 102 | 172 | 57 | ±45 | 510 | 1590 | 14.7 |
| F-450-1 | S450-1 | 72 | 117 | 40 | ±30 | 550 | 1590 | 11.9 |
| GUOMAT NO. | Reference NO. |
Load (KN) |
Dynamic Spring Constant (n/mm) |
Natural Vibration Frequency (Hz) |
Maximum Internal Pressure (MPa) |
Internal Pressure Failure(MPa) | ||
| F-450-5 | S450-5 | 80.0 | 588 | 1.4 | 0.69 | 3.9-4.9 | ||
| F-450-4 | S450-4 | 80.0 | 755 | 1.6 | 0.69 | 3.9-4.9 | ||
| F-450-3 | S450-3 | 80.0 | 1040 | 1.8 | 0.69 | 3.9-4.9 | ||
| F-450-2 | S450-2 | 80.0 | 1687 | 2.3 | 0.69 | 3.9-4.9 | ||
| F-450-1 | S450-1 | 80.0 | 2295 | 2.7 | 0.69 | 2.9-3.9 |
With the continuous development of air springs, more and more people choose to use air springs to ensure the expected effect of shock absorption. The use of air springs is also becoming more and more extensive.
一,Application of air spring in lifting machinery and equipment
Traditional lifting machinery and equipment use cylinders or hydraulic transmission systems to lift things, requiring large installation sites, difficult production and processing, and heavy net weight, which can easily cause leakage and inconvenient maintenance. After using the lifting electronic device as the lifting mechanical equipment, the traditional shortcomings of the lifting mechanical equipment are solved, no equipment maintenance management is required, the application period is long, and the operation process is convenient and quick to disassemble.
二,. Air springs are used in punching machinery and equipment
The air spring has the advantages of high frequency shock absorption, sound insulation and low natural vibration frequency, which can very well protect against vibration and ensure the reliability and stability of the base of the vibration equipment and the automatic control system.
