| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | F-500-3 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Material: | Hight Quality Rubber | Warranty: | 12 Months |
|---|---|---|---|
| Color: | Black | Height: | 160mm |
| Volume: | 30.3L | Max Pressure: | 0.69Mpa |
| Function: | Reduce Vibration And Lift | Hight Light: | Punch Air Spring,Bellows Type Air Springs |
| High Light: | F500-3 Air Suspension Bellows Repair Kits,Industrial Air Suspension Bellows Repair Kits |
||

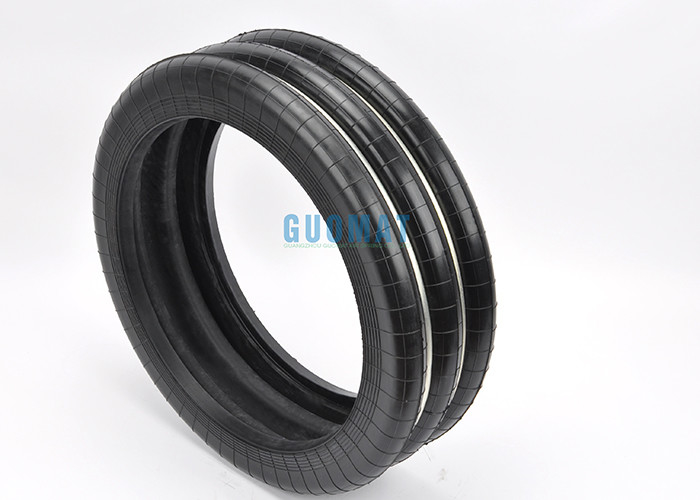

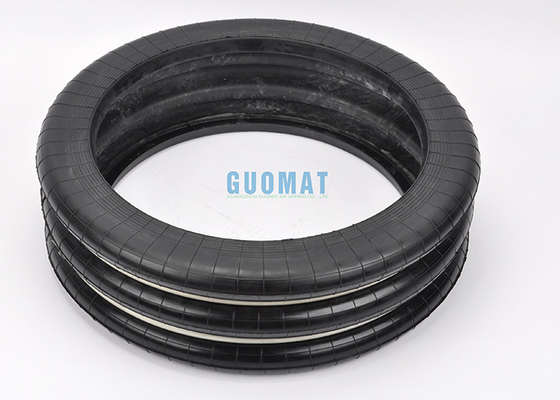

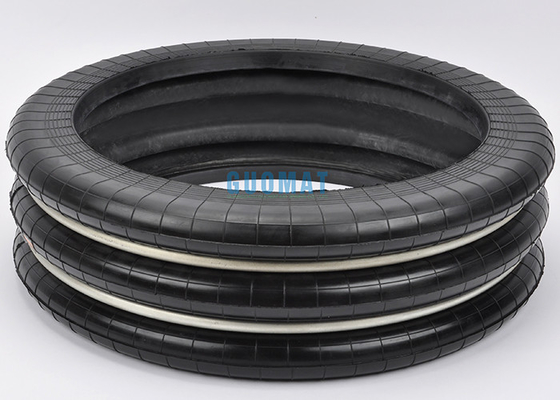

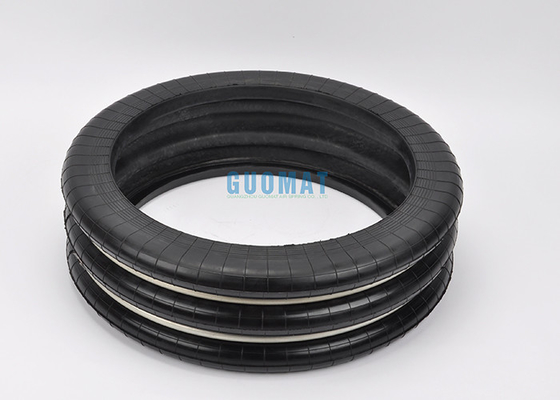

Industrial Punch Shock Absorber F500-3 Air Suspension Bellows Repair Kits For Machine
Product Information
| Product | Name | Punch Air Spring |
| Parts Number | F-500-3 | |
| Warranty | 12 Months | |
| Use | Industrial Machine | |
| Bellow Type | Triple Convoluted | |
| Sample | Acceptable | |
| Color | Black | |
| Payment | L/C,T/T,Western Union | |
| Delivery | About 2-8 working days receiving your payment | |
| Package | Strong Carton Box Or As Customers Need | |
| Shipping | Ship by air ,by sea,by express(DHL,Fedex,UPS...) | |
The Following Is The Cover Plate Detailed Data Drawing
Technical Data Purchase Order Data
Design Height:160mm
Max Height:270mm
Min Height:90mm
Common Maximum Travel:±68
Compression Max Outside Diameter:560mm
Effective Area:1965cm2
Volume:30.3L
Load:96.3KN
Dynamic Spring Constant:1255n/mm
Natural Vibration Frequency:1.8Hz
Maximum Internal Pressure:0.69Mpa
Internal Pressure Failure:3.9-4.9Mpa
