| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | F-600-4 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Type Name: | Quadruple Air Spring For Industrial Punching Equipment | Spring Material: | Hight -Quolity Rubber |
|---|---|---|---|
| Warranty: | 12 Months | Product Size: | OEM Standard |
| Product Type: | Gas-filled Type | Product Color: | Black |
| Application: | Industrial Punching Machine | Function: | Reduce Shock |
| High Light: | Punching Press Industrial Air Spring,Convoluted Bellows Industrial Air Spring |
||

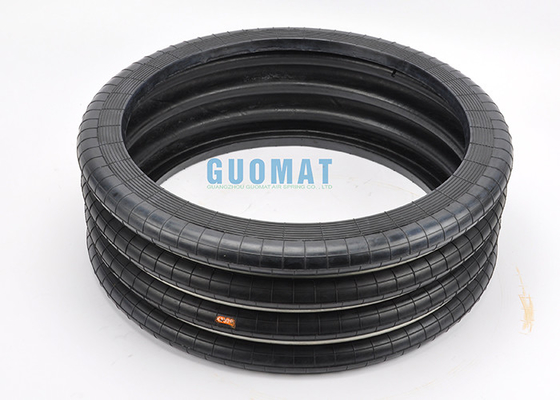

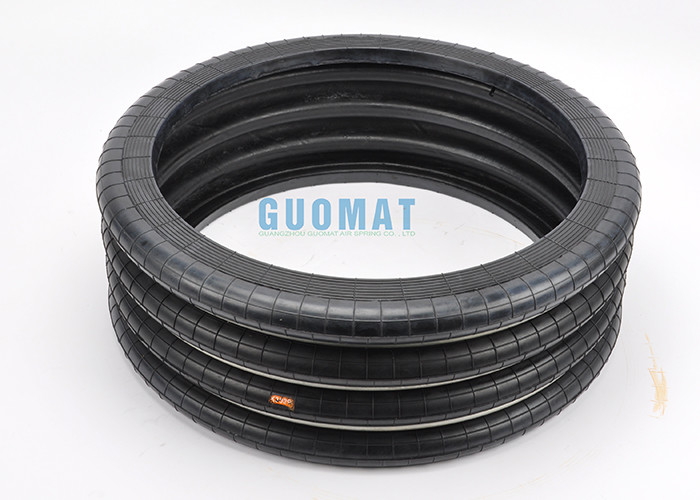

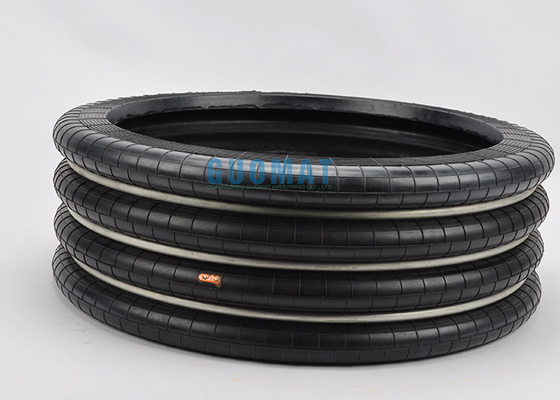

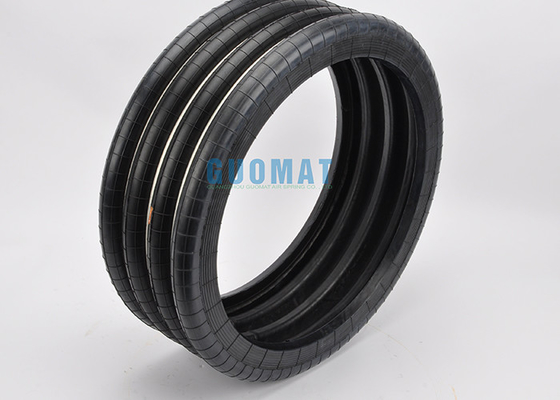

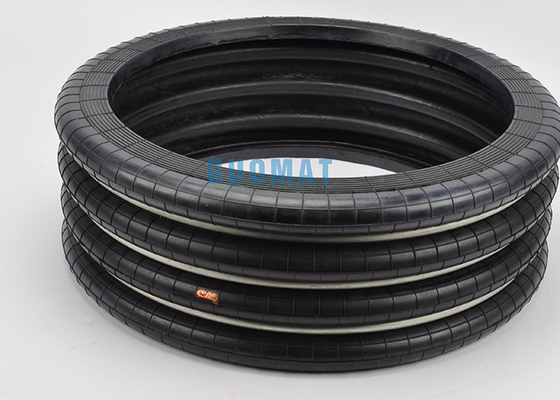

Industrial Punching Press Convoluted Bellows Airbag,Punching Machine Air Spring
Product Description
| Product Name | Air Spring |
| Certification | ISO/TS16949:2009 |
| Packing | Neutral Packing or Customized |
| Material | Natural Rubber |
| Payment | LC/TT/Western Union |
| Brand | GUOMAT/Customized |
| Warranty | 12 Months |
| Condition | 100% Brand New |
| Delivery | 2-8 Working day |
| OEM | Acceptable |
| Application | Apply For Industrial Punching Press |
| Sample | Available |
Technical Data
| GUOMAT NO. | Reference NO. | Height H(mm) |
Common Maximum Travel (mm) |
Compression Max Outside Diameter (mm) |
Effective Area (cm2) |
Volume (L) |
||
| Design Height (mm) | Max Height (mm) |
Min Height (mm) |
||||||
| F-600-5 | S-600-5 | 276 | 456 | 156 | ±113 | 660 | 2830 | 76.6 |
| F-600-4 | S-600-4 | 218 | 363 | 123 | ±90 | 660 | 2830 | 59.9 |
| F-600-3 | S-600-3 | 160 | 270 | 90 | ±68 | 660 | 2830 | 43.2 |
| F-600-2 | S-600-2 | 102 | 172 | 57 | ±45 | 660 | 2830 | 26.3 |
| F-600-1 | S-600-1 | 72 | 122 | 40 | ±30 | 700 | 2830 | 19.0 |
| GUOMAT NO. | Reference NO. |
Load (KN) |
Dynamic Spring Constant (n/mm) |
Natural Vibration Frequency (Hz) |
Maximum Internal Pressure (MPa) |
Internal Pressure Failure (MPa) |
| F-600-5 | S-600-5 | 138.3 | 1010 | 1.3 | 0.69 | 3.9-4.9 |
| F-600-4 | S-600-4 | 138.3 | 1285 | 1.5 | 0.69 | 3.9-4.9 |
| F-600-3 | S-600-3 | 138.3 | 1765 | 1.8 | 0.69 | 3.9-4.9 |
| F-600-2 | S-600-2 | 138.3 | 2073 | 2.3 | 0.69 | 3.9-4.9 |
| F-600-1 | S-600-1 | 138.3 | 4197 | 2.8 | 0.69 | 3.9-4.9 |
F-600-4 Metal Cover Drawing
Product Advantage
Company Advantage
We focus on the production of air spring has been 15 years which is Chinese the largest manufacturer of air springs.
We have Truck air spring,Bus air spring ,Car Suspension air spring , Industrial air spring and Air Suspension Compressor .
OEM and Sample order are available.
We will reply you for your inquiry in 24 hours .
After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
