| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 360306H-3 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber + Steel | Warranty: | 12 Months |
|---|---|---|---|
| Bellows Type: | Triple Convoluted Type | Sample And OEM: | Available |
| Operation: | Gas-filled | Weight: | 8.25Kg |
| Plate Diameter: | 347mm | ||
| High Light: | Suspension Air Ride Spring,360306H-3 Air Ride Spring,Rubber Bellow Convoluted Air Ride Spring |
||

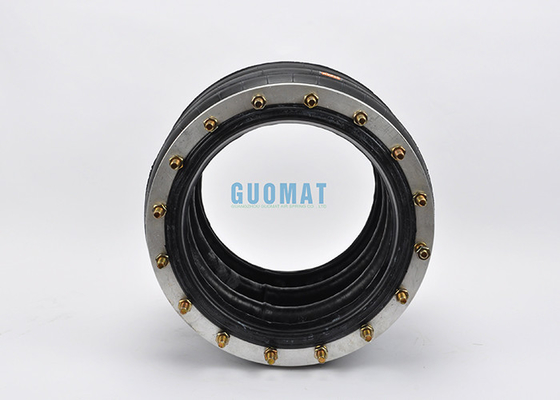

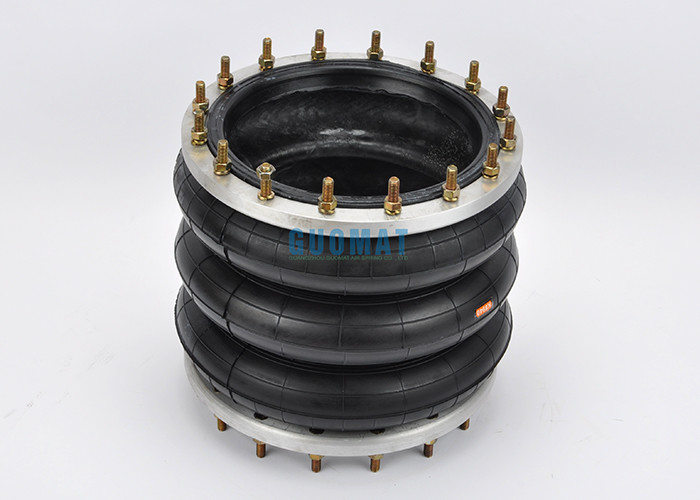

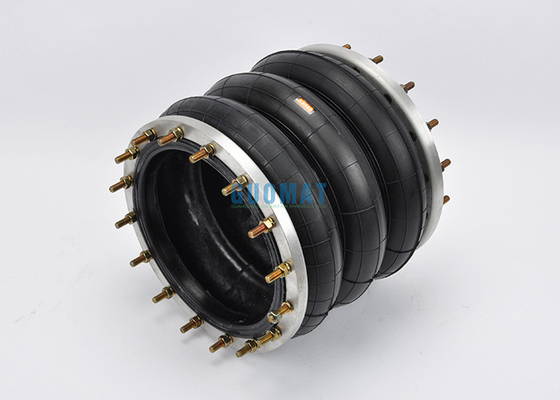

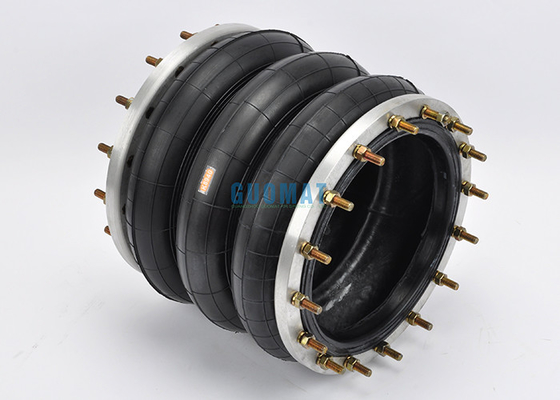

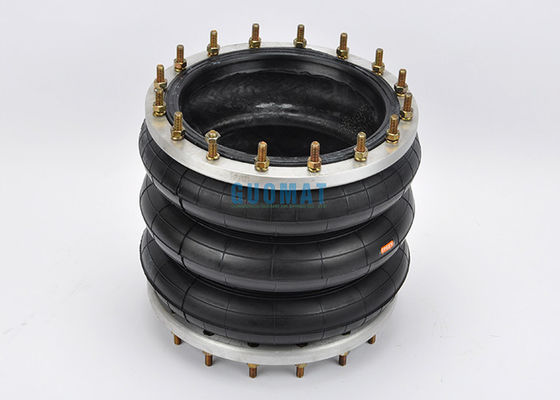

360306H-3 Air Suspension Air Ride,High Quality Rubber Bellow Convoluted Shock Absorber
Product Information
GUOMAT Part Number:360306H-3
| Spring Center Path | Minimum Height | Maximum | The Working Stroke |
| φ280 | 122mm | 360mm | 238mm |
|
Spring Part Weight:----------------------------------------------------------8.25KG Customer self-configured sealing plate |
|||
Air Spring 360306H-3 Technical Data
Spring Cover Plate
Top And Bottom Cover Plate Diameter:347mm

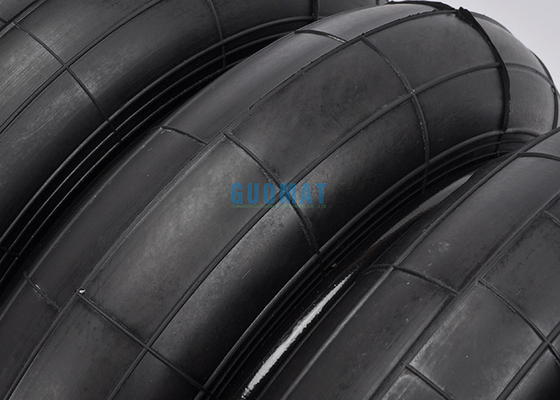

Spring Rubber Bellows
Max Rubber Bellow Diameter:380mm
The Natural Height:306mm
Bellows Type:Triple Bellows
Maximum Height:360mm
Minimum Height:122mm
Stroke Height:238mm

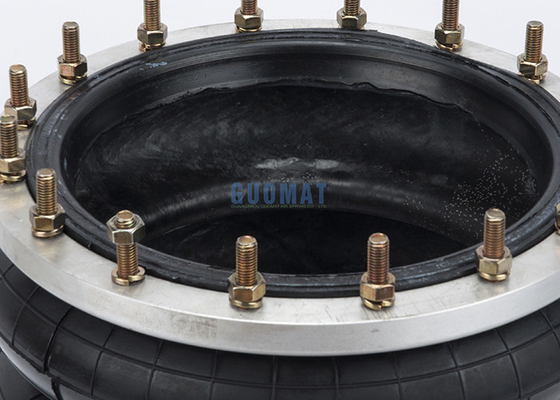

Spring Screw Or Bolt
Top Cover Plate Bolt:M10
Nut Quantity:16 pcs
Bottom Cover Plate Bolt:M10
Nut Quantity:16 pcs
GUOMAT H-Type Air Spring
| Product Number | Maximum outer diameter of flange | Bolt center distance | Number of bolts | Effective length of bolt |
| 580214H-2 | 568mm | 530mm | 24 | 33mm |
| 630262H-2 | 610mm | 560mm | 30 | 33mm |
| 680262H-2 | 642mm | 605mm | 32 | 33mm |
| 200206H-2 | 180mm | 152mm | 8 | 26mm |
| 250260H-2 | 183mm | 145mm | 8 | 26mm |
| 255230H-2 | 213mm | 175mm | 8 | 26mm |
| 255322H-2 | 203mm | 175mm | 8 | 26mm |
| 310306H-2 | 300mm | 263mm | 12 | 26mm |
| 330306H-2 | 322mm | 284mm | 14 | 26mm |
| 360306H-2 | 347mm | 309mm | 16 | 33mm |
| 380316H-2 | 358mm | 320mm | 16 | 33mm |
| 400312H-2 | 396mm | 358mm | 18 | 33mm |
| 430370H-2 | 398mm | 360mm | 18 | 33mm |
| 480312H-2 | 476mm | 438mm | 20 | 33mm |
| 520312H-2 | 508mm | 470mm | 24 | 33mm |
| 580306H-2 | 568mm | 530mm | 24 | 33mm |
| 630376H-2 | 610mm | 560mm | 30 | 33mm |
| 680376H-2 | 642mm | 605mm | 32 | 33mm |
Compared with spring, air spring shock absorbers have the following advantages:
Air Spring Application
It is use in a wide variety of actuation and vibration isolation.
With time-tested designs incorporating fabric-reinforced or natural rubber flex-member construction and corrosion-protected and retainers, Air Springs provide superior quality and performance.
As an actuator, Air Springs can provide either linear or angular motion.
These air springs offer a favorable stroke-to-compressed-height ratio when compared to air cylinders, and can accept a wide variety of actuation media such as air, water, nitrogen or anti-freeze.
