| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 7008 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Material: | Nature Rubber + High-Quality Steel | Spring Type: | Gas Air Spring |
|---|---|---|---|
| Product Quality: | 100% Tested | Color: | Black |
| After-Sales Service: | 12 Months | Flexmember: | 578-91-3-301 |
| Contitech NO.: | 64596 | Firestone NO.: | W013587008 |
| High Light: | 1B12-313 Goodyear Air Spring,Goodyear Air Spring Single Convoluted,Contitech 64596 Goodyear Air Spring |
||

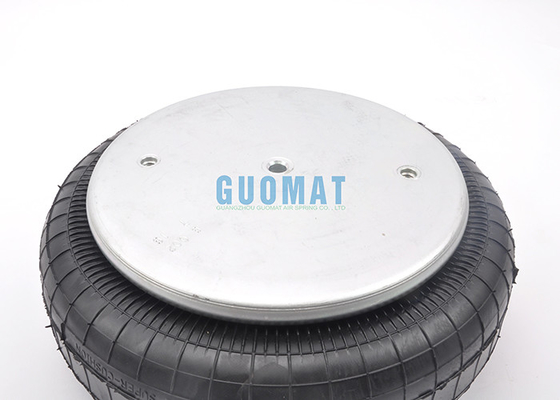

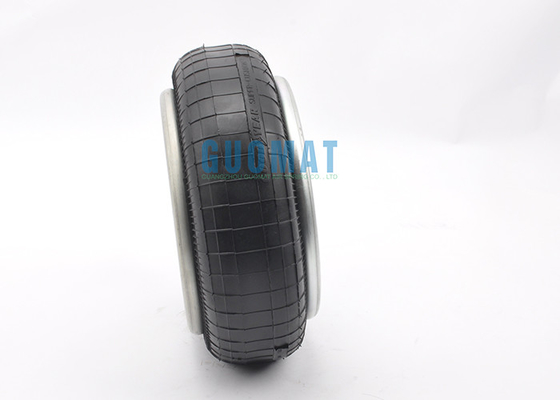

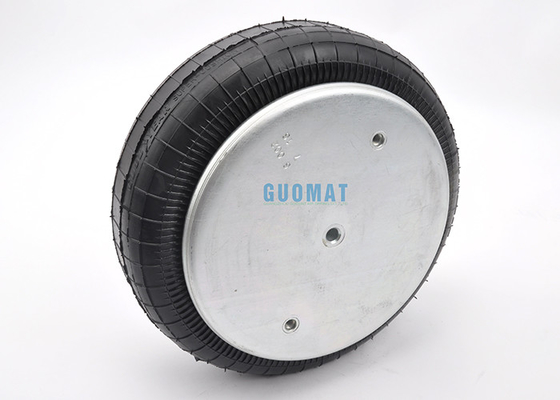

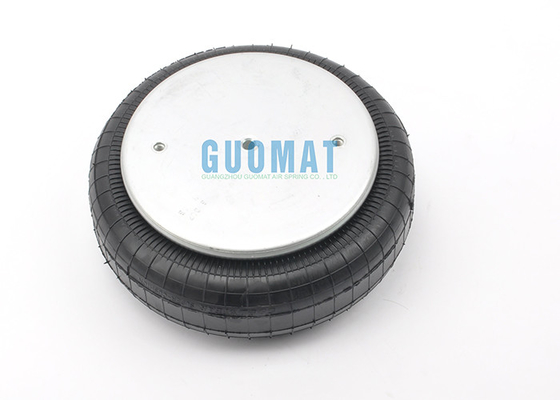

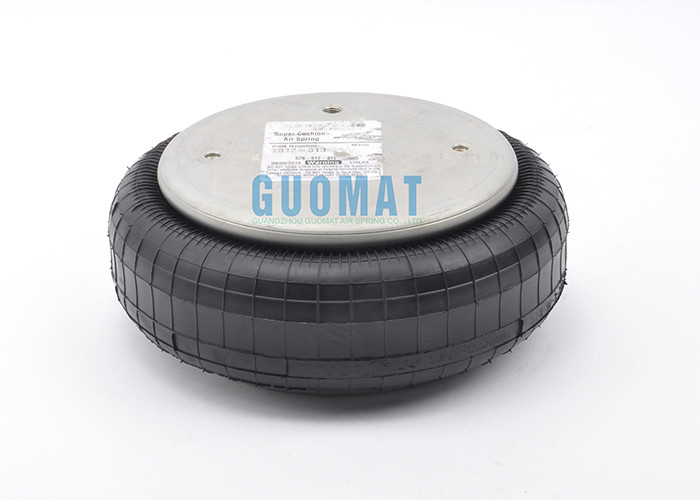

Goodyear 1B12-313 Single Convoluted Air Suspension Airbag Contitech 64596 Air Spring
Product Introduction
Item Name:Goodyear Air Spring
Part Number:7008
Goodyear Number:1B12-313
Flexmember:578-91-3-301
Manufacturer Numbers
Contitech Number:64596,6-4-5-9-6
:FS330-11474,FS330 11474
Firestone Number:W013587008,W01-135-87008,
Goodyear 1B12-313 Air Spring Technical Data
Top Cover Plate Diameter:9.00 inches(228.6mm)
Bottom Cover Plate Diameter :9.00 inches(228.6mm)
Gas Hole/Air Inlet:250-18 NPTF (DRYSEAL)
Top Bolt Center Distance:6.20 inches(157.48mm)
Top Bolt And Air Hole Center Distance:2.88 inches(73.15mm)
Bottom Bolt Center Distance:6.20 inches(157.48mm)
The Working Stroke:MAX 7.20 inches to MIN 2.30 inches (MAX 182.88mm to MIN 58.42mm)
Maximum Height:7.20 inches(182.88mm)
Minimum Height:2.30 inches(58.42mm)
Compressed Height:4.9 inches (124.46mm)
Temperature Range(MAX) : 150℉
Temperature Range(MIN) : -40 ℉
Bellow Type:Single Convoluted
Bellows # :578-91-3-301
Convoluted:Single
Detailed Drawings Are Presented
| Side View With Extended And Compressed Height | Upper Mounting View | Lower Mounting View |
 |
|
|
About Goodyear
American Goodyear (GOODYEAR), the world's first inventor of the rubber vulcanization system, is widely known in China as an automobile tire manufacturer, and developed the world's first industrial steel-core rubber conveyor belt. Goodyear is keen to develop new products in order to maintain a leading position in product quality and performance. Its main purpose is to solve problems and build word of mouth, and then achieve self-marketing products. After more than 100 years of development, Goodyear is internationally renowned for the excellent quality and performance of its products. Its production plants are located all over the world, and its product line has basically covered all the application fields of global industrial rubber products.
Air Springs For Trucks, Trailers, And Buses
Air springs for trucks, trailers buses, and cab & seat springs protect cargo, provide constant-level hauling, and deliver long, trouble-free service. Air springs give your trucks, trailers and buses a new high in productivity and long life. They offer a quiet, cushioned ride. Truck, trailer and bus bodies last longer than with steel springs because there is less vibration. The driver rides in greater comfort, becomes less fatigued and stays more alert. Plus cargo has better protection from shock and vibration. Whenever you want to add an axle, air springs fit right in. air springs, when used with leveling valves, also maintain consistent trim regardless of the load. That means clearance heights remain constant,and that trailer floors are flush with loading dock floors for ease of loading and unloading. For driver comfort, load cushioning, and long life for your trucks, trailers, bus, and cab and seat springs specify Goodyear Engineered Products air springs.
