| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 64553 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Product Material: | Rubber + Steel | Warranty: | 1 Year |
|---|---|---|---|
| Product Feature: | In-situ Installation | Type: | Gas-filled Type |
| Position: | Universal | Flexmember: | 578-92-3-206 |
| Top Plate Diameter: | 6.40 Inches | Working Stroke: | 12.2 Inches ~3.5 Inches |
| High Light: | Gas Type Goodyear Air Spring,Double Convoluted Goodyear Air Spring,Goodyear Air Spring 2B9-218/64553 |
||

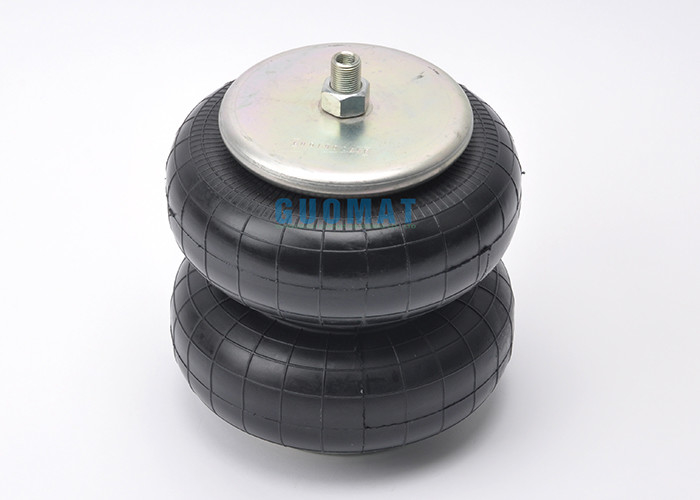

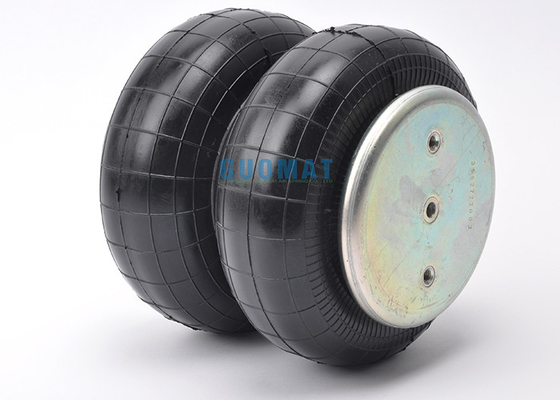

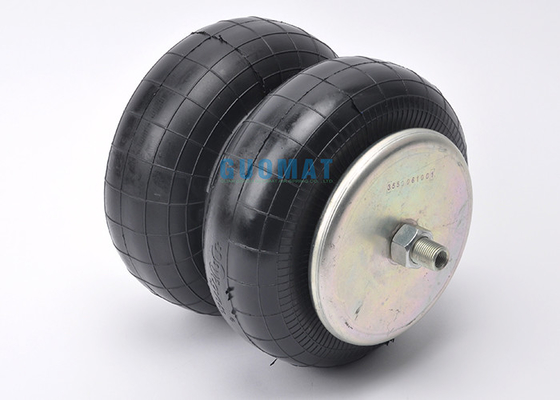

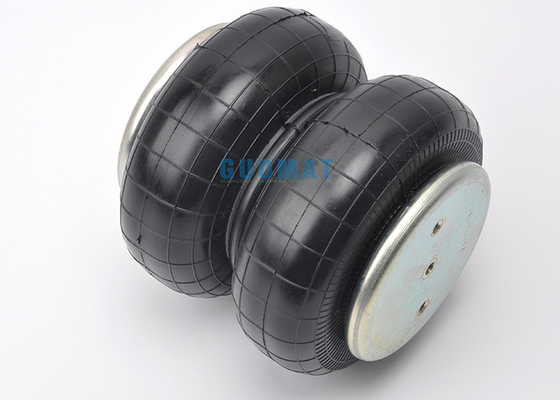

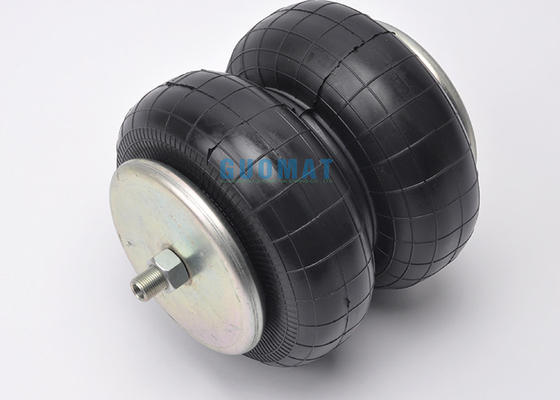

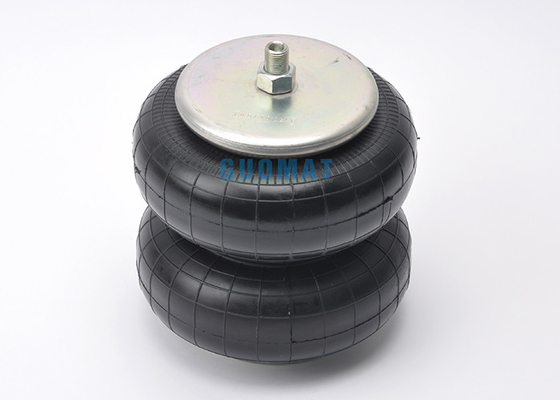

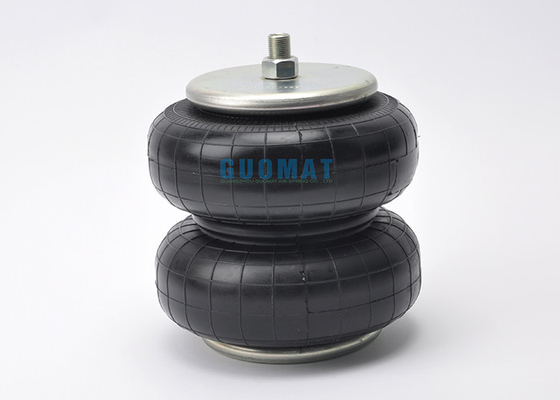

2B9-218 Goodyear Air Spring,W013586927 Firestone Double Convoluted Style Rubber Airbag
Product Description
This is a bellows style Goodyear air spring. The bellows air springs have one, two, or three convolutions in the flexible member. This double convoluted air bag is typically found on lift springs or axles for trucks and trailers, as an air ride spring, and also as an actuator or insulator on industrial and commercial applications. The specifications will vary on 2B9-218, but double convoluted Goodyear bags are found in crimped design as well as sleeve type bellows. They will offer similar characteristics and functionality but the sleeve type has the end retainers permanently attached by pinching the flexmember between the end retainers and external crimp rings.
Model:2B9-218
Manufacturer: Goodyear
Flexmember:578-92-3-206
GUOMAT Number:64553
Specs
Top Plate Hole/Stud: 1
Bottom Plate Hole/Stud: 2
Top Plate Diameter: 6.4 inches /162.56 mm
Between Threaded Hole Distance On Bottom Cover Plate:3.5 inches / 88.9mm
Bottom Plate Diameter: 6.4 inches/162.56 mm
MAX Height:12.2 inches /309.88 inches
Collapsed Height: 3.5 inches/ 88.9mm
Flexmember: 578-92-3-206
Piston: —
Piston Type: —
Goodyear Trimmed: 2B9218
Bellow Type:Double
Cross Reference
Related Items
| GUOMAT Number | Goodyear Number |
| 7009 | 1B12-301 |
| 6920 | 1B12-305 |
| 7008 | 1B12-313 |
| 7103 | 1B14-350 |
| 7105 | 1B14-351 |
| 7112 | 1B14-358 |
| 66094 | 2B6-535 |
| 67667 | 2B7-548 |
| 64601 | 2B8-550 |
| 64267 | 2B9-200 |
| 64515 | 2B9-201 |
| 6905 | 2B9-206 |
| 6908 | 2B9-210 |
| AZ-8127-19 | 2B9-216 |
| 64553 | 2B9-218 |
| 6928 | 2B9-225 |
| 7800 | 3B14-360 |
| 64581 | 3B14-364 |
| 64583 | 3B14-367 |
| 7845 | 3B14-450 |
| 7846 | 3B14-451 |
| 7850 | 3B14-452 |
| 7838 | 3B14-453 |
| 7843 | 3B14-457 |
| 7847 | 3B14-459 |
| 7862 | 3B14-464 |
| 5710 | 1R8-034 |
| 5409 | 1R9-003 |
The benefits of installing car shock absorbers
1. High internal resistance, which has a good effect on the absorption and sound insulation of sudden shocks and high-frequency vibrations.
2. Unrestricted, stiffness in all aspects can be selected according to design requirements.
3. The rubber spring can bear loads in multiple directions at the same time, which simplifies the system structure.
4. It is easy to disassemble, without lubrication, which is conducive to the maintenance of the air spring.
5. Although the modulus is small, large elastic deformation can be obtained, and ideal nonlinear characteristics can be easily realized.
