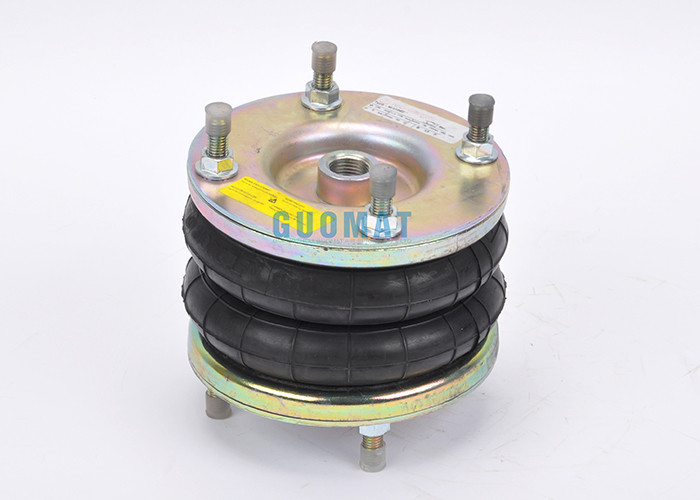

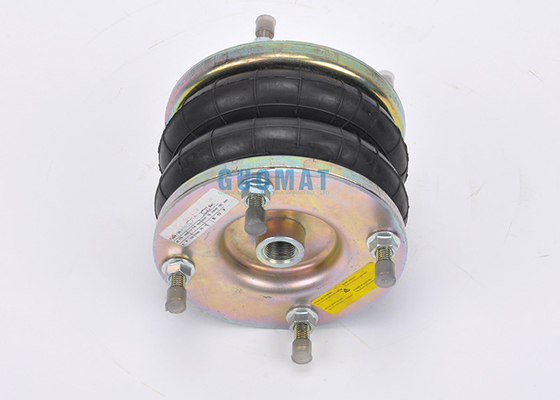

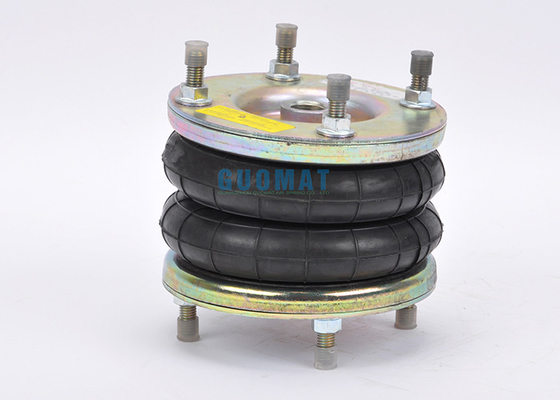

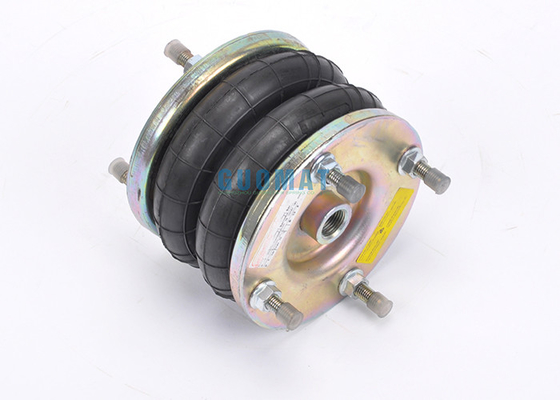

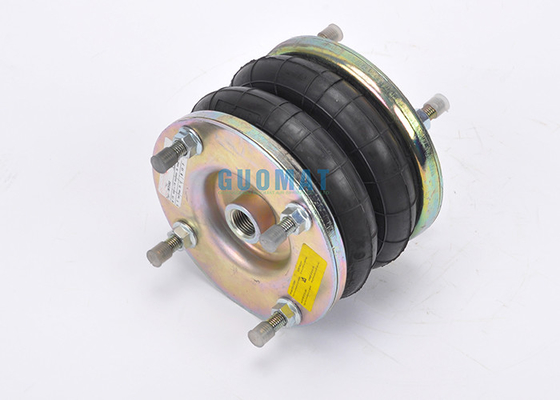

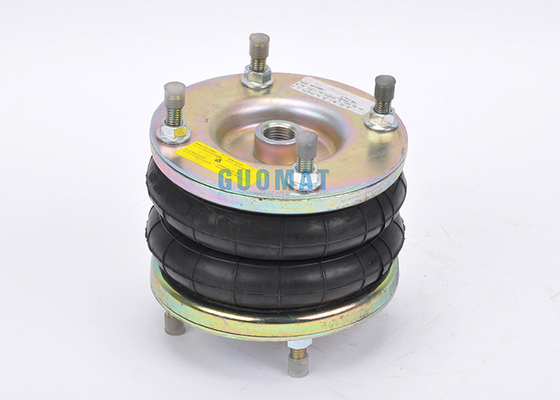

Double Convoluted Gas Suspension Air Spring 115mm Stroke Air Bellow For Industrial Equipment

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2BM31062

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Air Spring/Air Bellow Suspension Spring	Spring Material:	Natural Rubber And Steel
After-Sales Service:	12 Months	Spring Size:	Standard
Product Type:	Gas-filled	Medium:	Compressed Air
Application:	Industrial Machine	Operation:	Single Acting
Highlight:	Double Convoluted Gas Suspension Air Spring , 115mm Stroke Suspension Air Spring

115mm Stroke Air Bellow Double Convoluted Gas Suspension Air Spring For Industrial Equipment

Product Description

Brand	GUOMAT/Neutral
Name	Air Spring/Air Bellow Suspension Spring
Model No.	2BM31062
Reference No.	M31062
Color	Black
Delivery Time	2-8 Working days
Certificate	ISO/TS16949:2009
Size	Standard
MOQ	1PCS

GUOMAT Number:2BM31062

Reference Number:M31026 M/31026

Medium:Compressed Air

Operation:Single acting

Technical Details

Rubber Bellow Diameter :175mm

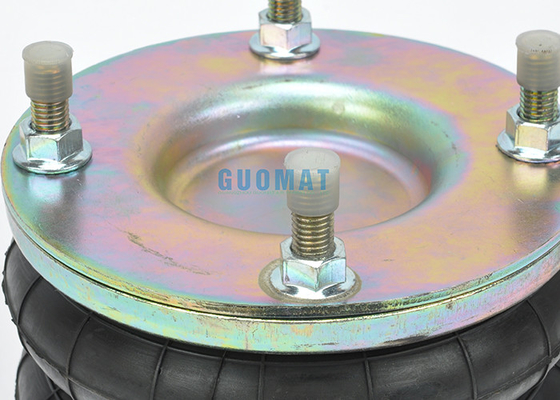

Top Cover Plate Diameter:153.5mm

Diameter Between Bolt(Stud) On Top:127mm

Bottom Cover Plate Diameter:153.5mm

Diameter Between Bolt(Stud) On Bottom:127mm

The Woring Stroke:75mm~190mm

Maximum Height:190mm

Minimum Height:75mm

Compressed Height:115mm

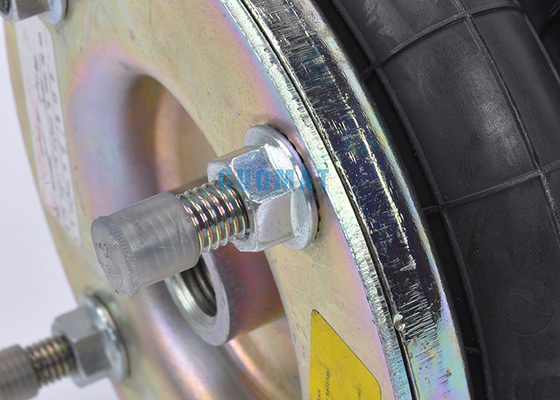

Bolt(Stud) On Top Cover Plate:4 PCS X M10

Bolt(Stud) On Bottom Cover Plate:4 PCS X M10

Bolt(Stud):M10=25Nm

Air Inlet/Gas Hole:G1/2=25Nm

Operating Pressure:0~8 bar

Operating Temperature:-40℃~70℃

2BM31062 Technical Parameters

Minimum Pressure 0 bar

Minimum Altitude Restoration ≤180N

Weight(With Cover Plate) 2.6KG

Vibration Isolation Applications - Dynamic Eigenvalues

Design Height H :155mm , Min 145mm

Pressure P ［bar］	3	4	5	6	7	8	Volume V ［I］
Load ［KN］	2.7	3.7	4.7	5.7	6.7	7.8	2.0
Stiffness ［N/cm］	650	830	1015	1185	1360	1530
Natural Frequency ［Hz］	2.5	2.4	2.3	2.3	2.3	2.2

Pneumatic Applications - Static Eigenvalues

Load ［KN］

Pressure P ［bar］		3	4	5	6	7	8	Volume V ［I］
Height H ［mm］	170	2.2	3.0	3.8	4.7	5.6	6.5	2.1
	150	2.8	3.9	4.9	6.0	7.1	8.2	1.9
	130	3.5	4.7	5.9	7.1	8.4	9.7	1.7
	110	4.1	5.4	6.8	8.2	9.6	11.1	1.4
	90	4.7	6.3	7.9	9.5	11.1	12.8	1.1
