| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | RKB 500082 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $79.9-99.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Car Fitment: | Land Rover | Product Name: | Air Strut Bag |
|---|---|---|---|
| Material: | High-Quality Rubber | Warranty: | 1 Year |
| Position: | Rear Left/Right | Years: | 2002-2006 |
| Condition: | Brand New | Type: | Air Suspension Spring |
| High Light: | Land Rover Air Bellow Suspension Spring,RKB500080 Air Bellow Suspension Spring |
||

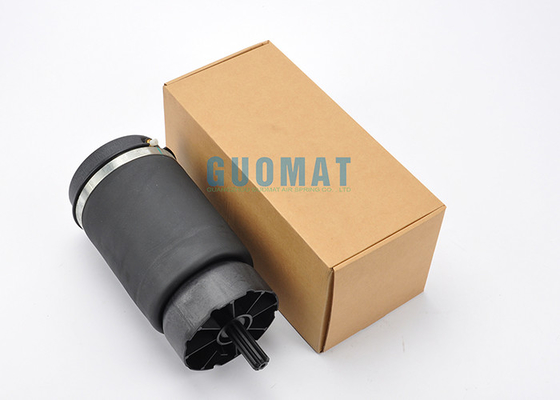

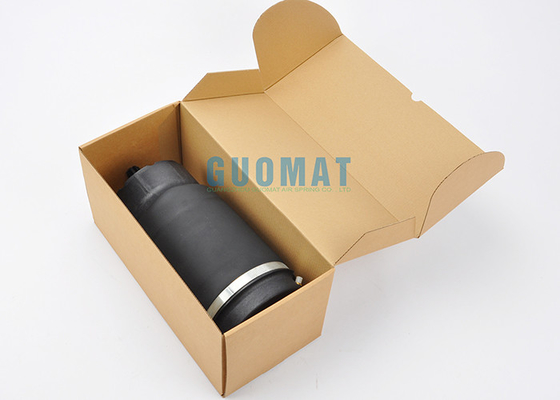

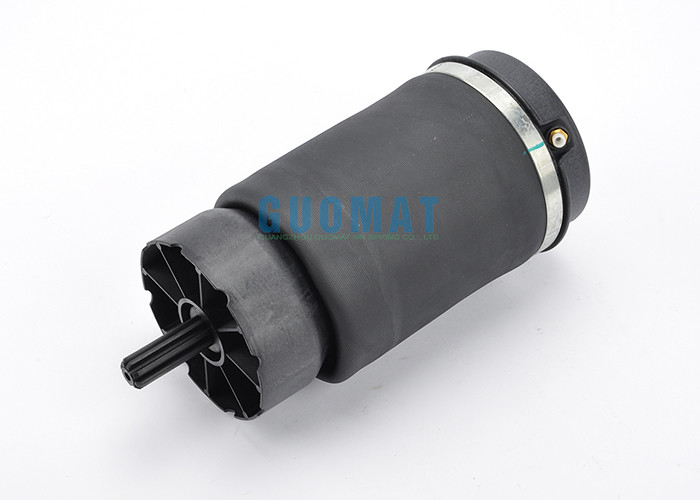

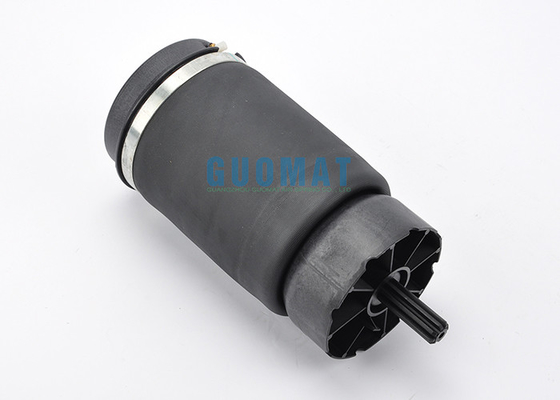

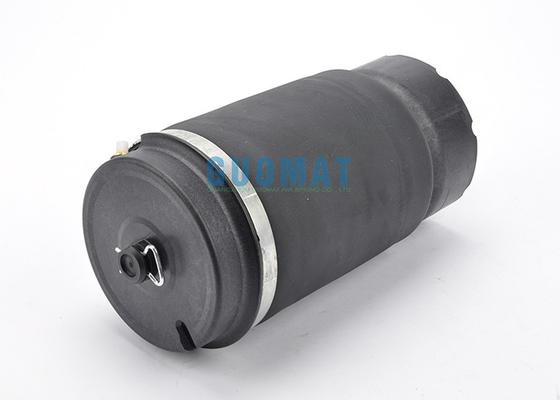

Air Bellow Suspension Spring Rear Left Rear Right Strut Bag RKB500080 For Land Rover
Product Information
| Part Type | Air Suspension Spring |
| Part Number | 504016 |
| Placement | For Land Rover All Engine |
| Construction Year | 2002-2003-2004-2005-2006 |
| Engine | 4.2 V8 S CHARGED |
| Car Engine | 4.4 V8 AJPET |
| Year of Engine | 2007 2008 2009 |
| Position | Rear Left,Rear Right |
| MOQ | 1 Piece |
| Package | Carton/Cartons |
Land Rover Air Spring Original Equipment Reference Number
Land Rover RKB 500080
Land Rover RKB 500082
Land Rover RKB 000150
Land Rover RKB 000151
Land Rover RKB 500130
Land Rover RKB 500080K
Land Rover RKB 500240
Land Rover LR 052171
Land Rover LR 044853
Land Rover LR 034262
RKB500080 RKB500082
RKB000150 RKB000151
RKB500130 RKB500080K
RKB500240 LR052171
LR044853 LR034262
LAND ROVER
ALL ENGINE
2002 , 2003 , 2004 , 2005 , 2006
4.2 V8 S CHARGED
2007 , 2008 , 2009
4.4 V8 AJPET
2007 , 2008 , 2009
More About Our Advantages
★15 years of production experience and sales experience.
★Our product are making in high - quality Rubber.
★Our product are durable and safe.
★One year warranty
★Factory Price
★Fast Delivery
★If you have any question,you can contact us any time.We will do our best to help you.
Remove and installation
Remove the air spring
1. Lift and support the vehicle (Note: When the vehicle is only supported by the jack, do not work under the vehicle or on the vehicle, keep the vehicle supported on the safety stand.)
2. Remove the tire
3. Depressurize the air suspension system
4. Disconnect the rear air spring from the lower boom
●Remove nuts and bolts
5. Disconnect the air line (Note: any open fittings must be plugged to avoid contamination)
6. Use a hand jack to support the air spring assembly
7. Remove the 3 rear air cushion spring fixing nuts
8. Remove the rear air spring
9. Remove the Voss fitting from the air line
●Remove sockets and unions
Install the air spring
1. Install a new Voss connector to the air spring
2. Install the rear air spring
●Make sure that the top mount of the spring and shock absorber assembly and the body mating surface are clean
●Connect the air line to the Voss fitting
●Tighten the nut
3. Connect the shock absorber assembly to the lower boom.
●Tighten nuts and bolts
4. Pressurize the air suspension system
5. Install the tires
●Tighten wheel nuts
Package:Neutral packaging, accept customer special packaging requirements.
Payment:L/C,T/T,Western Union,Paypal...
About Delivery:
1. Please make sure your address and contact details are accurate
2. We expect it to arrive on time, but since this is an international delivery, the shipping time will depend heavily on the logistics company and local customers or duties. thank you for understanding.
3. We are not responsible for any problems caused by shipping services, such as accidents, delays or other problems.
