| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FS 120-9 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Type: | Press Rubber Air Spring | Material: | Rubber + Steel |
|---|---|---|---|
| Warranty: | 12 Months | Firestone: | W01-M58-6166 |
| Package: | Carton/Cartons | Packing Size: | 24*24*24 (cm) |
| Gas Hole: | G1/4 | Contitech: | FS 120-9 |
| High Light: | Industrial Air Spring W01-M58-6166,Industrial Air Spring Single Bellow,FS 120-9 Industrial Air Spring |
||

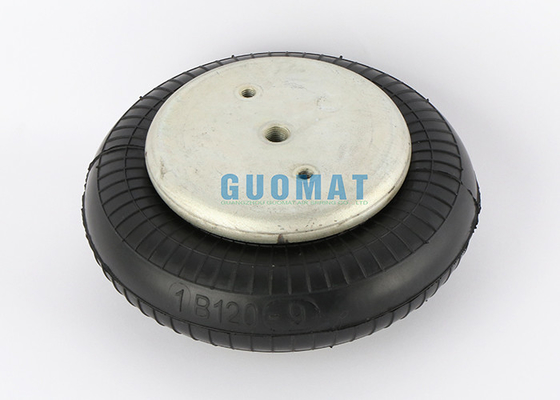

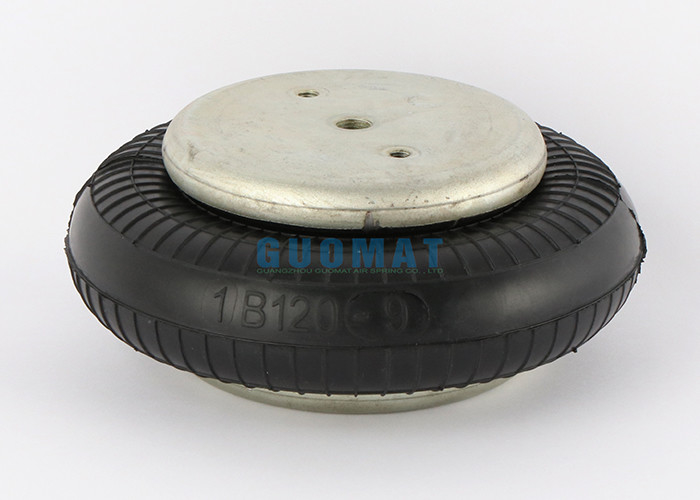

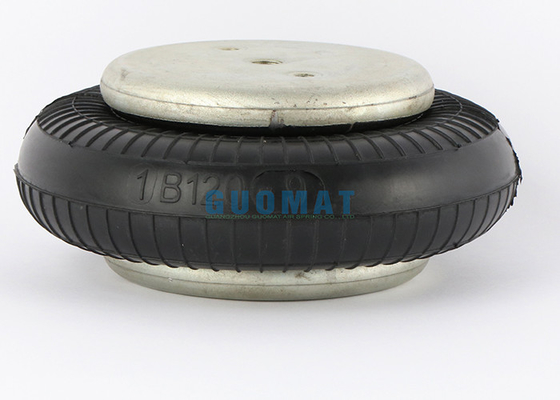

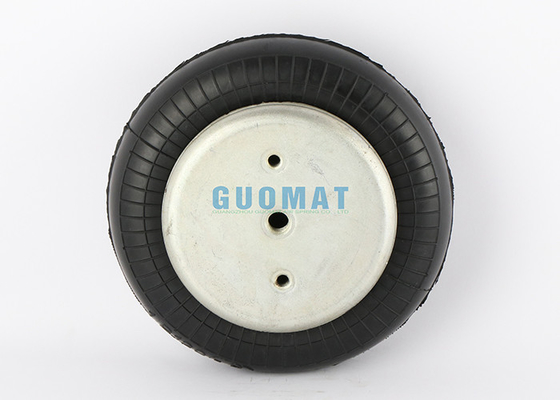

Firestone Industrial Air Spring Supplier W01-M58-6166 Single Bellow Air Bag FS 120-9
Product Description
|
Item |
Rubber Bellows Industrial Air Spring |
|
Material |
High Quality Rubber |
|
Warranty |
12 Months |
|
Condition |
Brand New |
|
Function |
Reduce Vibration |
|
Color |
Black |
|
Delivery Time |
2-8 working days |
Cross Reference Number
Firestone :W01-M58-6166
W01/M58/6166
W01M586166
Contitech:FS 120-9
fs 120-9
fs 120-9 ci
Dunlop(FR):8''x1 S08100
Bosch:822419008
Weforma:WBE 300-E2
The Technical Data of FS 120-9
Gas Hole/Air inlet
Gas Hole:G1/4
Cover Plate
Top Cover Plate Diameter:135mm
Screw Center Distance of Top Cover Plate:70mm
Bottom Cover Plate Diameter:135mm
Screw Center Distance of Bottom Cover Plate :70mm
Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth:2XM8X1.25
Bottom Cover Plate Screw(Nut) Tooth:2XM8X1.25
M8=25Nm
Rubber Bellow
Rubber Bellows MAX Diameter:215mm
The Working Stroke:MAX 115mm to MIN 50mm
Maximum Height:115mm
Minimum Height:50mm
Compression Height:65mm
Dynamic Characteristics at 115 mm Design Height
| Gauge Pressure(BAR) | Load (kN) | Spring Rate(kN/m) | Natural Frequency Hz |
| 3 | 4.16 | 132 | 2.80 |
| 4 | 5.73 | 169 | 2.71 |
| 5 | 7.26 | 207 | 2.67 |
| 6 | 8.98 | 247 | 2.62 |
| 7 | 10.55 | 285 | 2.59 |
Force Table
|
Assembly Height (mm) |
Volume @7 BAR (cu cm) |
EFF Area @7 BAR (cm2) |
kN Force | ||||
|
@3 BAR |
@4 BAR |
@5 BAR |
@6 BAR |
@7 BAR |
|||
| 130 | 2268 | 80 | 2.03 | 2.90 | 3.75 | 4.74 | 5.58 |
| 120 | 2167 | 103 | 2.76 | 3.86 | 4.95 | 6.14 | 7.18 |
| 110 | 2037 | 123 | 3.41 | 4.68 | 5.96 | 7.36 | 8.61 |
| 100 | 1898 | 140 | 3.92 | 5.34 | 6.78 | 8.36 | 9.78 |
| 90 | 1733 | 154 | 4.33 | 5.92 | 7.49 | 9.23 | 10.80 |
| 80 | 1568 | 166 | 4.64 | 6.39 | 8.08 | 9.94 | 11.62 |
| 70 | 1379 | 176 | 4.89 | 6.77 | 8.58 | 10.55 | 12.30 |
| 60 | 1198 | 184 | 5.09 | 7.05 | 8.97 | 11.03 | 12.85 |
Packing Information
Net Weight:2KG
Packaging Length:24(cm)
Packaging Width:24(cm)
Packing Height:24(cm)
GUOMAT Number:1B120-9
Manufacturer Part Number:FS 120-9 CI
What is the main function of an air spring? In what ways is it used?
Air springs are equipment that is often used in industrial production and machine tools.
The main function of the air spring is to reduce the vibration caused by the spring during friction. If these vibration phenomena cannot be reduced or dealt with in time, it may affect the machine and easily damage the machine.
Air springs have a wide range of applications. In some machinery and equipment, air springs are used to reduce equipment vibration and maintain high efficiency and smooth operation of the machine.
