| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FS 412-10 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Type: | Rubber Air Bellow Air Spring | Bellow Type: | Single Bellow |
|---|---|---|---|
| Material: | Rubber+Steel | Product Warranty: | One Year |
| Air Inlet: | G1/2 | OEM Number: | FS 412-10 DS |
| Scope Of Use: | Industrial Equipment | Package: | Cartons |
| High Light: | Single Convolution Industrial Air Spring,Contitech FS412-10DS Industrial Air Spring,Single Bellow Industrial Air Spring |
||

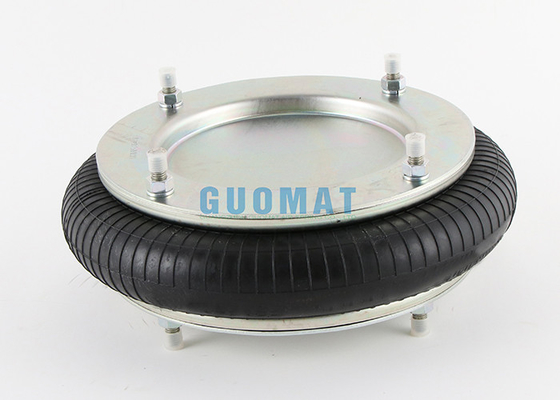

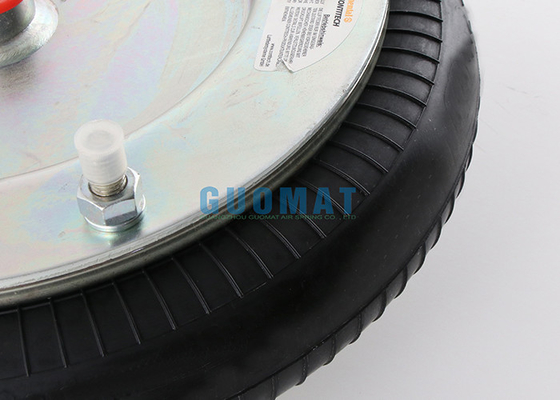

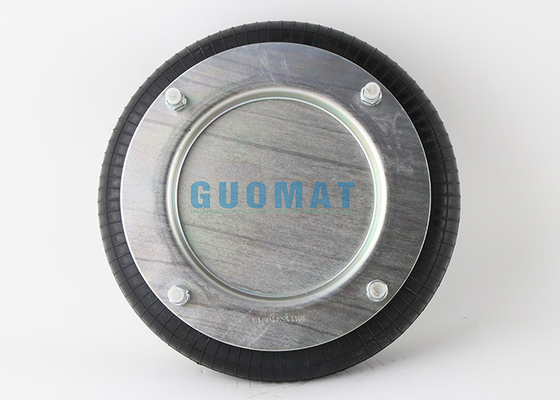

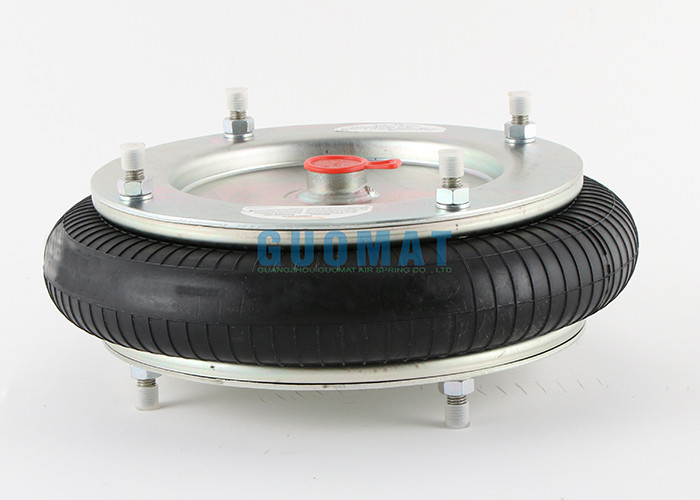

Contitech FS 412-10 DS Air Spring Gas Inlet G1/2 Single Convolution Air Actuator
Product Description
|
Item |
Air Spring/Shock Absorber Spring/Air Bellows |
|
Brand |
Guomat/Neutral |
|
Model Number |
1B 12X1 |
|
Material |
Rubber and Steel |
|
Warranty |
1 Year |
|
MOQ |
1 PCS If We Have Stock |
|
Package |
(1) Brown Carton (2) Customer Require Packaging (3) Normal Exported Package |
|
Delivery Time |
2-8 Working Days |
|
Payment |
T/T, L/C, PayPal, Western Union |
|
After Service |
(1) Examination Before Shipment |
|
Main products we sell |
Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump |
Technical data of FS 412-10 DS air spring
Air Inlet / Gas Hole
Gas Hole:G1/2
G1/2=25Nm
Cover Plate of Air Spring
Top Cover Plate Diameter:260mm
Screw Center Distance of Top Cover Plate:232mm
Bottom Cover Plate Diameter:260mm
Screw Center Distance of Bottom Cover Plate:232mm
Blind Nut
Top Cover Plate Screw(Nut)Tooth:4 pieces xM10
Bottom Cover Plate Screw(Nut)Tooth:4 pieces xM10
M10=25 Nm
Rubber Bellow
Rubber Bellow MAX Diameter:330mm
The Working Stroke:MAX 150mm to MIN 50mm
Maximum Height:150mm
Minimum Height:50mm
Compression Height:100mm
Min.pressure-------0 bar
Return force to min height--------≤200N
|
Vibration Isolation - Dynamic Characteristic Values -------Design Height H : recommended 120mm,minimum 100mm |
|||||||
| Pressure P ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | Volume V ［I］ |
| Force(Load) ［KN］ | 11.4 | 15.3 | 19.2 | 23.2 | 27.1 | 31.1 |
5.5
|
| Spring rate ［N/mm］ | 290 | 372 | 451 | 531 | 612 | 689 | |
| Natural Frequency ［Hz］ | 2.5 | 2.5 | 2.4 | 2.4 | 2.4 | 2.4 | |
|
Pneumatic Applications - Static Characteristic Values Force F ［KN］ |
||||||||
| Pressure P ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | Volume V ［I］ | |
| Height H ［mm］ | 120 | 11.2 | 15.1 | 18.9 | 22.9 | 27 | 31.4 | 5.5 |
| 100 | 13.9 | 18.5 | 23.4 | 28.1 | 33.1 | 38.3 | 4.6 | |
| 80 | 16.5 | 22.1 | 27.6 | 33.4 | 39.1 | 45 | 3.4 | |
| 60 | 18.5 | 24.8 | 31 | 37.2 | 43.6 | 50 | 2.2 | |
Replaces These Air Spring(Air Bellows)
CONTITECH : FS 412-10 DS 67962
CONTITECH : FS 412-10 1/2 M10
CONTITECH : FS 412-10 G1/2 M10
CONTITECH : FS 412-10 DS G1/2
CONTITECH : FS 412-10 DS G1/2 M10
CONTITECH : FS 412-10 DS , FS412-10DS , fs 412-10 ds
CONTITECH Bellow : FS 412-10 , FS412-10 , FS41210 , fs 412-10
FIRESTONE Number:W01-R58-4060 , W01 R58 4060 , W01R584060,W01/R58/4060
w01-r58-4060
FIRESTONE Style : 12''x1 , 12x1
DUNLOP FR : 12''X1 SP1540
DUNLOP UK(Pneuride) : PNP 30552 01 20 , PNP 305520120
NORGREN : M31121 , M 31121 , M/31121
Nominal(inch)x convolutions : 12''x1/12x1
Parker : 12''x19109044
