| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 4 1/2 X 2 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Part Number: | W01-R58-4051 | Warranty: | 1 Year |
|---|---|---|---|
| Material: | Natural Rubber + Aluminum | Packing Size: | 24*24*24(cm) |
| Net Weight: | 3.5Kg | Dunlop Number: | 4 1/2 X 2 |
| Type: | Convoluted Type | Product Features: | Reduce Vibration |
| High Light: | Industrial Air Spring W01-R58-4051,Dunlop 4 1/2 X 2 Industrial Air Spring |
||
Dunlop 4 1/2 X 2 Double Convolution Air Lift Bag Firestone Industrial Air Spring W01-R58-4051
Product Description
4 1/2 X 2 Equivalences
CONTINENTAL CONTITECH : FD 44-10 DI CR
FD 44-10
FD44-10
FD4410
FD 44-10 DI G3/8 CR
FD 44-10 DI CR G3/8
FD 44-10 DI G3/8 M6
FD 44-10 DI CR 70206
FIRESTONE : W01-R58-4051
W01R584051
W01 R58 4051
W01/R58/4051
DUNLOP FR : SP2441
SP 2441
DUNLOP UK (PNEURIDE) : PNP 305590107
PNP305590107
PNP 30559 01 09
YS-AIR : YS-115-2V
YS 115 2V
YS1152V
NORGREN : PM/31042
PM 31042
PM31042
Dimensions(Pouces)
41/2 X2 / 41/2x2 / 41/2'' x2 / 4.5x2 / 4.5'' x2
The Dimensions of 4 1/2 X 2
Maximum Diameter : 125mm
Space Required : 140mm
Minimum Height : 65mm
Maximum Height : 145mm
Total Stroke : 80mm
Static Height : 100mm
Effective Area at Static Height : 67cm2
Gas Hole : 3/8 BSP
Screw (Nut) : M6
Condition of Use
| Maximum Working Pressure | 8 bar |
| Burst Pressure | 50 bar |
| Maximum Angle Between Top & Bottom Plates |
15o |
| Maximum Axial Offset | 10 mm |
Operating Temperature
|
Standard Rubber |
|
Minimum -30℃ (40℃ Static) |
|
Maximum +70℃(+90℃ Static) |
|
Chlorobutyl Rubber |
|
Minimum -25℃ (-30℃ Static) |
|
Maximum +90℃(+115℃ Static) |
Precautions to Observe
Other Kinds of Firestone Air Springs
| W01-R58-4087 | W01-R58-4088 | W01-R58-4089 |
| W01-095-0532 | W01-095-0464 | W01-358-7808 |
| W01-358-7818 | W01-681-7314 | W01-358-8042 |
| W01-M58-6126 | W01-M58-6127 | W01-M58-7953 |
| W01-R58-4081 | W01-R58-4043 | W01-R58-4050 |
| W01-R58-4051 | W01-R58-4076 | W01-R58-4035 |
| W01-R58-4052 | W01-R58-4078 | W01-R58-4036 |
| W01-R58-4053 | W01-R58-4070 | W01-R58-4095 |
| W01-R58-4054 | W01-R58-4085 | W01-R58-4045 |
| W01-R58-4055 | W01-R58-4056 | W01-R58-4057 |

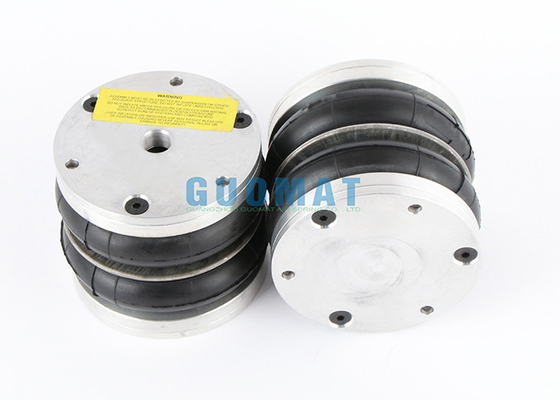

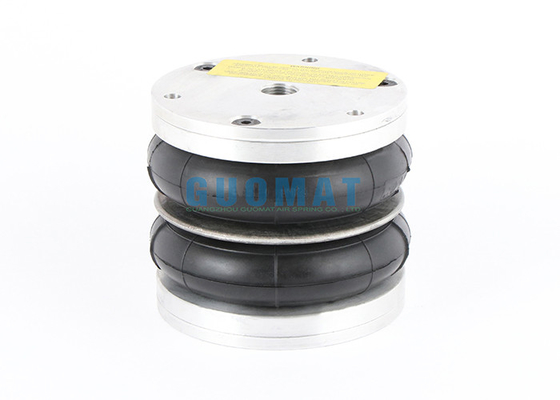

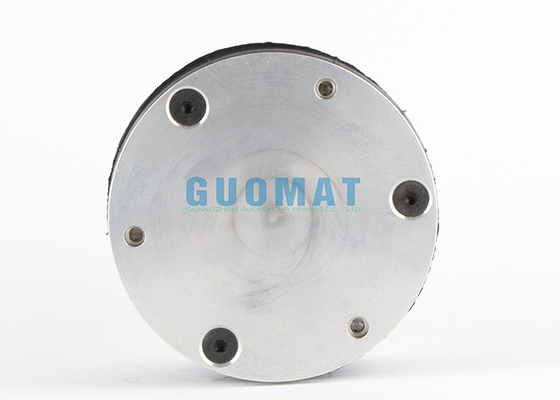

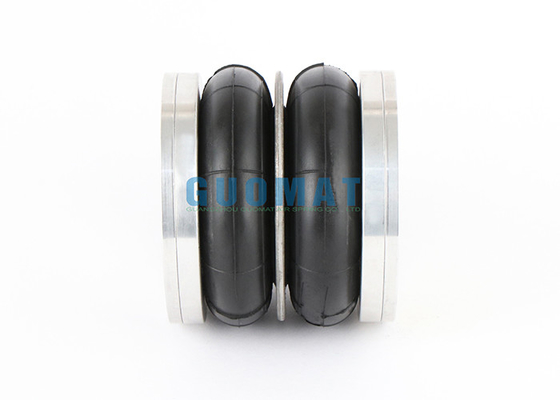

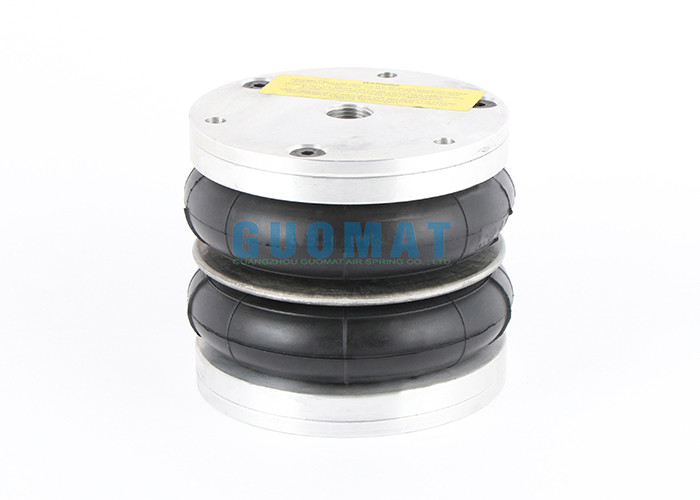

Product Picture
