| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3H630376 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Part Number: | 3H630376 | Warranty: | 12 Months Warranty |
|---|---|---|---|
| Spring Material: | Natural Rubber | Color: | Black |
| Minimal Compression: | 122mm | The Working Stroke: | 314mm |
| The Screw: | M10 | Number Of Screw: | 32 Pieces |
| High Light: | Triple Convoluted Industrial Air Bag,3H630376 Industrial Air Bag |
||
3H630376 Flange Ring Triple Convoluted Industrial Air Bag Natural Rubber Air Spring
Product Description
|
Item Name |
Triple Convolutions Air Lift Bag |
|
Item Number |
3H630376 |
|
Material |
Hight-Quality Rubber |
|
Warranty |
12 Months |
|
MOQ |
1 Pieces |
|
Color |
Black |
|
Payment |
L/C ; T/T ; Western Union and PayPal |
|
Delivery Time |
2-8 working days |
|
Package |
Strong Carton Box |
3H630376 Industrial Air Spring Technical Data
|
Pass Through |
Minimal Compression |
Elongation |
The Working Stroke |
|
Ф580mm |
122mm |
436mm |
314mm |
|
Customers need to bring their own sealing cover |
|||
Rubber Bellow Diameter : Ф720mm (0.7 Mpa)
Bottom and Top Diameter : Ф642mm
The Screw : M10
Number of Screw : 32 pieces
|
Loading Capacity (kg) |
Inflatable Pressure Installation Height |
0.2Mpa | 0.3Mpa | 0.4Mpa | 0.5Mpa |
| 122(mm) | 6172 | 9172 | 12284 | 15681 | |
| 189(mm) | 5542 | 8335 | 11202 | 14221 | |
| 256(mm) | 5104 | 7514 | 10309 | 12936 | |
| 323(mm) | 4485 | 6662 | 9498 | 11574 | |
| 376(mm) | 4243 | 6483 | 8882 | 11045 | |
| 390(mm) | 4200 | 6385 | 8593 | 10830 | |
| 436(mm) | 3780 | 5692 | 7727 | 9839 | |
| 457(mm) | 3638 | 5501 | 7398 | 9372 | |
| Stiffness and frequency at design height | vertical stiffness(Kg/cm) | 375 | 403 | 451 | 478 |
| Vertical Stiffness(Hz) | 1.49 | 1.25 | 1.13 | 1.04 | |
| Vertical Stiffness(cpm) | 89 | 75 | 68 | 62 |
|
Loading Capacity (kg) |
Inflatable Pressure Installation Height |
0.6Mpa | 0.7Mpa | 0.8Mpa |
0.7MPa Volume (dm3) |
| 122(mm) | 18522 | 22048 | 25216 | 33.52 | |
| 189(mm) | 17151 | 2.307 | 22710 | 58.98 | |
| 256(mm) | 15760 | 18304 | 20030 | 70.96 | |
| 323(mm) | 14420 | 16476 | 18997 | 85.49 | |
| 376(mm) | 13492 | 15612 | 17898 | 97.01 | |
| 390(mm) | 13232 | 15558 | 17726 | 100.5 | |
| 436(mm) | 11854 | 14062 | 16244 | 108.1 | |
| 457(mm) | 11424 | 13448 | 15505 | 112.25 | |
| Stiffness and frequency at design height | Vertical Stiffness(Kg/cm) | 518 | 554 | 601 | |
| Vertical Stiffness(Hz) | 0.98 | 0.94 | 0.92 | ||
| Vertical Stiffness(cpm) | 59 | 56 | 55 |
The Industrial Application
Industrial equipment for damping of the air spring technology application, effectively improving the work efficiency of equipment and the safe use of equipment life.Air spring is not like an ordinary cylinder type device having internal control rod, piston, or sliding type sealing device, thus greatly reducing the use of a pneumatic or hydraulic cylinder cost, for customers to win more economic benefits.
Characteristic.
● The low cost, wide range of specifications
● The long service life, no maintenance and lubrication, without the need for internal control rod or piston
● no friction effect, soft medium
● The bending capacity, lateral load capacity, compact original height

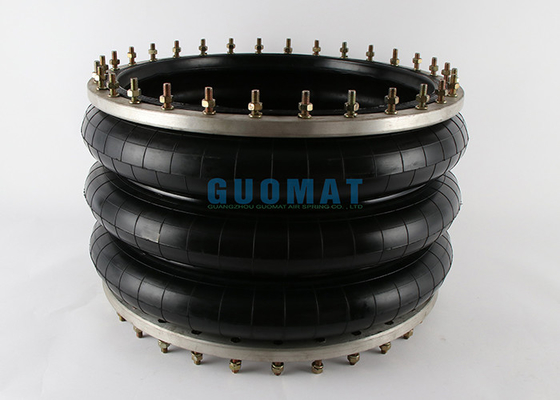

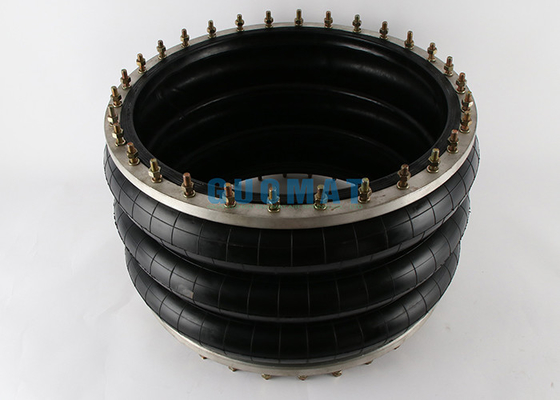

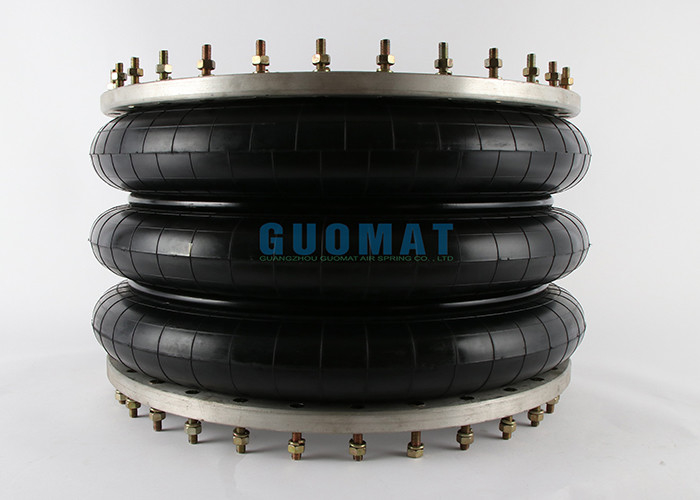

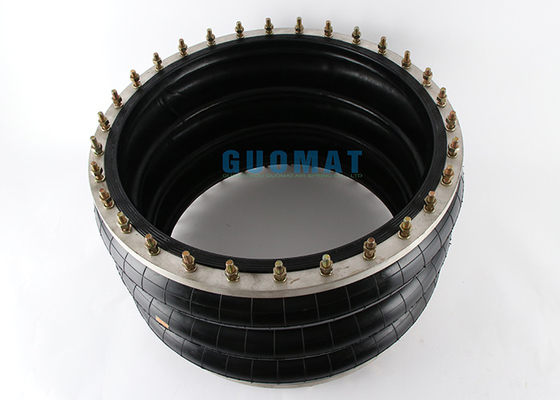

Product Picture
