| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B 10X2 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Guomat No.: | 2B 10X2 | Material: | Rubber+Steel |
|---|---|---|---|
| Warranty Period: | 1 Year | Firestone: | W01-R58-4058 |
| Dunlop: | SP1538 | Norgen: | M31102 |
| Gas Hole: | G1/2 | Package: | Carton |
| High Light: | Dunlop SP 1538 Industrial Air Spring,Industrial Air Spring W01-R58-4058,Firestone Rubber Industrial Air Spring |
||
Dunlop SP 1538 Industrial Air Spring Sales W01-R58-4058 Firestone Rubber Air Bellows
Product Description
FIRESTONE
W01-R58-4058
DUNLOP
SP 1538
CONTITECH
FD 210-22 1/2 M10
NORGEN
M 31102(10X2)
SAMRO
H2500189
H2500021
10X2 SBR ASSEMBLY
Firestone W01R584058
Firestone W01-R58-4058
Firestone w01r584058
Firestone w01-r58-4058
Dunlop SP1538
Dunlop SP 1538
Samro H25 001 89
Samro H25 000 21
Norgen M31102
Norgen M/31102
Norgen M 31102
Contitech FD 210-22 DS
Contitech FD 210-22 1/2
Contitech FD 210-22 DS G1/2
Contitech FD 210-22 DS G1/2 CR
Contitech FD 210-22 DS CR G1/2
Airkraft 2B-255 113100
Granning 15807
Technical Parameter Details
Nut/Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4xM10X1.5
Bottom Cover Plate Screw (Nut) Tooth : 4xM10X1.5
Cover Plate
Top Cover Plate Diameter : 210mm
Screw Center Distance of Top Cover Plate : 181mm
Bottom Cover Plate Diameter : 210mm
Screw Center Distance of Top Cover Plate : 181mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet :1/2 BSP
Rubber Bellow
Rubber Bellows MAX Diameter :254mm
Minimum Height : 70mm
10x2 Air Spring
Firestone : W01-R58-4048
Dunlop : SP 255
Firestone : W01-R58-4092
Dunlop : SP 1538
Convoluted Air Spring
|
Firestone No. |
Dimensions(Pouces) |
Dunlop No. |
Air Inlet |
The Screw |
|
W01-R58-40812 |
2 3/4 X3 |
SP2910 |
1/4 BSP |
M6X8 |
|
W01-R58-4050 |
4 1/2 X1 |
SP 2334 |
3/8 BSP |
-M6(C'BORE) |
|
W01-R58-4051 |
4 1/2 X2 |
SP 2441 |
3/8 BSP |
-M6 |
|
W01-R58-4052 |
6X1 |
SP1368 |
1/2 BSP |
-M10X1.5 |
|
W01-R58-4078 |
6X1 |
SP2913 |
1/2 BSP |
-M8X14 |
|
W01-R58-4053 |
6X2 |
SP1482 |
1/2 BSP |
M10X1.5 |
|
W01-R58-4070 |
6X2 |
SP2917 |
1/2 BSP |
-M8X1.25 |
|
W01-R58-4095 |
6X3 |
SP2861 |
1/2 BSP |
M10X1.5 |
|
W01-R58-4054 |
8X1 |
SP1637 |
1/2 BSP |
M10X1.5 |
|
W01-R58-4055 |
8X2 |
|
1/2 BSP |
M10X1.5 |
|
W01-R58-4056 |
8X3 |
SP2863 |
1/2 BSP |
M10X1.5 |
|
W01-R58-4057 |
10X1 |
SP2623 |
1/2 BSP |
M10X1.5 |
|
W01-R58-4059 |
10X3 |
SP1539 |
1/2 BSP |
M10X1.5 |
|
W01-R58-4086 |
10X3 |
SP1539 |
|
M10X1.5 |
|
W01-R58-4060 |
12X1 |
SP1640 |
1/2 BSP |
M10X1.5 |
|
W01-R58-4038 |
12X2 |
SP2782NB |
M16X1.5 |
-M10X1.5 |
|
W01-R58-4061 |
12X2 |
SP921NB |
1/2 BSP |
M10X1.5 |
|
W01-R58-4073 |
12X2 |
SP2665NB |
M16X1.5 |
M10X1.5 |
|
W01-R58-4037 |
12X3 |
SP2666NB |
M16X1.5 |
M10X1.5 |
|
W01-R58-4062 |
12X3 |
SP1542NB |
1/2 BSP |
M10X1.5 |
|
W01-R58-4091 |
12X3 |
SP1642 |
1/2 BSP |
M10X1.5 |
|
W01-R58-4063 |
14 1/2 X1 |
SP1643 |
1/2 BSP |
M10X1.5 |
|
W01-R58-4064 |
14 1/2X2 |
SP257 |
1/2 BSP |
M10X1.5 |
|
W01-R58-4074 |
14 1/2 X2 |
SP1988 |
M22X1.5 |
M10X1.5 |
|
W01-R58-4075 |
14 1/2 X2 |
SP257 |
1/2 BSP |
M10X1.5 |
|
W01-R58-4065 |
14 1/2X3 |
SP1558 |
1/2 BSP |
M10X1.5 |
|
W01-R58-4100 |
14 1/2X3 |
14 1/2X3 4 PLY |
1/2 BSP |
M10X1.5 |
|
W01-R58-4066 |
16X1 |
16X1 |
1/2 BSP |
M10X1.5 |
|
W01-R58-4067 |
SP1557 |
16X2 |
1/2 BSP |
M10X2 |
|
W01-R58-4068 |
SP2141 |
16X3 |
1/2 BSP |
-M10X1.5 |

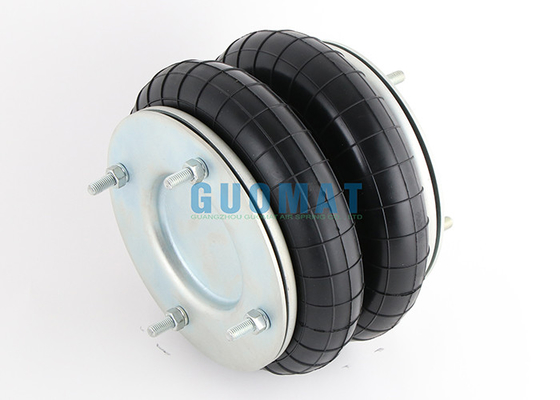

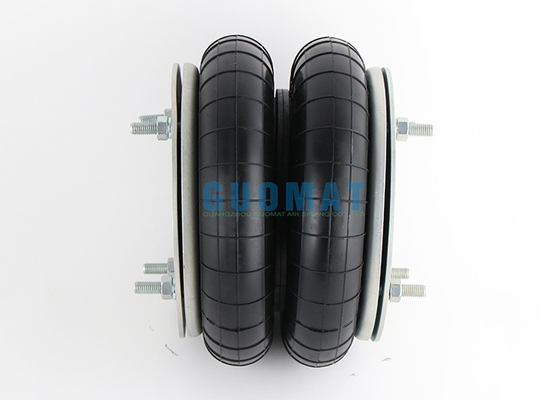

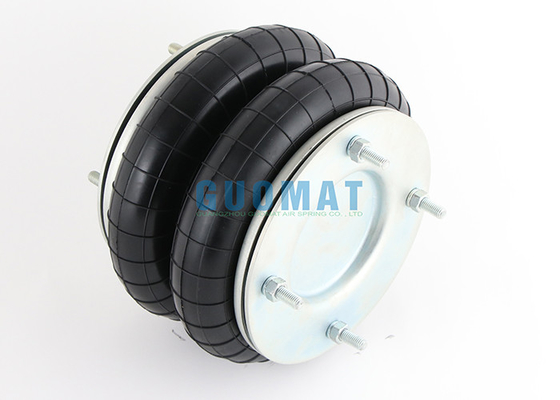

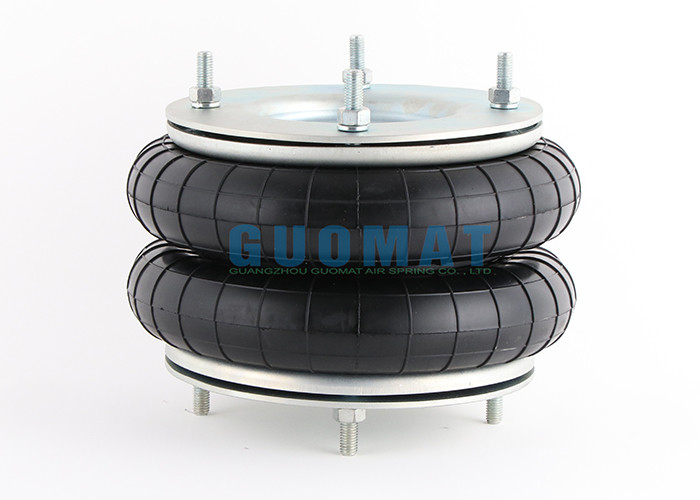

Product Picture
