| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 150076H-1 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Type: | With Flange Ring | Warranty: | 1 Year |
|---|---|---|---|
| Rubber Material: | Natural Rubber | Pressure Ability: | 0.2-0.8 Mpa |
| The Screw: | 4 X M10 | Rubber Bellow Diameter: | 160mm |
| Package: | Carton/Cartons | Quality: | 100% Tested |
| High Light: | 150076H-1 Single Convoluted Air Bag,Suspension Single Convoluted Air Bag |
||

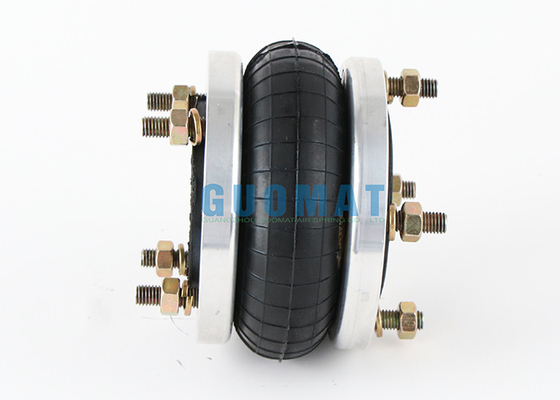

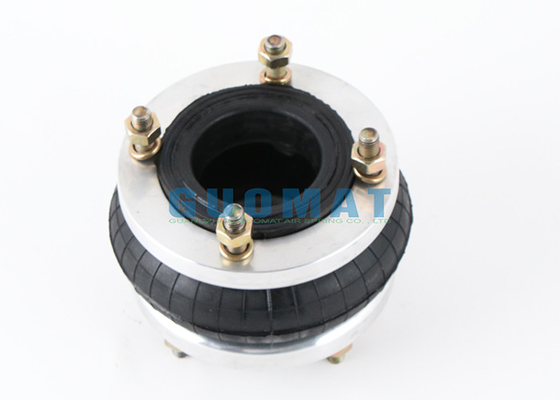

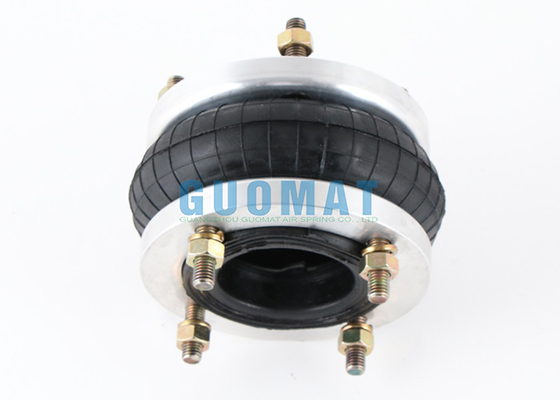

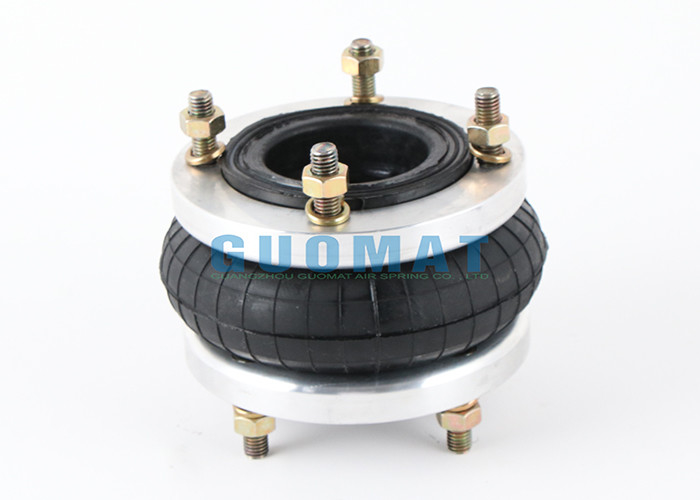

150076H-1 Single Convoluted Air Bag M10 Packaging Machinery Suspension Air Spring
Product Description
| Type | One Single Ruuber Bellow Air Spring | Part No. | 150076H-1 |
| Warranty | 12 Months | Other No. | 1H150076 |
| Rubber Type | Natural Rubber | Plate Dia | 133mm |
150076H-1 Technical Data Parameter Details
|
Pass Through |
Minimal Compression |
Elongation |
The Working Stroke |
|
Ф104mm |
46mm |
85mm |
39mm |
|
Customers need to bring their own sealing cover |
|||
| Rubber Bellow Diameter : Ф160mm(0.7 Mpa) | |||
| Top Cover Plate Diameter : Ф133mm | |||
| Bottom Cover Plate Diameter : Ф133mm | |||
| Top Cover Plate Screw (Nut) Tooth : 4×M10 | |||
| Top Cover Distance Plate Screw(Nut) : 109mm | |||
| Bottom Cover Plate Screw (Nut) Tooth : 4XM10 | |||
| Screw Center Distance of Bottom Cover Plate : 109mm | |||
|
Loading Capacity (kg)
|
Inflatable Pressure Installation Height
|
0.2Mpa | 0.3Mpa | 0.4Mpa | 0.5Mpa | 0.6Mpa | 0.7Mpa | 0.8Mpa |
0.7MPa Volume (dm3)
|
| 45(mm) | 436 | 579 | 718 | 860 | 1008 | 1155 | 1301 | 0.37 | |
| 55(mm) | 299 | 428 | 570 | 700 | 830 | 963 | 1088 | 0.46 | |
| 65(mm) | 226 | 335 | 451 | 565 | 570 | 782 | 906 | 0.57 | |
| 75(mm) | 164 | 258 | 344 | 435 | 526 | 621 | 720 | 0.67 | |
| 85(mm) | 122 | 190 | 254 | 330 | 399 | 475 | 544 | 0.75 | |
| 95(mm) | 58 | 94 | 133 | 174 | 220 | 263 | 308 | 0.87 | |
| Stiffness and Frequency at Design Height |
Vertical stiffness (kg/cm) |
107 | 150 | 187 | 231 | 265 | 303 | 319 | |
|
Natural (Hz)
Frequency(cpm) |
4.05 | 3.82 | 3.69 | 3.65 | 3.5 | 3.50 | 3033 | ||
| 243 | 229 | 221 | 219 | 213 | 210 | 199 |
Convoluted Air Bellow Spring
086060H-1 ; 120060H-1 ; 188102-AH-1
215120H-1 ；235118H-1 ；235150H-1
260135H-1 ；280126H-1 ；320124H-1
The History of Air Spring
Air springs were born in the mid-19th century and were early used to dampen vibrations in mechanical equipment. Due to its many advantages, air springs are increasingly widely used in trains, automobiles, paper machines, lifting platforms, presses, vibrating conveyors, vibrating screens, air hammers, vibration testing machines, casting machinery, etc. On shock-absorbing, vibration-isolating equipment or instruments. At this stage, air springs are also used on high-speed trains in my country (such as Harmony trains, Beijing-Shanghai high-speed railways, etc.) for shock absorption and shock absorption. The application of washing equipment in developed countries such as Europe and the United States is also a matter of recent years. Continental Air Springs, Firestone Air Springs, High Matt Air Springs, Goodyear Air Springs.
