| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B-131 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Bellow No: | Bellow 131 | Material: | Rubber And Steel |
|---|---|---|---|
| Warranty: | 12 Months | Function: | Reduce Shock |
| Air Fitting: | 1/4 NPTF | Rubber Type: | Natural Rubber |
| Plate Diameter: | 115mm | Product Name: | Air Spring/Air Bellow/Airbag |
| High Light: | Firestone Suspension Air Spring,1/4 NPTF Suspension Air Spring,115mm Plate Diameter Suspension Air Spring |
||
Firestone Air Bellow 131 Suspension Air Spring Gas Hole 1/4 NPTF For Industrial Machine
Product Description
Product Name Air Spring
|
Model Number |
1B-131 |
|
Working Temperature |
-40℃ bis +70℃ |
|
Refer Numbers |
Firestone:Bellow 131 |
|
Failure Testing |
≥3 millions |
|
Technical Data |
Top Cover Plate Diameter:115mm |
|
Bottom Cover Plate Diameter:115mm |
|
|
Gas Hole / Air inlet:1/4NPTF |
|
|
Rubber Bellows MAX Diameter:165mm |
|
|
The Working Stroke:MAX 115 mm to MIN 50 mm |
|
|
Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC |
|
|
Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC |
|
|
Screw Center Distance of Top Cover Plate:44.5mm |
|
|
Screw Center Distance of Bottom Cover Plate:44.5mm |
|
|
Screw And Gas Hole Distance of Top Cover Plate:22mm |
|
|
Notice |
These air suspension bags are aftermarket ones.They will replace the original air spring bags. -Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts. -Instruction isn’t included.Professional installation is recommended. -Contact us please for whatever we can help |
FIRESTONE W01-358-7731 ; FIRESTONE W013587731
FIRESTONE W01/358/7731 ; FIRESTONE w01-358-7731
FIRESTONE w013587731 ; FIRESTONE w01/358/7731
W01-358-7731 ; W013587731 ; W01/358/7731 ; w01-358-7731 ; w013587731 ; w01/358/7731
1B-131 ; Bellow 131 ; Bellow No 131
The air spring is actually an air bag composed of a rubber/wire mesh layer, which can accommodate a certain volume of compressed air cylinders. The rubber bladder itself does not provide force or support the load, but the air cylinder within it bears the load.
GUOMAT air springs are spring airbags manufactured with high technology, with special metal sealing covers designed at both ends. Our company's standard two-wire mesh layer air spring airbag is actually composed of these layers:
•The first layer of fabric reinforced rubber applied
at a specific angle.
•The second layer of fabric reinforced rubber which
is laid to a specific angle to the first layer.
•The cover to protect the bias fabric plies.
Many of our company's air springs also have high-strength constructions that can withstand high pressures. In this case, either four-ply reinforced rubber layer is used, or two layers of special high-strength wire mesh layer, one inner lining and one outer covering layer are used.
Use of GUOMAT Air Spring Shock Absorbers

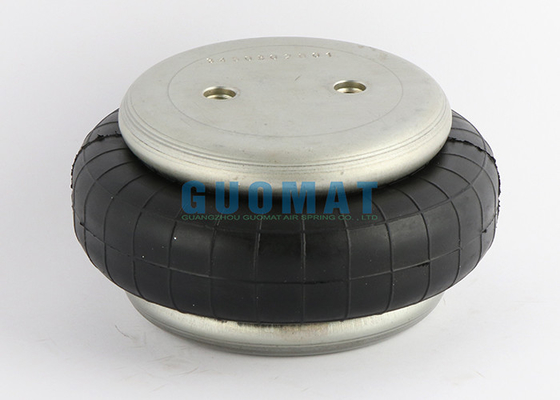

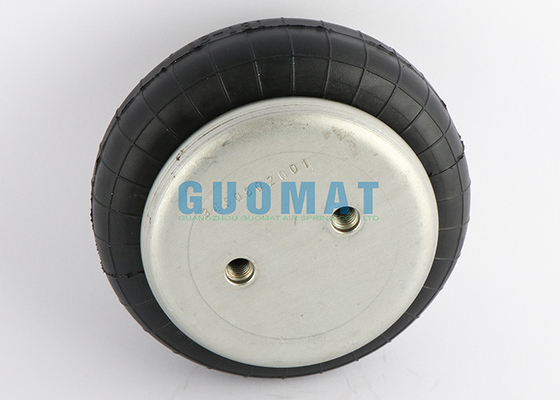

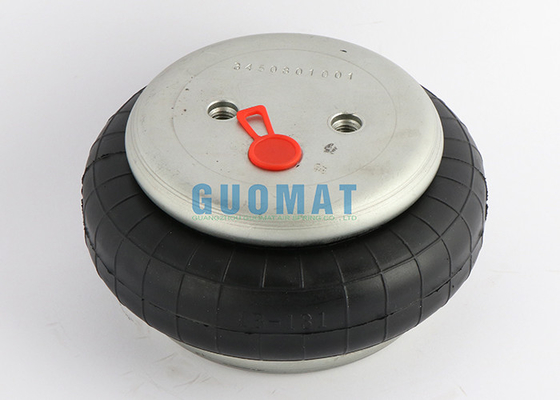

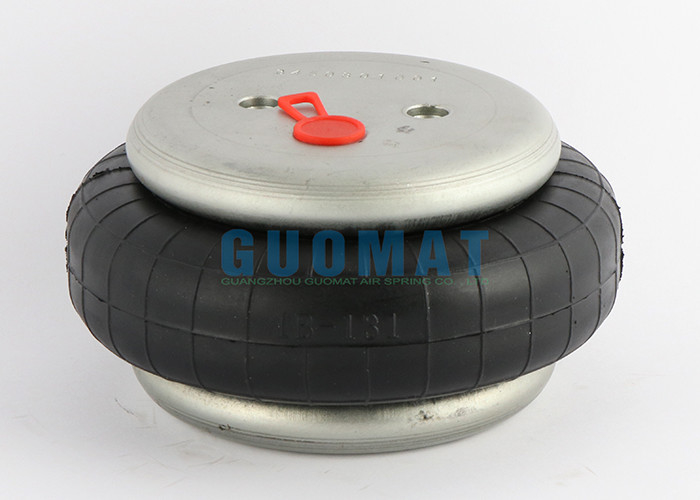

Product Images
