Single Convoluted Industrial Air Spring Contitech FS 40-6 CI With G1/8 Gas Hole
Product Description
|
CONTITECH
|
FS 40-6 1/8 M8
|
|
PHOENIX
|
SP1B04
|
|
WEFORMA
|
WBE100-E1
|
Product Name : Air Spring
Production Place : GuangDong,China
Warranty : 1 Year Warranty
Material : Natural Rubber and Steel
Package : Strong Brown Carton
Scope of Application: Sports Equipment, Precision Instruments,
Experimental Equipment, Test Bench Equipment, etc.
Bearing Range: 50-500KG
GUOMAT Air Spring
The air spring technology is applied to the shock absorption of industrial equipment, which can effectively improve the working efficiency of the equipment and the safe service life of the equipment. Air springs do not have internal operating rods, pistons, or sliding seals like ordinary steel springs, which greatly reduces the cost of using actuation or hydraulic cylinders and wins more economic benefits for customers.
Features: low cost, wide range of specifications; long service life, no maintenance and lubrication, no internal joystick or piston; no friction effect, soft media; bending capacity, side load capacity, compact original height.
FS 40-6 Technical Data
Top Cover Plate Diameter : 90mm
Bottom Cover Plate Diameter : 90mm
Distance Between Screw and Air Hole : 20mm
Center Distance Between Bottom Cover Screws : 20mm
Top Cover Plate Screw (Nut) Tooth : 1XM8X1.25
Bottom Cover Plate Screw(Nut)Tooth : 2XM8X1.25
Gas Hole : G1/8
Rubber Bellow Max Diameter : Max. 145mm
The Working Stroke : MAX 110mm to MIN 50mm
Maximum Height : 110mm
Minimum Height : 50mm
Compression Height : 60mm
OEM Original Equipment Manufacturer
Contitech FS 40-6 CI
Contitech FS 40-6 M8
Contitech FS40-6 CI G1/8
Contitech FS 40-6 CI G1/8 M8
Phoenix SP 1B04
Phoenix SP1B04
Phoenix SP 1B 04
Weforma WBE100-E1
Weforma WBE 100 E1
Weforma WBE 100-E1
Min.pressure------0 bar
Return force to min.height-------≤120N
Overal weight with clamped plates-------------0.9kg
Vibration Isolation - Dynamic Characteristic Values
-------Design Height H :Recommended 90mm,minimum 70mm
|
Pressure P ［bar］
|
3
|
4
|
5
|
6
|
7
|
8
|
Volume V ［I］
|
|
Force (Load) ［KN］
|
1.7
|
2.3
|
2.8
|
3.4
|
3.8
|
4.4
|
0.5
|
|
Spring Rate ［N/cm］
|
760
|
990
|
1220
|
1480
|
1610
|
1820
|
|
Natural Frequency［Hz］
|
3.5
|
3.3
|
3.3
|
3.3
|
3.2
|
3.2
|
Pneumatic Application-Static Characteristic Values
Force (kN)
|
Pressure P ［bar］
|
3
|
4
|
5
|
6
|
7
|
8
|
Volume V ［I］
|
|
Height H ［mm］
|
100
|
1.2
|
1.6
|
2.0
|
2.5
|
3.0
|
3.4
|
0.6
|
|
90
|
1.7
|
2.2
|
2.8
|
3.4
|
3.9
|
4.4
|
0.5
|
|
80
|
2.1
|
2.8
|
3.5
|
4.2
|
4.9
|
5.3
|
0.5
|
|
70
|
2.3
|
3.2
|
3.9
|
4.7
|
5.4
|
6.2
|
0.4
|
|
60
|
2.6
|
3.5
|
4.3
|
5.2
|
6.1
|
6.9
|
0.3
|
Other Single-Layer Air Help Spring
|
GUOMAT Number
|
1B7070
|
1B5010
|
1B1209
|
|
Cross Reference Number
|
Contotech:FS 70-7
Phoenix:SP1B05
B-osch:822419002
Festo:EB-165-65
Weforma:WBE200-E1
|
Firestone:W01-358-7731
|
Firestone:W01-M58-6165
Contitech:FS120-9
Dunlop(FR):8''x1 s08101
B-osch:822419003
Festo:EB-215-80
Norgren:PM/31081,(8x1)
Weforma:WBE300-E1
Airtech:140293
Airtech:140293
Megatech:1S12
|

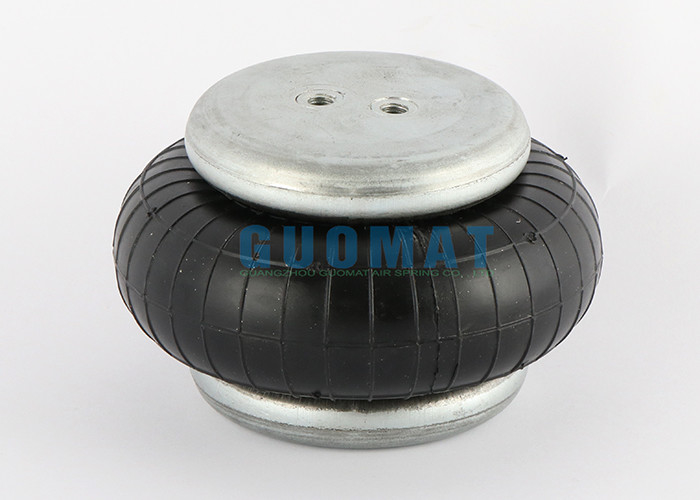

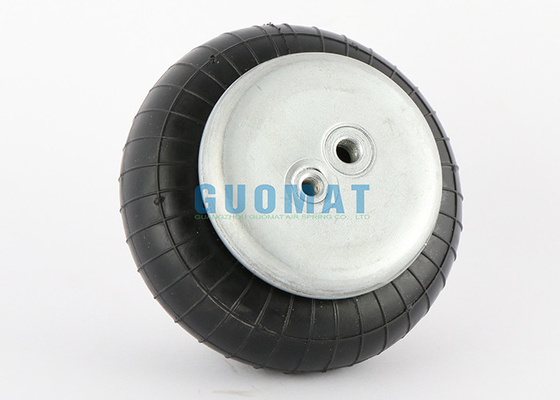

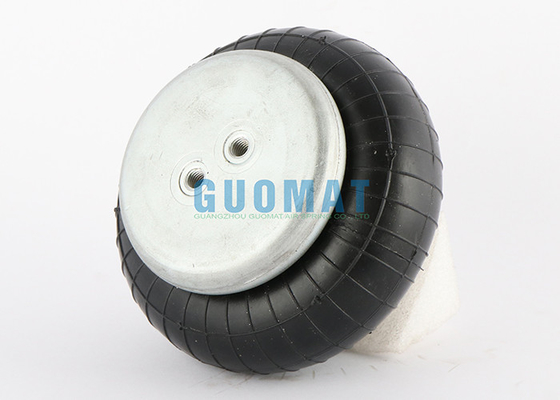

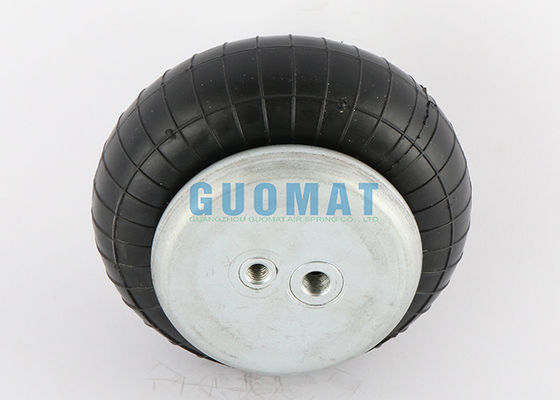

Detailed Pictures of the Product
