Contitech FS 70-7 Rubber Bellow Phoenix SP1B05 Packaging Machinery Suspension Air Spring
|
GUOMAT Number |
1B7070 |
|
Contitech |
FS 70-7 |
|
Phoenix |
SP 1B05 |
|
Bosch |
822419002 |
|
Festo |
EB-165-65 |
|
Weforma |
WBE 200-E1 |
Description : GUOMAT No. 1B7070 is used in industrial equipment . The natural outer diameter of the air spring with small diameter is 145MM.
OEM Number : FS 70-7 / SP 1B05
Model : For Industrial Machine
Material : Rubber Steel
Warranty : One Year
Condition : Brand new
Packing : Neutral Packing Or As Requirement
Delivery : About 2-8 working days after receive your payment.
1B7070 Air Bellow Technical Data
Top Cover Plate Data
Top Cover Plate Diameter : 105mm
Gas Hole : G1/4
Screw Center Distance Of Top Cover Plate : 44.5mm
Top Cover Plate Screw (Nut) Tooth : 2XM8X1.25
Bottom Cover Plate Data
Bottom Cover Plate Diameter : 105mm
Screw Center Distance of Bottom Cover Plate : 44.5mm
Bottom Cover Plate Screw(Nut)Tooth : 2XM8X1.25
Rubber Bellow
The Rubber Bellow MAX Diameter : 165mm
The Working Stroke : MAX 115mm to MIN 50mm
Maximum Height:115mm
Minimum Height:50mm
Compression Height:65mm
Manufacturer Part Number
CONTITECH FS 70-7
CONTITECH FS70-7
CONTITECH fs 70-7
CONTITECH fs70-7
PHOENIX SP1B05
PHOENIX SP 1B05
PHOENIX SP 1B 05
PHOENIX sp 1b05
PHOENIX sp1b05
PHOENIX Sp1b05
BOSCH 822419002
BOSCH 822 419 002
FESTO EB-165-65
FESTO EB/165/65
WEFORMA WBE200-E1
WEFORMA WBE 200-E1
Packaging and Shipping
1. For small orders in stock, we usually ship within 1-8 working days after your payment.
2. If out of stock, we will notify you by email.
3. Our payment terms, subject to availability.
4. Shipping charges may vary by specific weight, volume and address, please contact us for specific shipping charges.
Phoenix Single Convolution Rubber Bellow
|
Item Code |
Max.diameter(mm) |
Max.stroke(mm) |
Max.load(kN) |
Recommended hight |
|
1B49-3 |
465 |
120 |
72.62 |
120 |
|
1B34 |
400 |
125 |
54.14 |
115 |
|
1B22-3 |
340 |
120 |
29.6 |
120 |
|
1B22 |
340 |
120 |
31.22 |
120 |
|
1B20-4 |
290 |
120 |
23.4 |
115 |
|
1B20 |
305 |
120 |
23.8 |
115 |
|
1B12-3 |
248 |
100 |
17.3 |
100 |
|
1B12 |
248 |
100 |
17.3 |
100 |
|
1B07 |
215 |
70 |
13.1 |
85 |
|
1B05 |
165 |
40 |
7.6 |
70 |
|
1B04 |
142 |
60 |
6.0 |
75 |

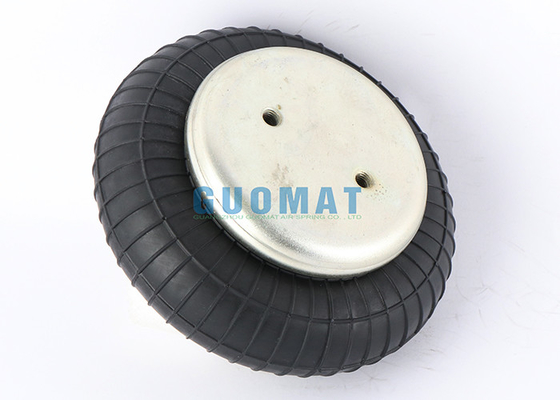

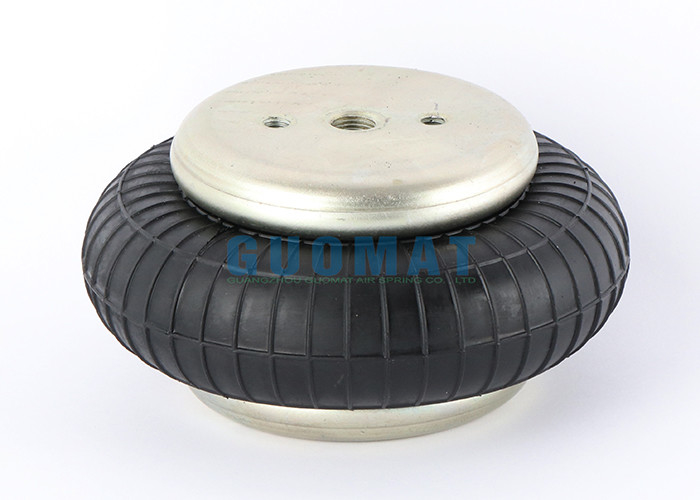

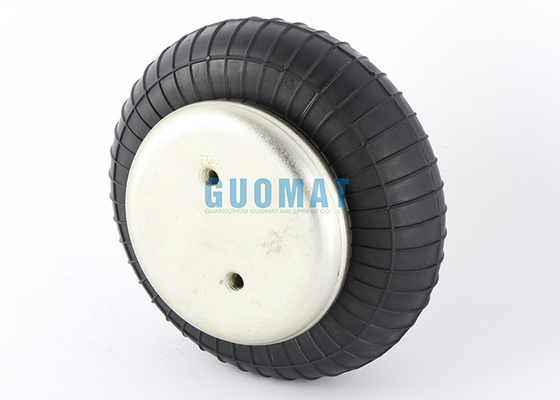

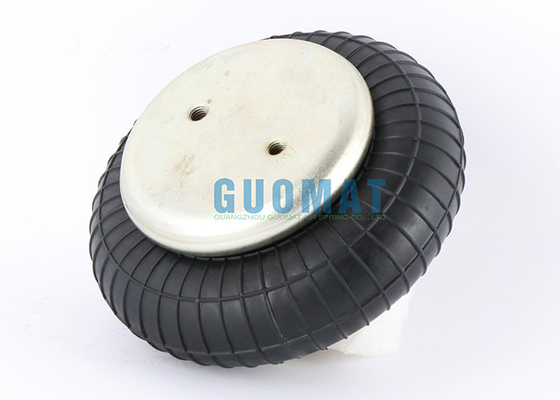

Product Real Picture
