| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B 4.5x1 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Type: | Single Convoluted Air Spring | Material: | Rubber+Steel |
|---|---|---|---|
| Warranty Period: | 12 Months | Gas Hole: | G3/8 |
| Flange Ring: | With Flange Ring | OEM NO.: | SP2334 |
| Spring Weight: | 1.8KG | Other Name: | Air Springs Bellows Actuator 4 1/2 '' X1 DUNLOP Series |
| High Light: | Firestone Single Industrial Air Spring,W01-R58-4050 Industrial Air Spring,Dunlop SP2334 Industrial Air Spring |
||
Firestone W01-R58-4050 Single Industrial Air Spring Dunlop SP2334 4 1/2x1 Suspension Part
Product Parameters
|
Product Name |
Pneumatic Bellows Actuators |
Material |
Rubber ,Steel |
|
Warranty |
12 Months |
Color |
Black |
|
Gas Hole |
3/8 BSP |
Delivery Time |
2-8 working days |
Air Spring 4 1/2''x1 Series OEM Number
GUOMAT Spare Part Number : 1B4.5X1
FIRESTONE Spare Part Number : W01-R58-4050
FIRESTONE Spare Part Number : W01R584050
FIRESTONE Spare Part Number : 4050
FIRESTONE Spare Part Number : W01/R58/4050
FIRESTONE Spare Part Number : WO1-R58-4050
FIRESTONE Spare Part Number : WO1R584050
FIRESTONE Spare Part Number : w01-r58-4050
FIRESTONE Spare Part Number : w01r584050
FIRESTONE Spare Part Number : W01-r58-4050
DUNLOP Spare Part Number : SP 2334
DUNLOP Spare Part Number : SP2334
DUNLOP Spare Part Number : sp 2334
DUNLOP Spare Part Number : sp2334
DUNLOP Spare Part Number : Sp2334
Dunlop Size 4 1/2 X1 Air Bellow With Flange Ring Technical Data
Top Bead Plate
Top Cover Plate Diameter:110mm
Screw Center Distance Of Top Cover Plate:93mm
Top Cover Plate Screw (Nut) Tooth:3x-M6(C'BORE)
Top Cover Plate Screw (Nut) Tooth:3X-M6(C'SINK)
Gas Hole:G3/8
Bottom Bead Plate
Bottom Cover Plate Diameter:110mm
Screw Center Distance Of Bottom Cover Plate:93mm
Bottom Cover Plate Screw (Nut) Tooth:3x-M6(C'BORE)
Bottom Cover Plate Screw (Nut) Tooth:3X-M6(C'SINK)
Rubber Bellow
Rubber Bellow Max Diameter:125mm
Space Required: 140mm
Hmax:90mm
Hmin:50mm
Hstat:65mm
1B4.5x1 Air Spring
Air springs are used to elastically connect machines and equipment that generate shocks and vibrations that are transmitted through the foundation to the environment (e.g. textile machines, conveyor belts, hammers, forging presses, etc.). They are ideal for isolating laboratory instruments from vibration. They can also be used to hang truck trailers and caravans. They are used in pneumatic lifts, for example in auto repair shops. Operation as a single linear air motor is also a common application.
Application advantages: vehicle and cargo protection; reduced tire wear; reduced fuel consumption; low maintenance costs and long service life.
The rubber of the bellows is not resistant to petroleum products (oil, diesel, gasoline, kerosene, etc.). If contaminated with any of these substances, rinse with lukewarm water and dry.
Other 4 1/2 Types of Air Bag
|
Type |
GUOMAT Number |
Number of Convoluted |
Firestone Number |
Dunlop Number |
|
4 1/2x1 |
1B 4.5x1 |
1 |
W01-R58-4043 |
SP 2008 |
|
4 1/2x1 |
1B 4.5x1 |
1 |
W01-R58-4050 |
SP 2334 |
|
4 1/2X2 |
2B 4.5X2 |
2 |
W01-R58-4051 |
SP 2441 |
|
4 1/2X2 |
2B 4.5X2 |
2 |
W01-R58-4076 |
SP 1457 |
|
4 1/2X3 |
3B 4.5X3 |
3 |
W01-R58-4035 |
SP 2895 |

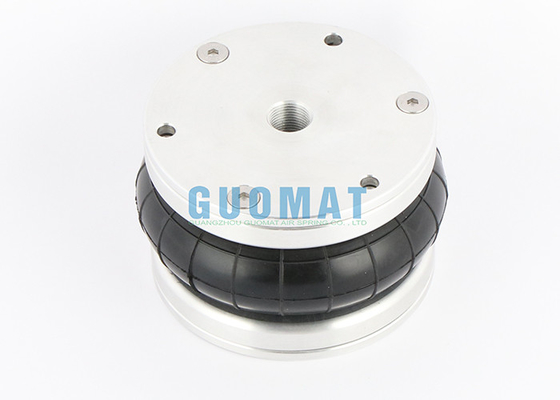

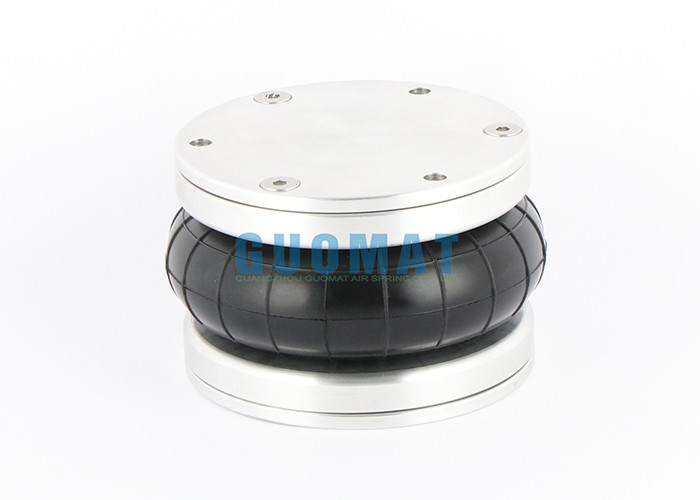

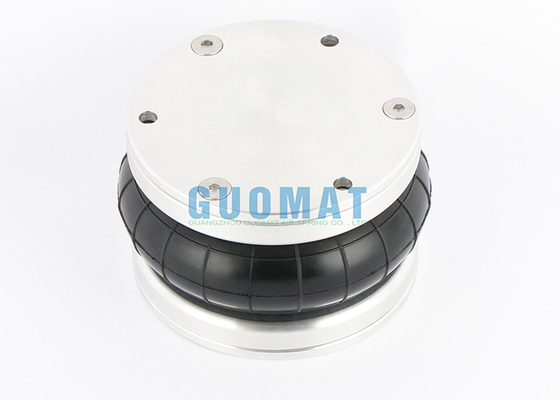

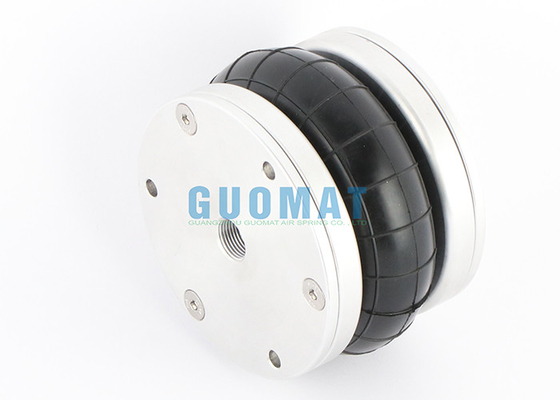

Real Pictures
