| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B 5020 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Shock Absorber Type: | Gas-Filled | Warranty: | 1 Year |
|---|---|---|---|
| Material: | Rubber Bellow And Aluminum Cover | Quality: | 100% Tested |
| Spare Part Number: | 2B-181 | Package: | Carton/Cartons |
| Color: | Black | Function: | Reduce Shock |
| High Light: | FD120-17 Contitech Rubber Air Spring,Rubber Air Spring 2B-181,Gas Filled Rubber Air Spring |
||
FD120-17 Contitech Double Convoluted Rubber Air Spring Airkraft 2B-181 For Punch Machine
Product Description
| Item Number | 2B5020 | Material | Rubber and Steel |
| Warranty | 12 Months | Package | Carton |
| MOQ | 1 Pcs | Brand | GUOMAT or Neutral |
| Contitech | FD 120-17 | Airkraft | 113053 |
Contitech FD120-17 / Contitech FD 120-17 / Contitech Fd120-17 / Contitech Fd 120-17
Airkraft 113053 / Airkraft 113 053 / Airkraft 2B-181
Technical Parameter
Structure: Double air springs
Entrance: G3/4
Air Spring Travel: 130mm
Air Spring Diameter: 215mm
Mounting Diameter: 230mm
Cover diameter: 135mm
Minimum height: 75mm
Recommended height: 190mm
Maximum height: 230mm
Working pressure: 0-8bar
Force (load) at 6bar: 8000N
Working temperature: -40℃+70℃
Top Cover Plate Screw(Nut) Tooth:2XM8X1.25
Bottom Cover Plate Screw(Nut) Tooth : 2XM8X1.25
Screw Center Distance of Top Cover Plate:70mm
Screw Center Distance of Bottom Cover Plate:70mm
Purchase Order Data
Min.pressure 0bar
Return force to min.height ≤200N
Overall weight with clamped plates 2.3Kg
Vibration isolation-dynamic characteristic values
Design height H:recommended 190mm,minimum 175mm
| Pressure P ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | VoI.［I］ |
| Force ［Load］ ［KN］ | 3.8 | 5.2 | 6.5 | 8.0 | 9.3 | 10.6 | 3.2 |
| Spring Rate ［N/CM］ | 600 | 830 | 1060 | 1290 | 1520 | 1750 | |
| Natural Frequency ［HZ］ | 2.1 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
Pneumatic application-static characteristic values
Force F (kN)
| Pressure P | ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | VoI.［I］ |
| Height H(mm) | 200 | 3.4 | 4.8 | 5.9 | 7.3 | 8.5 | 9.7 | 3.4 |
| 180 | 4.2 | 5.7 | 7.1 | 8.6 | 10.1 | 11.5 | 3.1 | |
| 160 | 4.9 | 6.5 | 8.1 | 9.9 | 11.5 | 13.1 | 2.8 | |
| 140 | 5.5 | 7.2 | 9.1 | 11.0 | 12.7 | 14.5 | 2.4 | |
| 120 | 6.0 | 7.9 | 9.9 | 12.0 | 14.0 | 15.8 | 2.1 | |
| 100 | 6.4 | 8.5 | 10.7 | 12.9 | 15.1 | 17.0 | 1.6 | |
| 80 | 6.8 | 9.1 | 11.3 | 13.7 | 16.0 | 17.9 | 1.2 |
Air springs are widely used in road, railway vehicles, large and medium-sized paper machinery, paper industry, mining machinery, sewage treatment, medical machinery, environmental protection washing and many other equipment. For example, the air suspension system of the car uses the air spring as the elastic element, and uses the compressibility of the gas to achieve its elastic effect - the air pressure of the compressed gas can be automatically adjusted with the change of load and road conditions, no matter full load or no load, The height of the whole vehicle will not change, which can greatly improve the ride comfort.

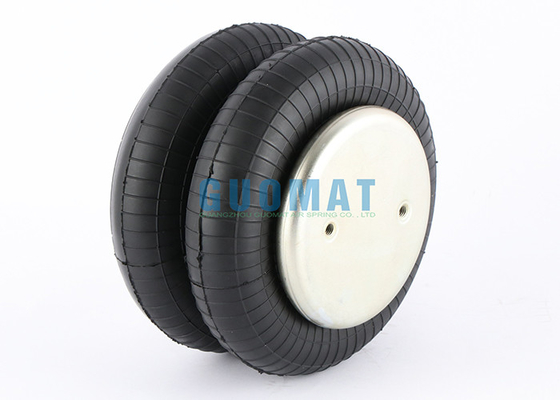

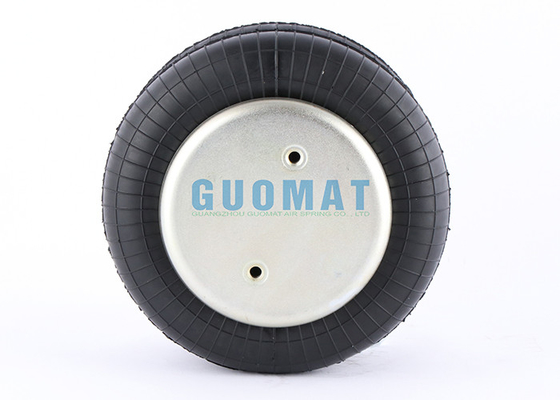

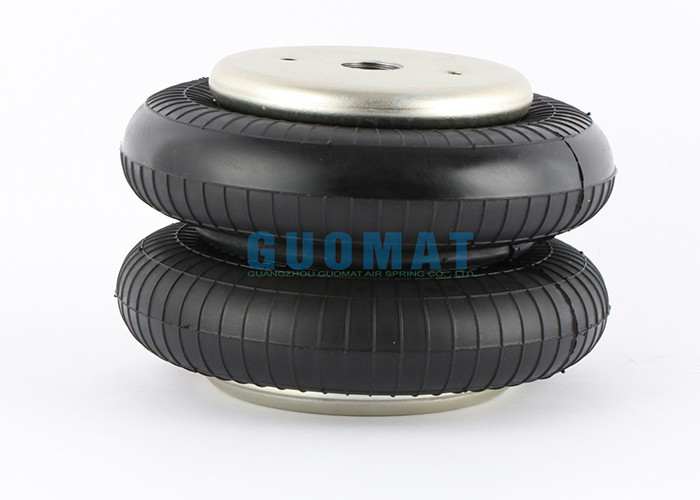

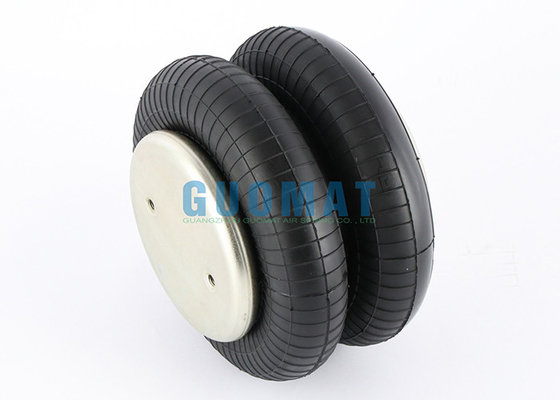

Product Image
