2B12-425 Industrial Air Spring W01-358-7180 Firestone Air Convoluted Rubber Bellows

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	W01-358-7180

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Double Convoluted Air Spring	Material:	Rubber+Steel
Warranty:	One Year	Contitech:	FD 330-22 363
SAF Holland:	57007180	Package:	Carton Packing
Airhole:	1/4NPTF	Working Stroke:	81mm~305mm
Highlight:	2B12-425 Industrial Air Spring , W01-358-7180 Industrial Air Spring , Air Convoluted Industrial Air Spring

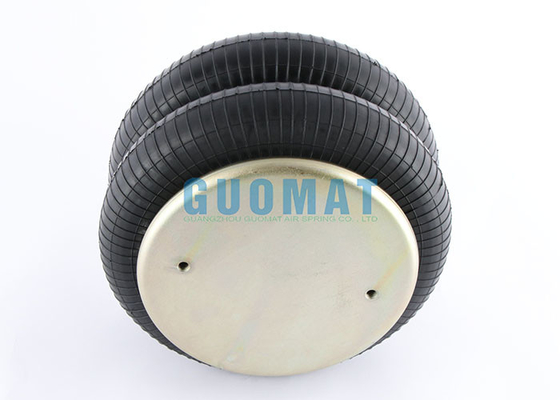

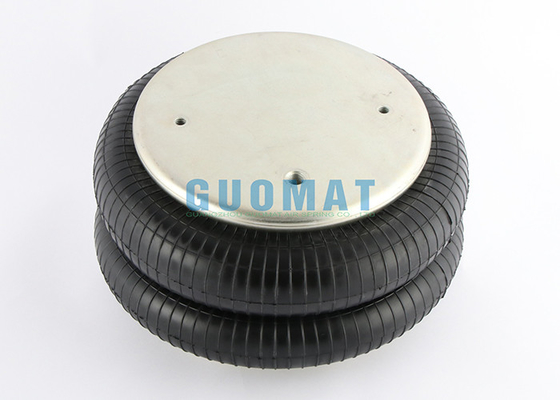

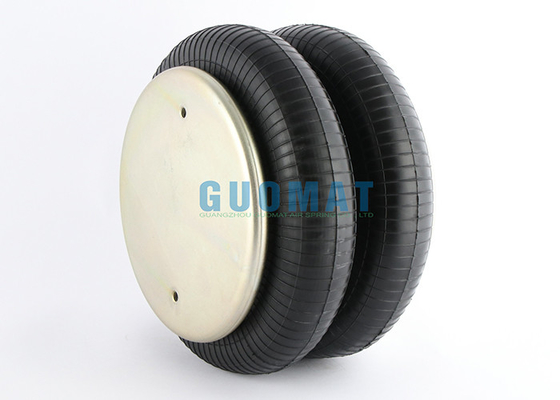

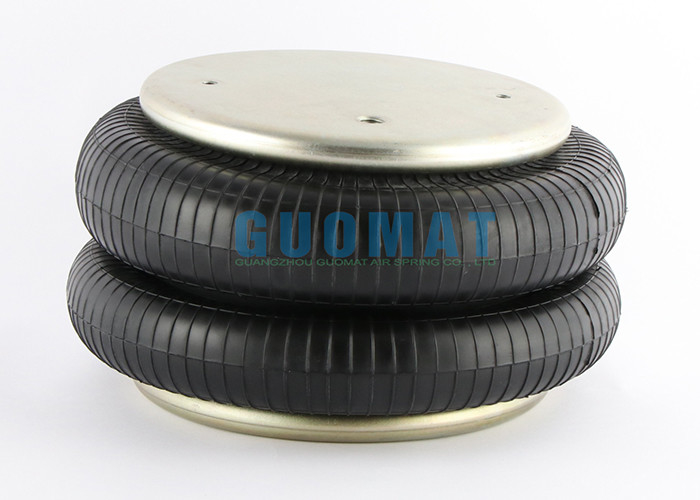

W01-358-7180 Firestone Air Convoluted Rubber Bellows 2B12-425 Industrial Air Spring

Product Description

Air Spring
Firestone W01-358-7180
Double Convoluted
Blind Nut
Spring Rubber Bellows
12 Months Warranty
Fast Delivery
Factory Price

Reference Number

Firestone	W01-358-7180/22	Contitech	FD330-22 363
Contitech	FD 330-22 363	Peerless	055000001
Goodyear	2B12-425/311	Ridewell	1003587180C
Goodyear	578923309	Watson&Chalinl	AS01541G/01881F
Triangle	6316/4363	Navistar	1685179C1
Airkraft	115061/3B-356	Hendrickson	1VA1816
Vibracoustic	VSP2B22R7180	SAF Holland	57007180
EI Ride	8030190	Goodyear	2B12-425/
Leland	Sc2075	Goodyear	578923309
Navistar	1685179C1	Triangle	6316/4363
Hendrickson	1VA1816	Airkraft	115061/3B-356
Ridewell	1003587180C	Vibracoustic	VSP2B22R7180
SAF Holland	57007180	Leland	Sc2075
Watson&Chalinl	AS01541G/01881F	EI Ride	8030190
Peerless	055000001	Firestone	W013587180

Goodyear Air Spring Technical Data

Working Temperature : -40℃ bis+70℃

Failure Testing ≥3 millions

Top Cover Plate Diameter : 231mm

Bottom Cover Plate Diameter : 231mm

Gas Hole / Air inlet : 1/4 NPTF

Rubber Bellows MAX Diameter : 325mm

The Working Stroke : MAX 305 mm to MIN 81 mm

Top Cover Plate Screw (Nut) Tooth : 2X3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth : 2X3/8-16UNC

Screw Center Distance of Top Cover Plate : 157.5mm

The Distance Between the Air Holes and the Screw of Top Cover Plate : 73mm

Screw Center Distance of Bottom Cover Plate : 157.5mm

Style NO.22D Firestone Double Convoluted Air Spring

Style	OEM Number		Interchange Number
22D	FIRESTONE	W01-358-7180	HENDRICKSON NA	1816
22D	FIRESTONE	W01-358-7400	SCANIA	670199
22D	FIRESTONE	W01-358-7400	FREIGHTLINER	16-10769-000
22D	FIRESTONE	W01-358-7400	NEWAY	90557018
22D	FIRESTONE	W01-358-7400	NEWAY	90557016
22D	FIRESTONE	W01-358-7403	HENDRICKSON NA	1060
22D	FIRESTONE	W01-358-7411	SCANIA-BUS	411726
22D	FIRESTONE	W01-M58-6381	SCHULZ	Lift axle
22D	FIRESTONE	W01-M58-6381	LECITRAILER	Lift axle
22D	FIRESTONE	W01-M58-6851	BPW	02.200.21.90.0
22D	FIRESTONE	W01-M58-6851	ISTANBUL FRUEHAUF	Lift axle
22D	FIRESTONE	W01-M58-7524	KASSBOHRER	4.731.006.000
22D	FIRESTONE	W01-M58-7524	TERBERG	21060123
22D	FIRESTONE	W01-M58-7524	SAF HOLLAND	3.228.1001.00
22D	FIRESTONE	W01-M58-7524	SAF HOLLAND	3.229.1001.00
22D	FIRESTONE	W01-M58-7524	GIRELLI	590530
22D	FIRESTONE	W01-M58-7524	IVE-CO	98460983
22D	FIRESTONE	W01-M58-7524	SAURER	9534175010/20
22D1.5	FIRESTONE	W01-358-7447	HENDRICKSON NA	1827
22D1.5	FIRESTONE	W01-681-7688	GRANNING	1218
22D1.5	FIRESTONE	W01-M58-6875	ROR	21226068
