| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B7070 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Spring Type: | Single Convoluted Rubber Bellow Air Spring | Main Material: | Natural Rubber |
|---|---|---|---|
| Warranty: | 12 Months | OEM Number: | 822419002 |
| Package: | Carton/Cartons | Packing Size: | 24*24*24 (cm) |
| Contitech: | FS 70-7 | Pressure Ability: | 0.2-0.8 M PA |
| High Light: | Single Rubber Bellow Air Spring,EB-165-65 Bellow Air Spring,Single Convoluted Rubber Bellow Air Spring |
||
FS 70-7 Contitech EB-165-65 Festo Single Rubber Bellow Air Spring For Industrial Platform
Product Description
Item Name : Air Springs Bag
Model Number : 1B7070
Warranty: Factory Warranty One Year
Material : High-Quality Rubber
MOQ : 1 pc
Shipping Package: Neutral Brown Carton
Place of Origin : China
Application : For Industrial Equipment.
Other Name : Single Air Spring
Cross Information
|
Contitech |
FS70-7 |
|
Contitech |
FS 70-7 |
|
Contitech |
fs70-7 |
|
Contitech |
fs 70-7 |
|
Contitech |
FS707 |
|
Phoenix |
SP1B05 |
|
Phoenix |
SP 1B05 |
|
Phoenix |
SP1B 05 |
|
Phoenix |
sp1b05 |
|
Bosch |
822419002 |
|
Bosch |
822 419 002 |
|
Festo |
EB-165-65 |
|
Festo |
EB 165 65 |
|
Festo |
EB16565 |
|
Weforma |
WBE 200-E1 |
|
Weforma |
WBE 200 E1 |
|
Weforma |
WBE200E1 |
CONTITECH FS 70-7 CI
CONTINENTAL FS 70-7
CONTITECH fs 70-7 ci 1/4 npt
CONTITECH FS 70-7 CI ECO
CONTITECH FS 70-7 CI 1/4 NPT
CONTITECH FS 70-7 CI 1/4 NPT(CA)
SP 1B05 Phoenix Air Bags Technical Parameters
|
Spring Weight |
2.65 Pounds |
|
Top Cover Plate |
105mm |
|
Bottom Cover Plate |
105mm |
|
Top Cover Studs |
M8X1.25 |
|
Number of Top Cover Studs |
2 Pieces |
|
Bottom Cover Studs |
M8X1.25 |
|
Number of Bottom Cover Studs |
2 Pieces |
|
Air Inlet/Gas Hole |
G1/4 |
|
Top Cover Screw Center Distance |
44.5mm |
|
Bottom Cover Screw Center Distance |
44.5mm |
|
Location of the Gas Hole |
Top cover center |
|
Measurement D Max |
165mm |
|
Deflection (Height Min) |
50mm |
|
Deflection (Height Max) |
115mm |
|
Working Stroke |
65mm |
|
Space Required |
180mm |
| Loading Cap at 3.1bar | 2.98kN |
| Loading Cap at 7.0bar | 6.28kN |
What is the role of the air spring in industrial equipment?
Air spring is a kind of accessories that can support, buffer, adjust height and angle.
The end structures of the existing convoluted air springs can be divided into three types according to the connection method:
1. For the fixed flange connection type, the edge size of both ends of the air spring is equal to or smaller than the maximum outer diameter of the curved bag. After drilling a few holes, use the flange ring and the end plate to fasten the connection;
2. Looper flange connection type, the edge size of both ends of the air spring is smaller than the maximum outer diameter of the curved bag, no drilling is required, and a special flange ring and a common end plate are used to fasten the connection;
3. Self-sealing type, without flange connection, press into the end plate, and fill with compressed air to seal itself.
Air springs are used in industrial equipment to reduce the noise generated by industrial equipment, ease the vibration of industrial equipment, and effectively improve the working efficiency of the equipment and the safe service life of the equipment.
GUOMAT NO. 1B7070 Detailed Drawings

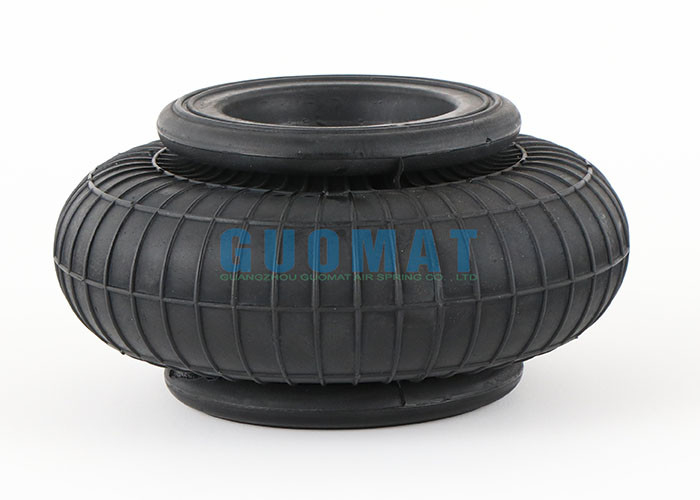

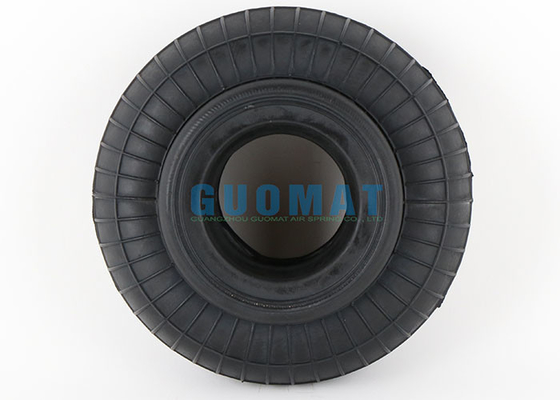

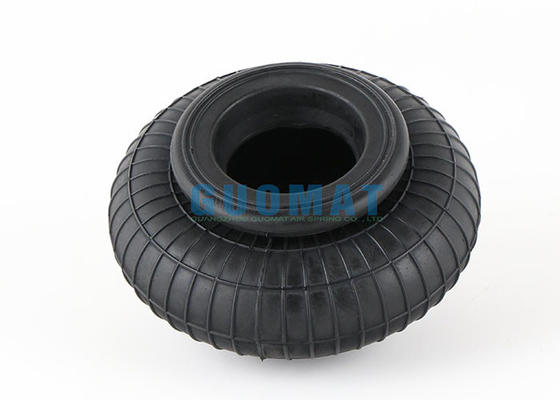

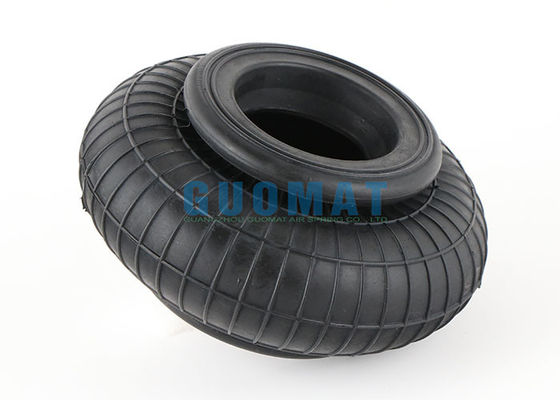

GUOMAT NO. 1B7070 Real Pictures
